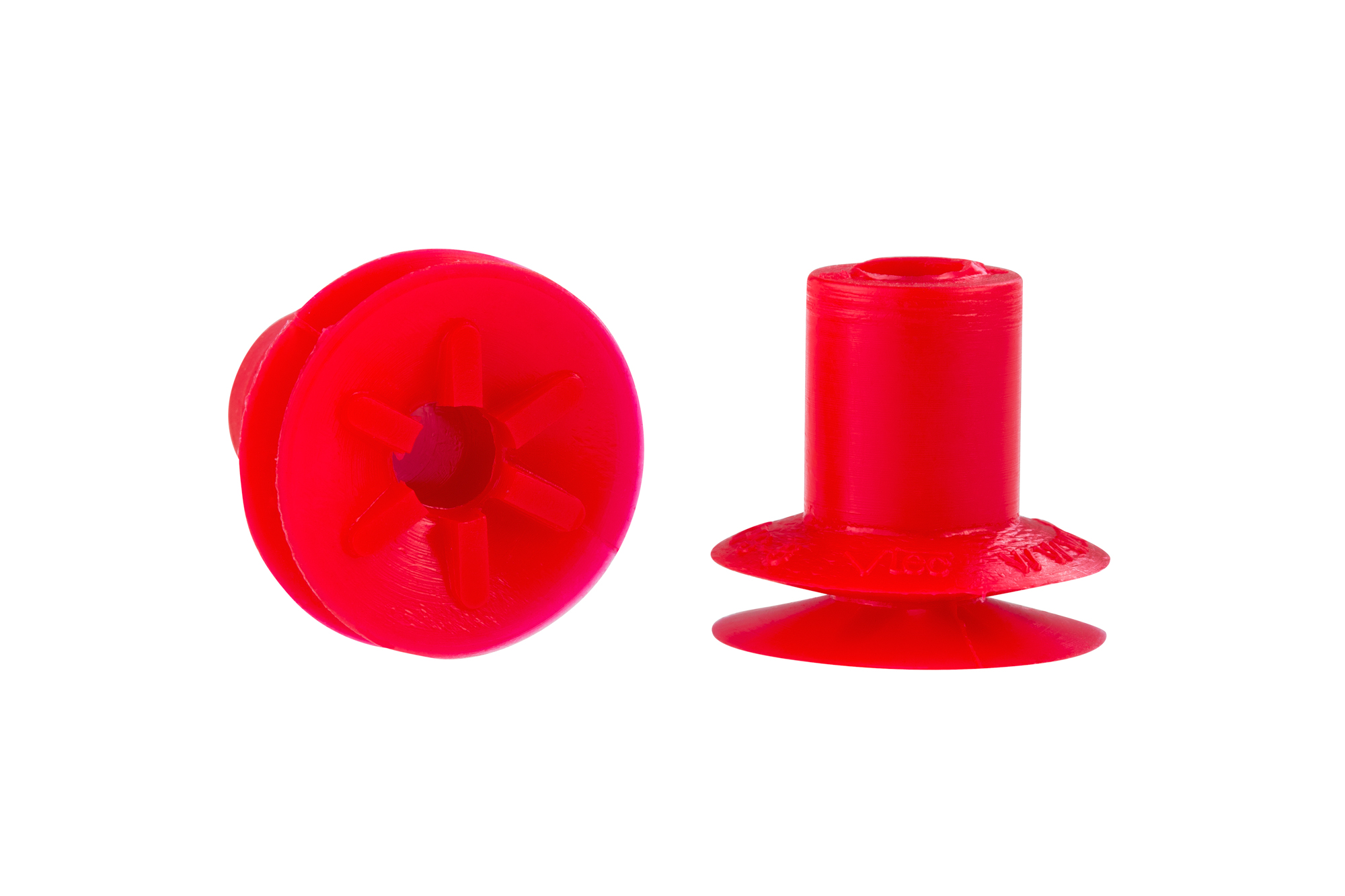

KPS-8 series
Description
Features and Strengths:
Examples of use:
Build an Order #
1. Suction Cup
| Part Number | Description |
| KPS-8-S | Plastic bag opening cup, 22 mm, Silicone |
| KPS-8-WS | Plastic bag opening cup, 22 mm, White silicone |
| KPS-8-WS(FDA) | Plastic bag opening cup, 22 mm, White silicone (FDA) |
| KPS-8-HS | Plastic bag opening cup, 22 mm, High-temp silicone |
Specifications
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 22.5 | 1.4 | 0.5 | 1.15 | 1.25 |
2. Weight
| Part Number | Description | Weight (g) |
| KPS-8-S | Plastic bag opening cup, 22 mm, Silicone | 2.33 |
| KPS-8-WS | Plastic bag opening cup, 22 mm, White silicone | 2.34 |
| KPS-8-WS(FDA) | Plastic bag opening cup, 22 mm, White silicone (FDA) | 2.34 |
| KPS-8-HS | Plastic bag opening cup, 22 mm, High-temp silicone | 2.39 |

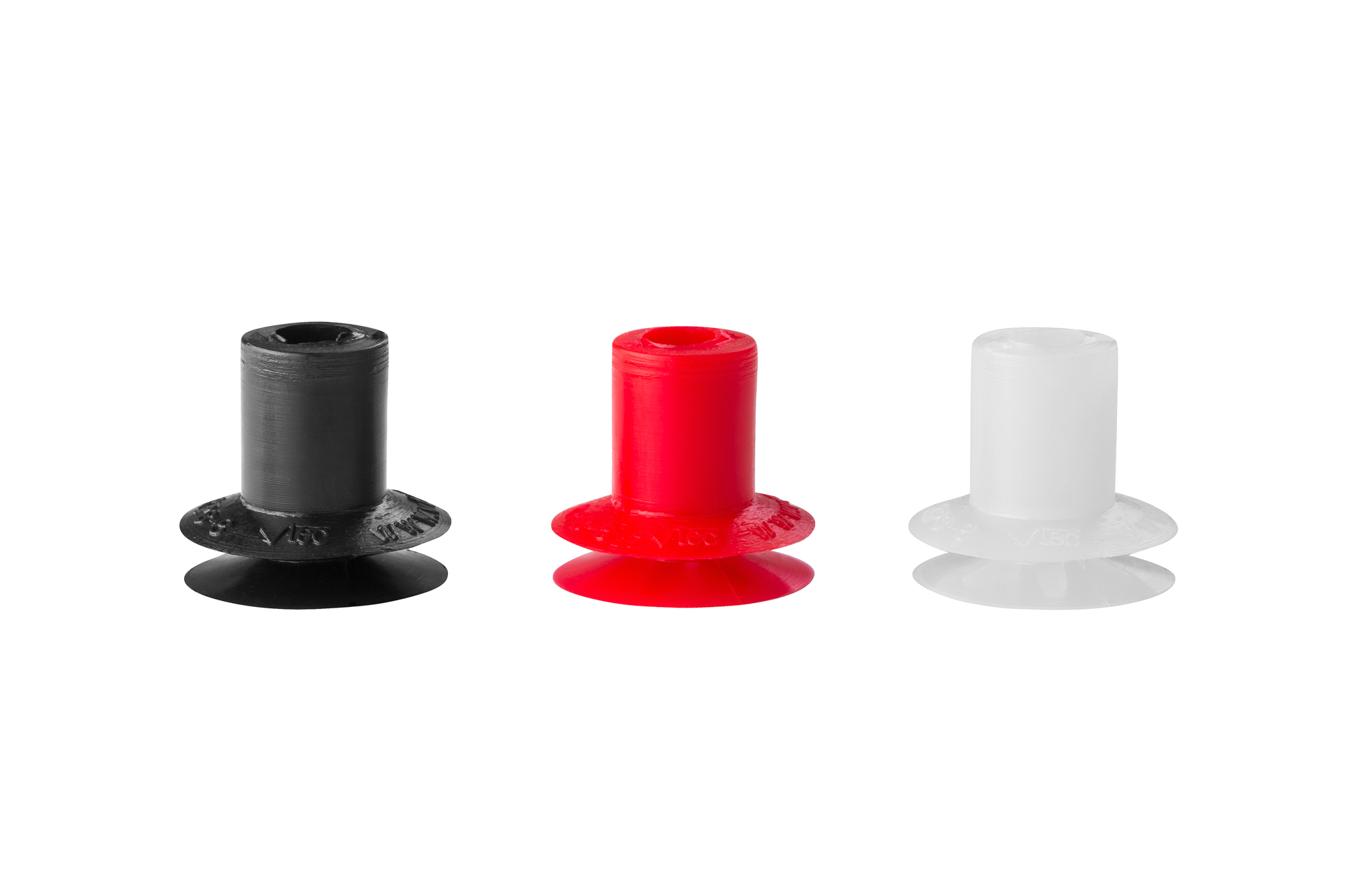

3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
Dimensions
KPS-8
|
|
| Unit: mm |
| Legend | A | B | C |
| Dimension | 22.5 | 23.5 | 21 |
Order Numbers
Spare Parts
| Part Number | Description |
| KPS-8-S | Plastic bag opening cup, 22 mm, Silicone |
| KPS-8-WS | Plastic bag opening cup, 22 mm, White silicone |
| KPS-8-WS(FDA) | Plastic bag opening cup, 22 mm, White silicone (FDA) |
| KPS-8-HS | Plastic bag opening cup, 22 mm, High-temp silicone |
Downloads
Catalog & CAD files| CAD 2D File | |
| KPS-8 |
|
|---|---|
| CAD 3D File | |
| KPS-8 |
|
| Catalog | |
| KPS-8 |
|
