Accessories/ components for Magic Grippers: T-slotted aluminum profiles (T06/08 series), Connectors, Fittings “A” and Fittings “B”.
-
VMECA’s innovative Magic Grippers (MV-Series) with their compact design and closer mounting centres maximise the surface area for vacuum handling.
– High vacuum flow rate – with up to 4 cartridges
– High performance generator achieving up to -87 kPa
– Available with non-return check valve function
– Both magic vacuum cup and standard threaded suction cup mounts are available
– Manifold type (with bracket) and robot mounted flange available
– Vertical design allowing for closer mounting centres
– Integrated vacuum switch port and blow release port
– 45% reduced volume – against MC10 Magic Gripper
– Light weight and compact design -
VMECA’s innovative Magic Grippers (MV-Series) with their compact design and closer mounting centres maximise the surface area for vacuum handling.
– High vacuum flow rate – with up to 4 cartridges
– High performance generator achieving up to -87 kPa
– Available with non-return check valve function
– Both magic vacuum cup and standard threaded suction cup mounts are available
– Manifold type (with bracket) and robot mounted flange available
– Vertical design allowing for closer mounting centres
– Integrated vacuum switch port and blow release port
– Light weight and compact design -

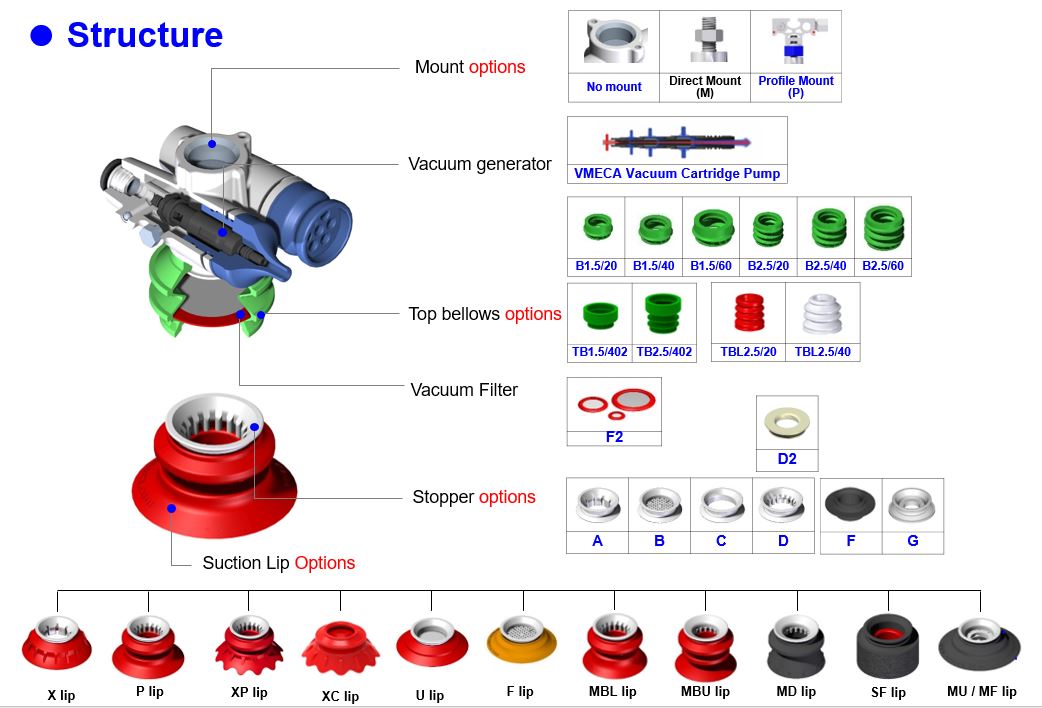

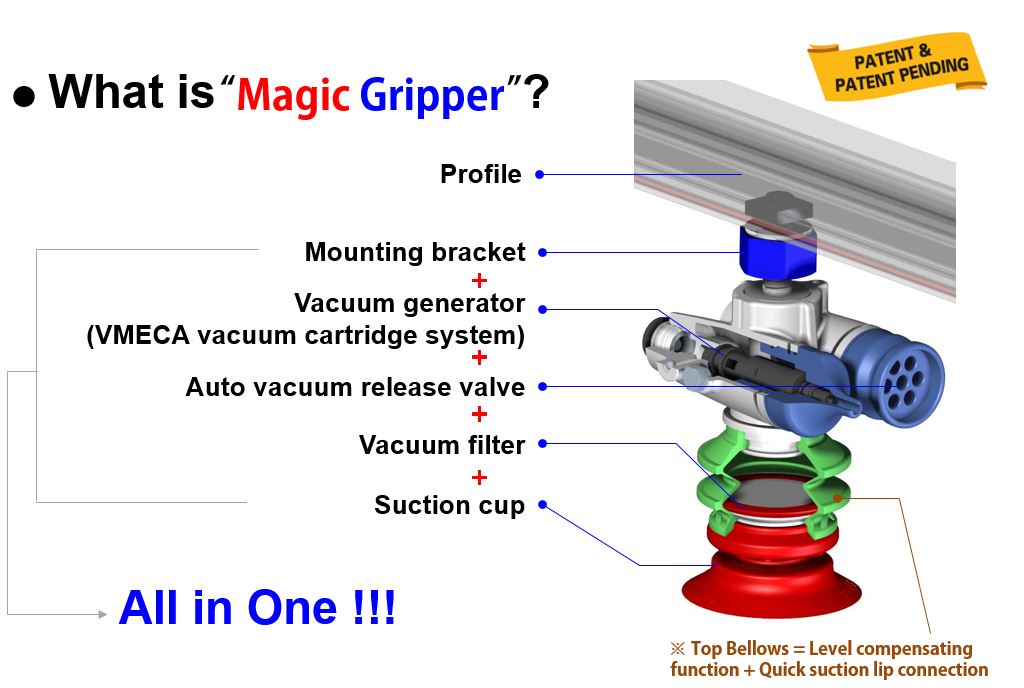

The MC10 series, Magic Gripper, is a vacuum generator with VMECA micro 2-stage vacuum cartridge installed. The Magic Grippers are a general-purpose, all-in-one vacuum system that covers most applications. The Magic Gripper has eliminated the need to purchase separate fittings, connection hoses, filters, and suction cups as they come as a one-piece standard.
– Max Vacuum Level: -83 kPa
– Open Vacuum Flow: 14 Nl/min
– Air Consumption: 9.9 Nl/min @ 2.2 bar
– Micro 2-stage vacuum cartridge installed
– Top Bellows: 20 mm, 40 mm
– Available Type: A, B, C, D -
The MC20 series, Magic Gripper, is a vacuum generator with VMECA mini 2-stage vacuum cartridge installed. The Magic Grippers are a general-purpose, all-in-one vacuum system that covers most applications. The Magic Gripper has eliminated the need to purchase separate fittings, connection hoses, filters, and suction cups as they come as a one-piece standard.
– Max Vacuum Level: -92 kPa
– Open Vacuum Flow: 42.2 Nl/min
– Air Consumption: 32 Nl/min @ 4 bar
– Mini 2-stage vacuum cartridge installed
– Top Bellows: 40 mm, 60 mm
– Available Type: A, B, C, D -
The MC23 series, Magic Gripper, is a vacuum generator with VMECA mini 3-stage vacuum cartridge installed. The Magic Grippers are a general-purpose, all-in-one vacuum system that covers most applications. The Magic Gripper has eliminated the need to purchase separate fittings, connection hoses, filters, and suction cups as they come as a one-piece standard.
– Max Vacuum Level: -91 kPa
– Open Vacuum Flow: 85 Nl/min
– Air Consumption: 32 Nl/min @ 4 bar
– Mini 3-stage vacuum cartridge installed
– Top Bellows: 40 mm, 60 mm
– Available Type: A, B, C, D -
The MC25 series, Magic Gripper, is a vacuum generator with VMECA mini premium 2-stage vacuum cartridge installed. The Magic Grippers are a general-purpose, all-in-one vacuum system that covers most applications. The Magic Gripper has eliminated the need to purchase separate fittings, connection hoses, filters, and suction cups as they come as a one-piece standard.
– Max Vacuum Level: -94.5 kPa
– Open Vacuum Flow: 146 Nl/min
– Air Consumption: 83.5 Nl/min @ 6 bar
– Mini premium 2-stage vacuum cartridge installed
– Top Bellows: 40 mm, 60 mm
– Available Type: A, B, C
