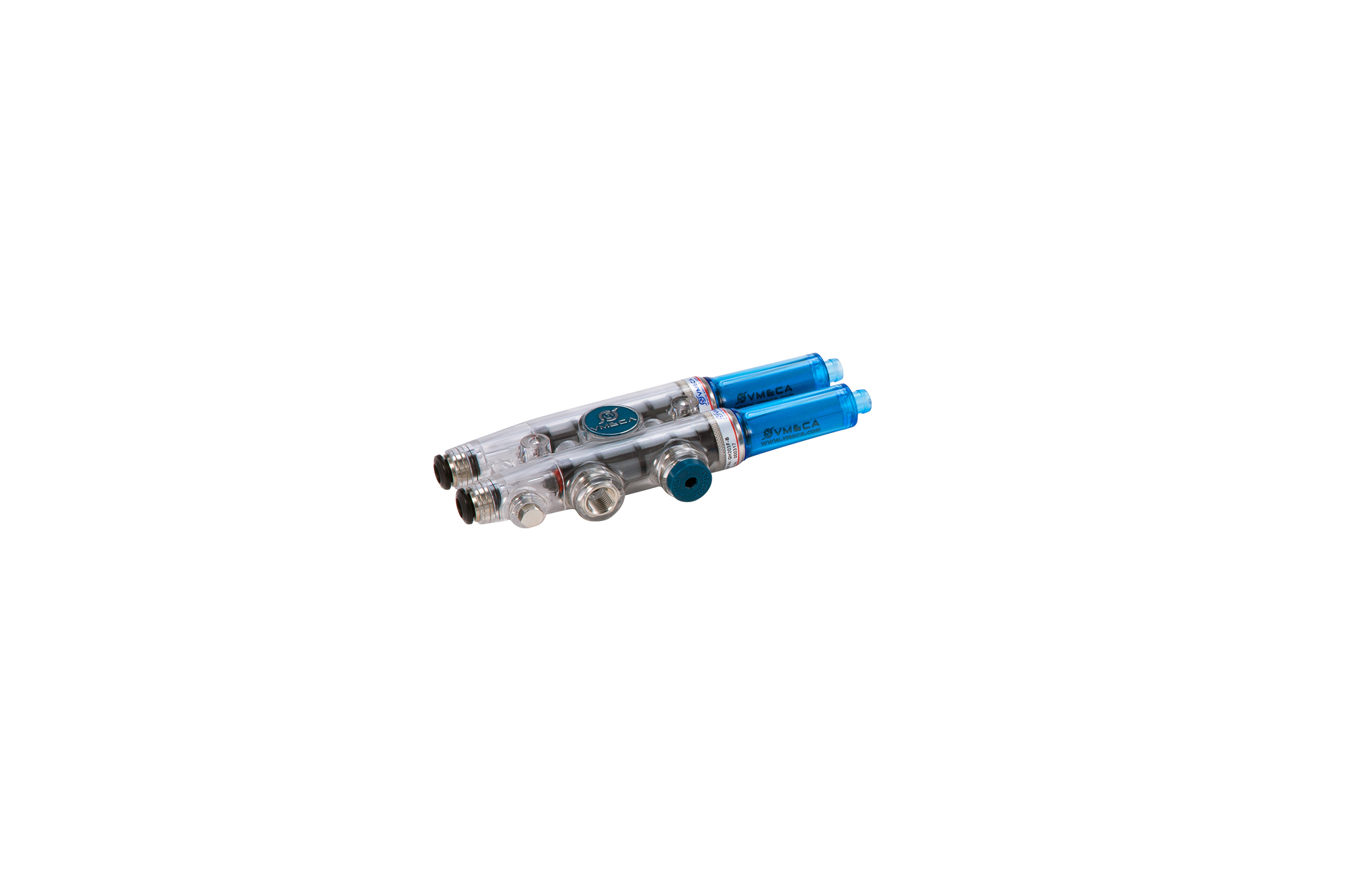

GH252-B
Description
VMECA Green Pumps are excellent for products that are placed in sterile conditions. With its eco-friendly and dust filtering functions, it is perfect for the food industry and alike.
Build a Model #
1. Basic Model
| Symbol | Description |
| GH252 | Green pump, Dual generator, Mini premium 2-stage cartridge, No vacuum filter |
2. Body Type
| Symbol | Description |
| B | Transparent body |
3. Non-return valve
| Symbol | Description |
| Blank | No non-return valve |
| N | Non-return valve |
4. Sealing Material
| Symbol | Description |
| Blank | NBR sealing material |
| V | Viton sealing material |
| E | EPDM sealing material |
Specifications
1. General Specifications
| Max Vacuum Level | -94 kPa |
| Open Vacuum Flow | 226 Nl/min |
| Feed Pressure | 5 ~ 6 bar (Max 7 bar) |
| Air Consumption | 167 Nl/min @ 6 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight | 95 g |
2. Vacuum Flow
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Max Vacuum | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 94 | 5.5 | 226 | 182 | 138 | 96 | 60 | 52 | 44 | 34 | 22 | 5.6 |
| 93.5 | 6 | 222 | 194 | 153 | 108 | 68 | 50 | 42 | 32 | 19 | 4.6 |
| 90 | 5 | 224 | 170 | 126 | 86 | 74 | 54 | 44 | 34 | – | – |
3. Evacuation Time
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 5.5 | 154 | 0.018 | 0.065 | 0.12 | 0.20 | 0.27 | 0.43 | 0.60 | 0.80 | 2.50 |
| 6 | 167 | 0.017 | 0.04 | 0.06 | 0.065 | 0.16 | 0.41 | 0.58 | 0.88 | 2.90 |
| 5 | 141 | 0.019 | 0.075 | 0.14 | 0.24 | 0.30 | 0.47 | 1.04 | 1.41 | 2.42 |
Dimensions
| GH252: |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, ∅8mm |
| 2 | Vacuum Port, G1/8″ |
| 2-1 | Vacuum Port, M5 |
| 3 | Exhaust Port |
Order Numbers
1. Basic Vacuum Pump
| Part Number | Description |
| GH252-B | Green pump, Dual generator, Mini premium 2-stage cartridge, Transparent body |
2. Vacuum Cartridge
| Part Number | Description |
| VC252-G | Mini premium 2-stage vacuum cartridge (for Green pump) |
3. Silencer
| Part Number | Description |
| VTS-M25-252 | Silencer, M25, male |
