MC102
Description
The MC100 series is a micro vacuum pump with a built-in VMECA Micro-Cartridge that provides stable vacuum levels and flow. This pump is designed for stackable and individual vacuum generators. Especially, all the components needed for a vacuum system are integrated so there is no need for any additional vacuum components.
Build a Model #
1. Base Model
| Symbol | Description |
| MC102 | Micro pump, 2-stage cartridge, Plug |
2. Body type
| Symbol | Description |
| S | Single unit |
| M2 | 2-Stacked vacuum pumps |
| M4 | 4-Stacked vacuum pumps |
| M6 | 6-Stacked vacuum pumps |
| M8 | 8-Stacked vacuum pumps |
| M10 | 10-Stacked vacuum pumps |
3. Air Control Valve
| Symbol | Description |
| Blank | No air control valve – Only for single unit /option 2 |
| A | Normal closed (NC) air & vacuum release control valves |
| B | Normal closed (NC) air control valve |
4. Vacuum Switch
| Symbol | Description |
| Blank | No vacuum switch |
| C | LED Vacuum Switch, No analog supply, M8-3-pins connector, NPN |
| PC | LED vacuum switch, No analog supply, M8-3-pins connector, PNP |
| G | LED vacuum switch, No analog supply, 3 m lead wire, NPN |
| PG | LED vacuum switch, No analog supply, 3 m lead wire, PNP |
| V11N | Digital vacuum switch, Analog supply, 30 cm lead wire, NPN |
| V11P | Digital vacuum switch, Analog supply, 30 cm lead wire, PNP |
5. Sealing Materail
| Symbol | Description |
| Blank | NBR sealing material |
| V | Viton sealing material |
| E | EPDM sealing material |
Specifications
1. General Specifications
| Max Vacuum Level | -83 kPa |
| Open Vacuum Flow | 16.5 Nl/min |
| Feed Pressure | 1.2 ~ 2.6 bar (Max 7 bar) |
| Temperature | -20 ~ 80 ℃ |
| Noise Level | 50 ~ 60 dB |
| Weight – Basic Pump | 14.1 g / Single unit |
2. Vacuum Flow
| Max Vacuum Level | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 80 | 2.6 | 16.5 | 11.9 | 5.1 | 2.3 | 1.4 | 1.3 | 0.9 | 0.3 | 0.12 | – |
| 83 | 2.2 | 14.2 | 9.4 | 3.3 | 2.2 | 2 | 1.4 | 0.8 | 0.4 | 0.18 | – |
| 50 | 1.2 | 11.5 | 6.3 | 2.2 | 1.6 | 0.7 | – | – | – | – | – |
3. Evacuate Time
| Feed Pressure | Air Consumption | Evacation time in seconds per literto reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 2.6 | 10.6 | 0.34 | 1.6 | 3.9 | 7 | 10.4 | 17.5 | 30.9 | 61.4 | – |
| 2.2 | 9.6 | 0.4 | 1.48 | 4.3 | 6.9 | 9.1 | 15.3 | 27.4 | 50.2 | – |
| 1.2 | 6.8 | 0.68 | 3 | 6.1 | 11.8 | 27.2 | – | – | – | – |
Dimensions

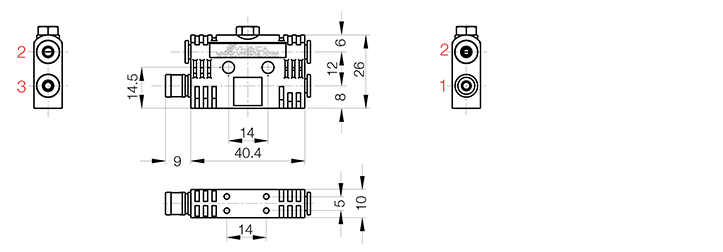

| MC102: Basic Pump |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, ∅4 |
| 2 | Vacuum Port, ∅4 |
| 3 | Exhaust Port |

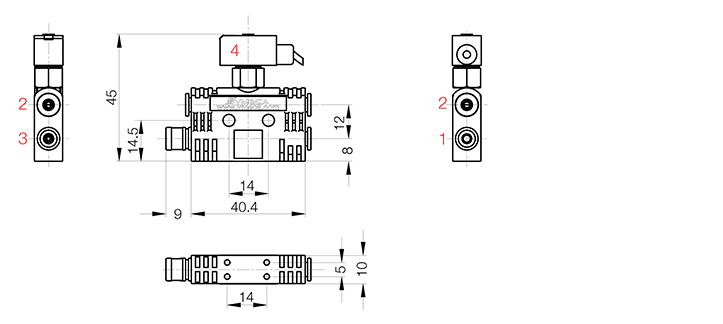

| MC102: With Optional Parts, LED Vacuum Switch |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, ∅4 |
| 2 | Vacuum Port, ∅4 |
| 3 | Exhaust Port |
| 4 | LED Vacuum Switch |

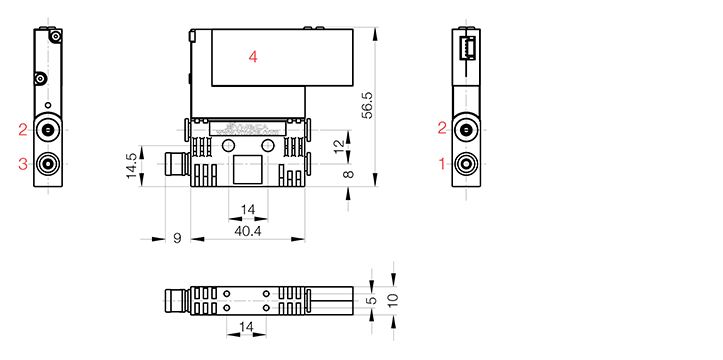

| MC102: With Optional Parts, Digital Vacuum Switch |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, ∅4 |
| 2 | Vacuum Port, ∅4 |
| 3 | Exhaust Port |
| 4 | Digital Vacuum Switch |
Order Numbers
Vacuum Pump & Spare Parts
| Part Number | Description |
| VC102 | Micro vacuum cartridge, 2-stage |
| MC102-S | Micro pump, 2-stage cartridge, Plug, Single unit |
| VCP-M7 | Holding plug for MC102 |
Downloads
Catalog & CAD files| CAD 2D File | |
| MC102-M10-( ) |
|
|---|---|
| MC102-M2-( ) |
|
| MC102-M4-( ) |
|
| MC102-M6-( ) |
|
| MC102-M8-( ) |
|
| MC102-S-( ) |
|
| CAD 3D File | |
| MC102-M10-( ) |
|
| MC102-M2-( ) |
|
| MC102-M4-( ) |
|
| MC102-M6-( ) |
|
| MC102-M8-( ) |
|
| MC102-S-( ) |
|
| Catalog | |
| MC102 |
|
