SP(XX)-SM03-VDF

SP(XX)-SM03-VDF

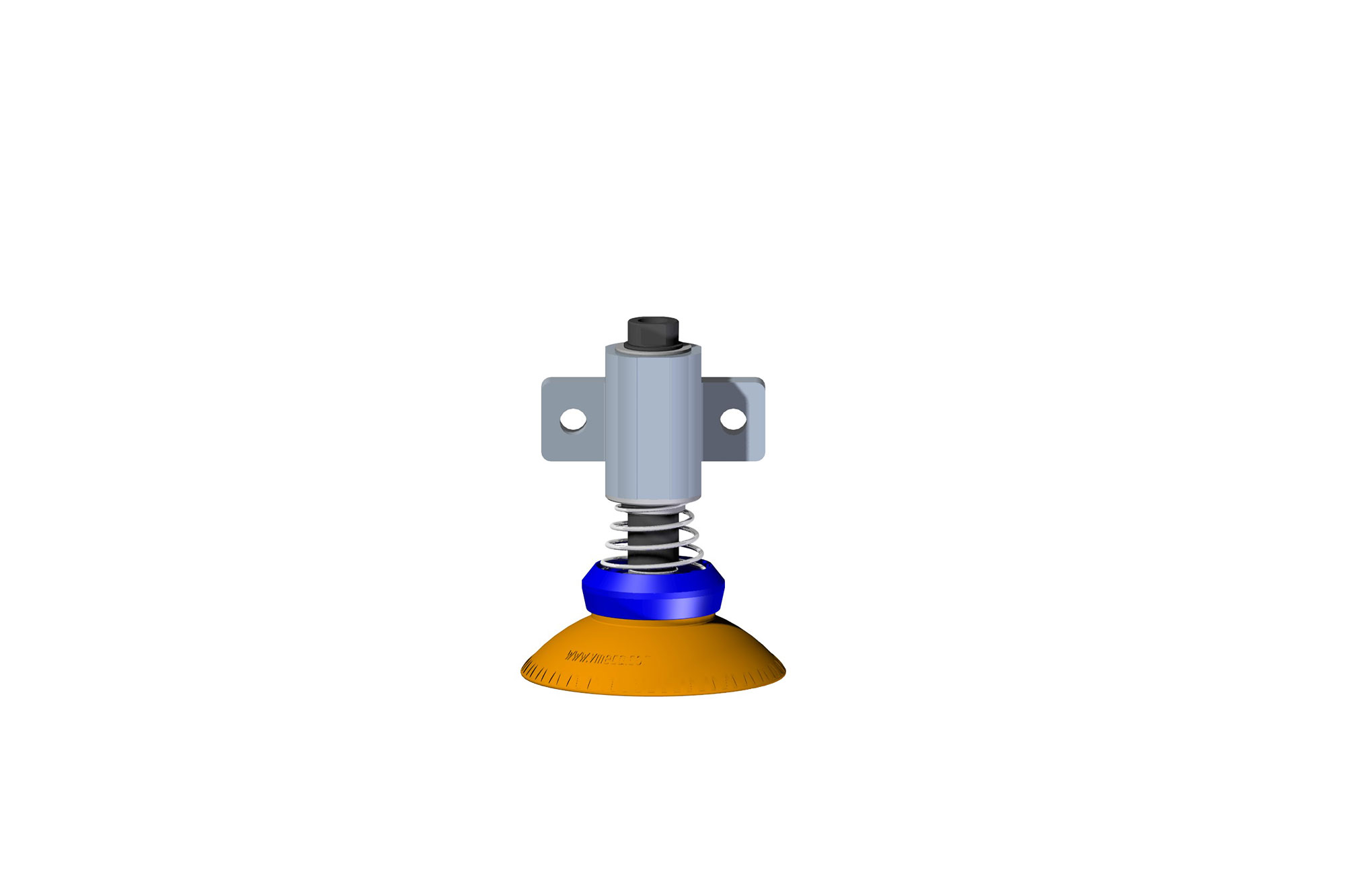

Smart Plunger: VDF Cup series

SKU: SP(XX)-SM03-VDF Category:

Description

The smart plunger is integrated with a level compensator and also designed to easily pick up the object by selectively combining a smart cup and a ball joint. Especially, it can be installed with bolts, and only the suction lip can be replaced so that various types of suction lips can be used.

Build a Model #

1. Stroke

Code Description
SP20 20 mm stroke level compensator
SP30 30 mm stroke level compensator
SP50 50 mm stroke level compensator
SP70 70 mm stroke level compensator

2. Ball Joint

Code Description
SM03 No ball joint

3. Pad Size

Code Description
VDF50 Deep flat suction pad, 50 mm
VDF60 Deep flat suction pad, 60 mm
VDF80 Deep flat suction pad, 80 mm
VDF100 Deep flat suction pad, 100 mm

4. Pad Material

Code Description
N Nitrile (NBR)
S Silicone
PU Polyurethane

Specifications

Specifications

Model Volume (cm³) Lifting force (Kg) – Perpendicular Lifting force (Kg) – Parallel
-20 kPa -60 kPa -90 kPa -20 kPa -60 kPa -90 kPa
VDF50 14 4.1 10.1 14 3.5 9.2 18.5
VDF60 24 5.6 13.7 19 4.3 13.8 24.5
VDF80 50.9 8.6 21.2 29.3 7.2 18.5 27
VDF100 94 12.6 30.8 41.7 12.3 28.2 39.6

Dimensions

Ball Joint integrated Smart Plungers (mm)


Model A1 ST H
SP20-SM03-VDF50 53 8.4 105.5
SP20-SM03-VDF60 63.5 10.9 108.8
SP20-SM03-VDF80 83.5 13.9 112.4
SP20-SM03-VDF100 104.2 17.3 115.1
SP30-SM03-VDF50 53 8.4 126.5
SP30-SM03-VDF60 63.5 10.9 129.8
SP30-SM03-VDF80 83.5 13.9 133.4
SP30-SM03-VDF100 104.2 17.3 136.1
SP50-SM03-VDF50 53 8.4 146.5
SP50-SM03-VDF60 63.5 10.9 149.8
SP50-SM03-VDF80 83.5 13.9 153.4
SP50-SM03-VDF100 104.2 17.3 156.1
SP70-SM03-VDF50 53 8.4 138.5
SP70-SM03-VDF60 63.5 10.9 171.8
SP70-SM03-VDF80 83.5 13.9 175.4
SP70-SM03-VDF100 104.2 17.3 178.1

Smart Plunger without Suction Lip (mm)


Model A1 H
SP20-SM03 44.8 91.5
SP30-SM03 44.8 112.5
SP50-SM03 44.8 132.5
SP70-SM03 44.8 154.5

Order Numbers

Smart Plungers

Part Number Description
SP20-BJ03-VDF50-N Smart plunger, ball-joint, 20 mm stroke, 50 mm VDF nitrile pad
SP20-BJ03-VDF50-S Smart plunger, ball-joint, 20 mm stroke, 50 mm VDF silicone pad
SP20-BJ03-VDF50-PU Smart plunger, ball-joint, 20 mm stroke, 50 mm VDF polyurethane pad
SP20-BJ03-VDF60-N Smart plunger, ball-joint, 20 mm stroke, 60 mm VDF nitrile pad
SP20-BJ03-VDF60-S Smart plunger, ball-joint, 20 mm stroke, 60 mm VDF silicone pad
SP20-BJ03-VDF60-PU Smart plunger, ball-joint, 20 mm stroke, 60 mm VDF polyurethane pad
SP20-BJ03-VDF80-N Smart plunger, ball-joint, 20 mm stroke, 80 mm VDF nitrile pad
SP20-BJ03-VDF80-S Smart plunger, ball-joint, 20 mm stroke, 80 mm VDF silicone pad
SP20-BJ03-VDF80-PU Smart plunger, ball-joint, 20 mm stroke, 80 mm VDF polyurethane pad
SP20-BJ03-VDF100-N Smart plunger, ball-joint, 20 mm stroke, 100 mm VDF nitrile pad
SP20-BJ03-VDF100-S Smart plunger, ball-joint, 20 mm stroke, 100 mm VDF silicone pad
SP20-BJ03-VDF100-PU Smart plunger, ball-joint, 20 mm stroke, 100 mm VDF polyurethane pad
SP30-BJ03-VDF50-N Smart plunger, ball-joint, 30 mm stroke, 50 mm VDF nitrile pad
SP30-BJ03-VDF50-S Smart plunger, ball-joint, 30 mm stroke, 50 mm VDF silicone pad
SP30-BJ03-VDF50-PU Smart plunger, ball-joint, 30 mm stroke, 50 mm VDF polyurethane pad
SP30-BJ03-VDF60-N Smart plunger, ball-joint, 30 mm stroke, 60 mm VDF nitrile pad
SP30-BJ03-VDF60-S Smart plunger, ball-joint, 30 mm stroke, 60 mm VDF silicone pad
SP30-BJ03-VDF60-PU Smart plunger, ball-joint, 30 mm stroke, 60 mm VDF polyurethane pad
SP30-BJ03-VDF80-N Smart plunger, ball-joint, 30 mm stroke, 80 mm VDF nitrile pad
SP30-BJ03-VDF80-S Smart plunger, ball-joint, 30 mm stroke, 80 mm VDF silicone pad
SP30-BJ03-VDF80-PU Smart plunger, ball-joint, 30 mm stroke, 80 mm VDF polyurethane pad
SP30-BJ03-VDF100-N Smart plunger, ball-joint, 30 mm stroke, 100 mm VDF nitrile pad
SP30-BJ03-VDF100-S Smart plunger, ball-joint, 30 mm stroke, 100 mm VDF silicone pad
SP30-BJ03-VDF100-PU Smart plunger, ball-joint, 30 mm stroke, 100 mm VDF polyurethane pad
SP50-BJ03-VDF50-N Smart plunger, ball-joint, 50 mm stroke, 50 mm VDF nitrile pad
SP50-BJ03-VDF50-S Smart plunger, ball-joint, 50 mm stroke, 50 mm VDF silicone pad
SP50-BJ03-VDF50-PU Smart plunger, ball-joint, 50 mm stroke, 50 mm VDF polyurethane pad
SP50-BJ03-VDF60-N Smart plunger, ball-joint, 50 mm stroke, 60 mm VDF nitrile pad
SP50-BJ03-VDF60-S Smart plunger, ball-joint, 50 mm stroke, 60 mm VDF silicone pad
SP50-BJ03-VDF60-PU Smart plunger, ball-joint, 50 mm stroke, 60 mm VDF polyurethane pad
SP50-BJ03-VDF80-N Smart plunger, ball-joint, 50 mm stroke, 80 mm VDF nitrile pad
SP50-BJ03-VDF80-S Smart plunger, ball-joint, 50 mm stroke, 80 mm VDF silicone pad
SP50-BJ03-VDF80-PU Smart plunger, ball-joint, 50 mm stroke, 80 mm VDF polyurethane pad
SP50-BJ03-VDF100-N Smart plunger, ball-joint, 50 mm stroke, 100 mm VDF nitrile pad
SP50-BJ03-VDF100-S Smart plunger, ball-joint, 50 mm stroke, 100 mm VDF silicone pad
SP50-BJ03-VDF100-PU Smart plunger, ball-joint, 50 mm stroke, 100 mm VDF polyurethane pad
SP70-BJ03-VDF50-N Smart plunger, ball-joint, 70 mm stroke, 50 mm VDF nitrile pad
SP70-BJ03-VDF50-S Smart plunger, ball-joint, 70 mm stroke, 50 mm VDF silicone pad
SP70-BJ03-VDF50-PU Smart plunger, ball-joint, 70 mm stroke, 50 mm VDF polyurethane pad
SP70-BJ03-VDF60-N Smart plunger, ball-joint, 70 mm stroke, 60 mm VDF nitrile pad
SP70-BJ03-VDF60-S Smart plunger, ball-joint, 70 mm stroke, 60 mm VDF silicone pad
SP70-BJ03-VDF60-PU Smart plunger, ball-joint, 70 mm stroke, 60 mm VDF polyurethane pad
SP70-BJ03-VDF80-N Smart plunger, ball-joint, 70 mm stroke, 80 mm VDF nitrile pad
SP70-BJ03-VDF80-S Smart plunger, ball-joint, 70 mm stroke, 80 mm VDF silicone pad
SP70-BJ03-VDF80-PU Smart plunger, ball-joint, 70 mm stroke, 80 mm VDF polyurethane pad
SP70-BJ03-VDF100-N Smart plunger, ball-joint, 70 mm stroke, 100 mm VDF nitrile pad
SP70-BJ03-VDF100-S Smart plunger, ball-joint, 70 mm stroke, 100 mm VDF silicone pad
SP70-BJ03-VDF100-PU Smart plunger, ball-joint, 70 mm stroke, 100 mm VDF polyurethane pad
REQUEST A QUOTE

Downloads

Catalog & CAD files
Catalog
SP(XX)-SM03-VDF
