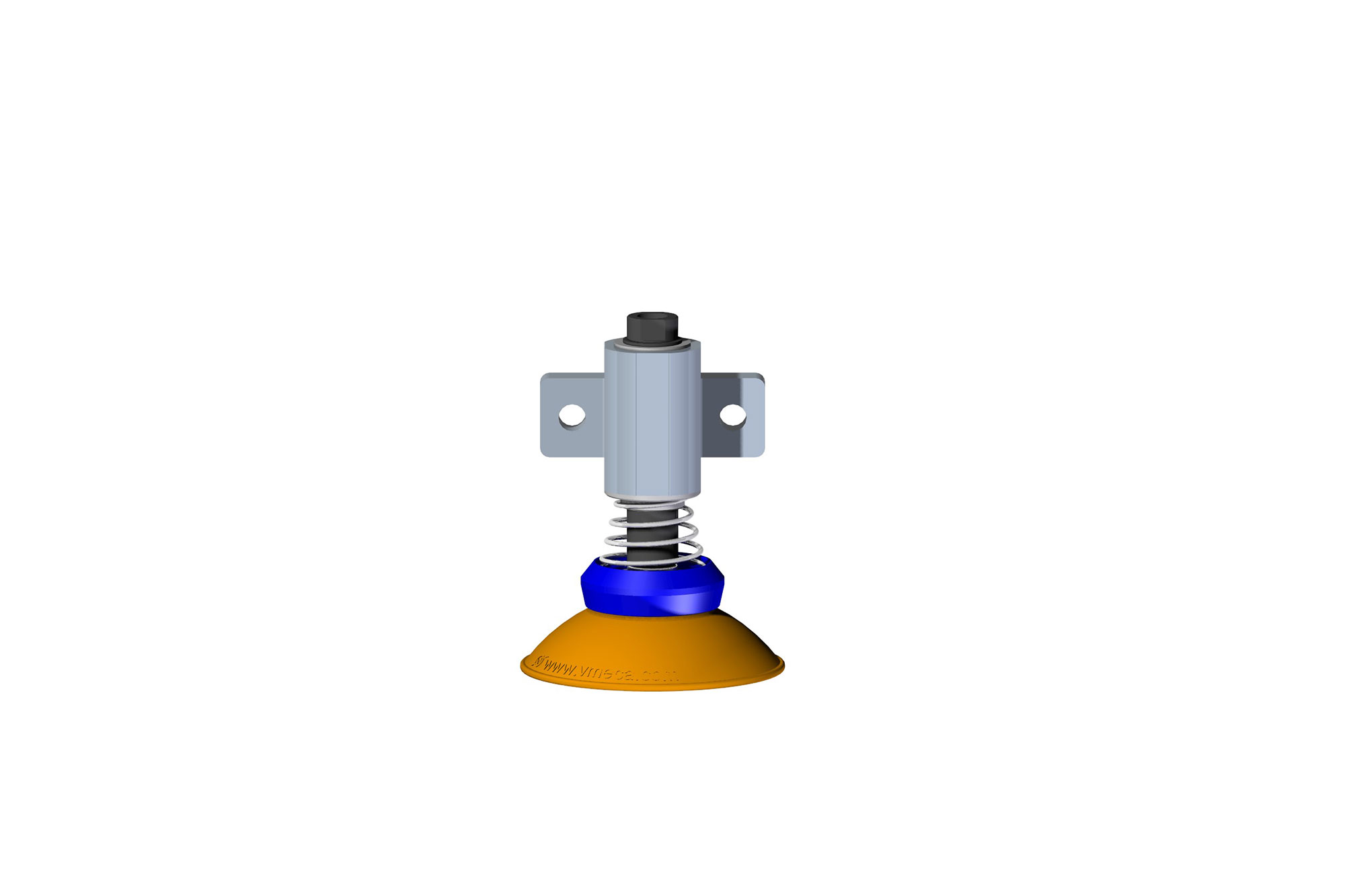

Smart Plunger: FCF Cup series

SKU: SP(XX)-SM03-FCF Category:

Description

The smart plunger is integrated with a level compensator and also designed to easily pick up the object by selectively combining a smart cup and a ball joint. Especially, it can be installed with bolts, and only the suction lip can be replaced so that various types of suction lips can be used.

Build a Model #

1. Stroke

Code Description
SP20 20 mm stroke level compensator
SP30 30 mm stroke level compensator
SP50 50 mm stroke level compensator
SP70 70 mm stroke level compensator

2. Ball Joint

Code Description
SM03 No ball-joint

3. Pad Size

Code Description
FCF50 Flat curve suction lip, 50 mm
FCF60 Flat curve suction lip, 60 mm
FCF70 Flat curve suction lip, 70 mm
FCF80 Flat curve suction lip, 80 mm
FCF100 Flat curve suction lip, 100 mm
FCF125 Flat curve suction lip, 125 mm

4. Pad Material

Code Description
N Nitrile (NBR)
S Silicone
PU Polyurethane

Specifications

Specifications

Model Volume (cm³) Lifting force (Kg) – Perpendicular Lifting force (Kg) – Parallel
-20 kPa -60 kPa -90 kPa -20 kPa -60 kPa -90 kPa
FCF50 8 4.2 10.8 15.4 3.7 6.7 8.9
FCF60 14.6 5.6 15.2 22.3 5.5 13.3 16.7
FCF70 20.7 7.6 19.6 28.2 6.3 15.8 20.1
FCF80 36 10.3 25.9 34.4 6.7 17.7 23.8
FCF100 58 14.7 37.1 50.6 13.6 35.4 43.7
FCF125 115 19.4 44.5 57.9 19.1 42.5 64.9

Dimensions

Ball Joint integrated Smart Plungers (mm)


Model A1 ST H
SP20-SM03-FCF50 52 5 105
SP20-SM03-FCF60 62 6 108
SP20-SM03-FCF70 72 6.5 108
SP20-SM03-FCF80 82.5 7.6 111.5
SP20-SM03-FCF100 104 9.5 111.5
SP20-SM03-FCF125 128 13 118
SP30-SM03-FCF50 52 5 126
SP30-SM03-FCF60 62 6 129
SP30-SM03-FCF70 72 6.5 129
SP30-SM03-FCF80 82.5 7.6 132.5
SP30-SM03-FCF100 104 9.5 132.5
SP30-SM03-FCF125 128 13 139
SP50-SM03-FCF50 52 5 146
SP50-SM03-FCF60 62 6 149
SP50-SM03-FCF70 72 6.5 149
SP50-SM03-FCF80 82.5 7.6 152.5
SP50-SM03-FCF100 104 9.5 152.5
SP50-SM03-FCF125 128 13 159
SP70-SM03-FCF50 52 5 168
SP70-SM03-FCF60 62 6 171
SP70-SM03-FCF70 72 6.5 171
SP70-SM03-FCF80 82.5 7.6 174.5
SP70-SM03-FCF100 104 9.5 174.5
SP70-SM03-FCF125 128 13 181

Smart Plunger without Suction Lip (mm)


Model A1 H
SP20-SM03 44.8 91.5
SP30-SM03 44.8 112.5
SP50-SM03 44.8 12.5
SP70-SM03 44.8 154.5

Order Numbers

Smart Plungers

Part Number Description
SP20-SM03-FCF50-N Smart plunger, no ball-joint, 20 mm stroke, 50 mm FCF nitrile pad
SP20-SM03-FCF50-S Smart plunger, no ball-joint, 20 mm stroke, 50 mm FCF silicone pad
SP20-SM03-FCF50-PU Smart plunger, no ball-joint, 20 mm stroke, 50 mm FCF polyurethane pad
SP20-SM03-FCF60-N Smart plunger, no ball-joint, 20 mm stroke, 60 mm FCF nitrile pad
SP20-SM03-FCF60-S Smart plunger, no ball-joint, 20 mm stroke, 60 mm FCF silicone pad
SP20-SM03-FCF60-PU Smart plunger, no ball-joint, 20 mm stroke, 60 mm FCF polyurethane pad
SP20-SM03-FCF70-N Smart plunger, no ball-joint, 20 mm stroke, 70 mm FCF nitrile pad
SP20-SM03-FCF70-S Smart plunger, no ball-joint, 20 mm stroke, 70 mm FCF silicone pad
SP20-SM03-FCF70-PU Smart plunger, no ball-joint, 20 mm stroke, 70 mm FCF polyurethane pad
SP20-SM03-FCF80-N Smart plunger, no ball-joint, 20 mm stroke, 80 mm FCF nitrile pad
SP20-SM03-FCF80-S Smart plunger, no ball-joint, 20 mm stroke, 80 mm FCF silicone pad
SP20-SM03-FCF80-PU Smart plunger, no ball-joint, 20 mm stroke, 80 mm FCF polyurethane pad
SP20-SM03-FCF100-N Smart plunger, no ball-joint, 20 mm stroke, 100 mm FCF nitrile pad
SP20-SM03-FCF100-S Smart plunger, no ball-joint, 20 mm stroke, 100 mm FCF silicone pad
SP20-SM03-FCF100-PU Smart plunger, no ball-joint, 20 mm stroke, 100 mm FCF polyurethane pad
SP20-SM03-FCF125-N Smart plunger, no ball-joint, 20 mm stroke, 125 mm FCF nitrile pad
SP20-SM03-FCF125-S Smart plunger, no ball-joint, 20 mm stroke, 125 mm FCF silicone pad
SP20-SM03-FCF125-PU Smart plunger, no ball-joint, 20 mm stroke, 1250 mm FCF polyurethane pad
SP30-SM03-FCF50-N Smart plunger, no ball-joint, 30 mm stroke, 50 mm FCF nitrile pad
SP30-SM03-FCF50-S Smart plunger, no ball-joint, 30 mm stroke, 50 mm FCF silicone pad
SP30-SM03-FCF50-PU Smart plunger, no ball-joint, 30 mm stroke, 50 mm FCF polyurethane pad
SP30-SM03-FCF60-N Smart plunger, no ball-joint, 30 mm stroke, 60 mm FCF nitrile pad
SP30-SM03-FCF60-S Smart plunger, no ball-joint, 30 mm stroke, 60 mm FCF silicone pad
SP30-SM03-FCF60-PU Smart plunger, no ball-joint, 30 mm stroke, 60 mm FCF polyurethane pad
SP30-SM03-FCF70-N Smart plunger, no ball-joint, 30 mm stroke, 70 mm FCF nitrile pad
SP30-SM03-FCF70-S Smart plunger, no ball-joint, 30 mm stroke, 70 mm FCF silicone pad
SP30-SM03-FCF70-PU Smart plunger, no ball-joint, 30 mm stroke, 70 mm FCF polyurethane pad
SP30-SM03-FCF80-N Smart plunger, no ball-joint, 30 mm stroke, 80 mm FCF nitrile pad
SP30-SM03-FCF80-S Smart plunger, no ball-joint, 30 mm stroke, 80 mm FCF silicone pad
SP30-SM03-FCF80-PU Smart plunger, no ball-joint, 30 mm stroke, 80 mm FCF polyurethane pad
SP30-SM03-FCF100-N Smart plunger, no ball-joint, 30 mm stroke, 100 mm FCF nitrile pad
SP30-SM03-FCF100-S Smart plunger, no ball-joint, 30 mm stroke, 100 mm FCF silicone pad
SP30-SM03-FCF100-PU Smart plunger, no ball-joint, 30 mm stroke, 100 mm FCF polyurethane pad
SP30-SM03-FCF125-N Smart plunger, no ball-joint, 30 mm stroke, 125 mm FCF nitrile pad
SP30-SM03-FCF125-S Smart plunger, no ball-joint, 30 mm stroke, 125 mm FCF silicone pad
SP30-SM03-FCF125-PU Smart plunger, no ball-joint, 30 mm stroke, 1250 mm FCF polyurethane pad
SP50-SM03-FCF50-N Smart plunger, no ball-joint, 50 mm stroke, 50 mm FCF nitrile pad
SP50-SM03-FCF50-S Smart plunger, no ball-joint, 50 mm stroke, 50 mm FCF silicone pad
SP50-SM03-FCF50-PU Smart plunger, no ball-joint, 50 mm stroke, 50 mm FCF polyurethane pad
SP50-SM03-FCF60-N Smart plunger, no ball-joint, 50 mm stroke, 60 mm FCF nitrile pad
SP50-SM03-FCF60-S Smart plunger, no ball-joint, 50 mm stroke, 60 mm FCF silicone pad
SP50-SM03-FCF60-PU Smart plunger, no ball-joint, 50 mm stroke, 60 mm FCF polyurethane pad
SP50-SM03-FCF70-N Smart plunger, no ball-joint, 50 mm stroke, 70 mm FCF nitrile pad
SP50-SM03-FCF70-S Smart plunger, no ball-joint, 50 mm stroke, 70 mm FCF silicone pad
SP50-SM03-FCF70-PU Smart plunger, no ball-joint, 50 mm stroke, 70 mm FCF polyurethane pad
SP50-SM03-FCF80-N Smart plunger, no ball-joint, 50 mm stroke, 80 mm FCF nitrile pad
SP50-SM03-FCF80-S Smart plunger, no ball-joint, 50 mm stroke, 80 mm FCF silicone pad
SP50-SM03-FCF80-PU Smart plunger, no ball-joint, 50 mm stroke, 80 mm FCF polyurethane pad
SP50-SM03-FCF100-N Smart plunger, no ball-joint, 50 mm stroke, 100 mm FCF nitrile pad
SP50-SM03-FCF100-S Smart plunger, no ball-joint, 50 mm stroke, 100 mm FCF silicone pad
SP50-SM03-FCF100-PU Smart plunger, no ball-joint, 50 mm stroke, 100 mm FCF polyurethane pad
SP50-SM03-FCF125-N Smart plunger, no ball-joint, 50 mm stroke, 125 mm FCF nitrile pad
SP50-SM03-FCF125-S Smart plunger, no ball-joint, 50 mm stroke, 125 mm FCF silicone pad
SP50-SM03-FCF125-PU Smart plunger, no ball-joint, 50 mm stroke, 1250 mm FCF polyurethane pad
SP70-SM03-FCF50-N Smart plunger, no ball-joint, 70 mm stroke, 50 mm FCF nitrile pad
SP70-SM03-FCF50-S Smart plunger, no ball-joint, 70 mm stroke, 50 mm FCF silicone pad
SP70-SM03-FCF50-PU Smart plunger, no ball-joint, 70 mm stroke, 50 mm FCF polyurethane pad
SP70-SM03-FCF60-N Smart plunger, no ball-joint, 70 mm stroke, 60 mm FCF nitrile pad
SP70-SM03-FCF60-S Smart plunger, no ball-joint, 70 mm stroke, 60 mm FCF silicone pad
SP70-SM03-FCF60-PU Smart plunger, no ball-joint, 70 mm stroke, 60 mm FCF polyurethane pad
SP70-SM03-FCF70-N Smart plunger, no ball-joint, 70 mm stroke, 70 mm FCF nitrile pad
SP70-SM03-FCF70-S Smart plunger, no ball-joint, 70 mm stroke, 70 mm FCF silicone pad
SP70-SM03-FCF70-PU Smart plunger, no ball-joint, 70 mm stroke, 70 mm FCF polyurethane pad
SP70-SM03-FCF80-N Smart plunger, no ball-joint, 70 mm stroke, 80 mm FCF nitrile pad
SP70-SM03-FCF80-S Smart plunger, no ball-joint, 70 mm stroke, 80 mm FCF silicone pad
SP70-SM03-FCF80-PU Smart plunger, no ball-joint, 70 mm stroke, 80 mm FCF polyurethane pad
SP70-SM03-FCF100-N Smart plunger, no ball-joint, 70 mm stroke, 100 mm FCF nitrile pad
SP70-SM03-FCF100-S Smart plunger, no ball-joint, 70 mm stroke, 100 mm FCF silicone pad
SP70-SM03-FCF100-PU Smart plunger, no ball-joint, 70 mm stroke, 100 mm FCF polyurethane pad
SP70-SM03-FCF125-N Smart plunger, no ball-joint, 70 mm stroke, 125 mm FCF nitrile pad
SP70-SM03-FCF125-S Smart plunger, no ball-joint, 70 mm stroke, 125 mm FCF silicone pad
SP70-SM03-FCF125-PU Smart plunger, no ball-joint, 70 mm stroke, 1250 mm FCF polyurethane pad
