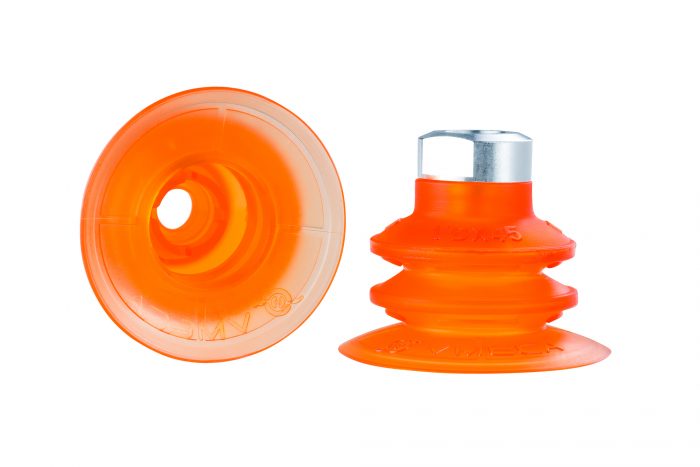

VBX45 series

Double-Bellows & Cross Grooved Suction Cups

Lifting Force (↑): 8.80 Kg @ -60 kPa
Volume: 13.0 cm³
Diameter: 45.8 mm

SKU: VBX45 Category: VBX45

Description

Features and Strengths:

The VBX is particularly good for use on curved surface and for separating thin sheets of materials in stacks. The double bellows suction cup is very good at compensating for various degrees and curvatures of a workpiece. The cleats at the bottom of the suction cup allow the VBX to have a very good grip on the holding object.

Examples of use:

Metal Sheets
Veneer Sheets
Plywood
Carton Boxes

Build an Order #

1. Suction Cup

Symbol	Description
VBX45-PU	Double-bellows & cross grooved cup, 45 mm, Polyurethane

2. Disc Filter

Symbol	Description
Blank	No disc filter
F	Disc filter

3. Fitting

Symbol	Description
Blank	No fitting
M-18F	Fitting, Mesh filter, G1/8 female
M-18M	Fitting, Mesh filter, G1/8 male
M-14M	Fitting, Mesh filter, G1/4 male
M-38M	Fitting, Mesh filter, G3/8 male
18F	Fitting, G1/8 female
18M	Fitting, G1/8 male
14M	Fitting, G1/4 male
38M	Fitting, G3/8 male
18F-EV	Efficiency valve fitting, G1/8 female
18M-EV	Efficiency valve fitting, G1/8 male
14M-EV	Efficiency valve fitting, G1/4 male
38M-EV	Efficiency valve fitting, G3/8 male

Specifications

1. Recommended Lifting Maximum Force

Diameter	Volume	Lift Force (↑), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa
45.8	13.0	6.40	8.80	10.50

2. Weight

Part Number	Description	Weight (g)
VBX45-PU	Double-bellows & cross grooved cup, 45 mm, Polyurethane	10.61
VTFE-BX45	Disc filter, Polyethylene	0.63
350-000-4311	Fitting, Mesh filter, G1/8 female	5.73
350-000-4304	Fitting, Mesh filter, G1/8 male	5.04
350-000-3804	Fitting, Mesh filter, G1/4 male	5.92
350-000-3905	Fitting, Mesh filter, G3/8 male	9.56
350-000-3311	Fitting, G1/8 female	5.68
350-000-2304	Fitting, G1/8 male	4.93
350-000-3404	Fitting, G1/4 male	5.88
350-000-3505	Fitting, G3/8 male	9.16
350-010-3311	Efficiency valve fitting, G1/8 female	5.63
350-010-2304	Efficiency valve fitting, G1/8 male	5.08
350-010-3404	Efficiency valve fitting, G1/4 male	6.03
350-010-3505	Efficiency valve fitting, G3/8 male	9.72

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
Polyurethane	60	Translucent Orange	0 ~ 60

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
Polyurethane	Excellent	Excellent	Excellent	Fair	Fair

Dimensions

VBX45

Rubber Part, 18F, 18M, 14M, and 38M

Unit: mm

Legend	A	B	C	D	E	F	G	H	I
Dimension	45.8	32	40	7	44	9	46.8	9.5	48

Order Numbers

Order Numbers

Part Number	Description
Mesh Filter
VBX45-PUM-18F	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 female, Mesh filter
VBX45-PUM-18M	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 male, Mesh filter
VBX45-PUM-14M	Double-bellows & cross grooved cup, 45 mm, PU, G1/4 male, Mesh filter
VBX45-PUM-38M	Double-bellows & cross grooved cup, 45 mm, PU, G3/8 male, Mesh filter
No Mesh Filter
VBX45-PU-18F	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 female
VBX45-PU-18M	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 male
VBX45-PU-14M	Double-bellows & cross grooved cup, 45 mm, PU, G1/4 male
VBX45-PU-38M	Double-bellows & cross grooved cup, 45 mm, PU, G3/8 male
Mesh & Disc Filter
VBX45-PUFM-18F	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 female, Mesh, disc filter
VBX45-PUFM-18M	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 male, Mesh, disc filter
VBX45-PUFM-14M	Double-bellows & cross grooved cup, 45 mm, PU, G1/4 male, Mesh, disc filter
VBX45-PUFM-38M	Double-bellows & cross grooved cup, 45 mm, PU, G3/8 male, Mesh, disc filter
Disc Filter
VBX45-PUF-18F	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 female, Disc filter
VBX45-PUF-18M	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 male, Disc filter
VBX45-PUF-14M	Double-bellows & cross grooved cup, 45 mm, PU, G1/4 male, Disc filter
VBX45-PUF-38M	Double-bellows & cross grooved cup, 45 mm, PU, G3/8 male, Disc filter
Efficiency Valve
VBX45-PU-18F-EV	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 female, Eff valve
VBX45-PU-18M-EV	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 male, Eff valve
VBX45-PU-14M-EV	Double-bellows & cross grooved cup, 45 mm, PU, G1/4 male, Eff valve
VBX45-PU-38M-EV	Double-bellows & cross grooved cup, 45 mm, PU, G3/8 male, Eff valve
Disc Filter & Efficiency Valve
VBX45-PUF-18F-EV	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 female, Eff valve, Disc filter
VBX45-PUF-18M-EV	Double-bellows & cross grooved cup, 45 mm, PU, G1/8 male, Eff valve, Disc filter
VBX45-PUF-14M-EV	Double-bellows & cross grooved cup, 45 mm, PU, G1/4 male, Eff valve, Disc filter
VBX45-PUF-38M-EV	Double-bellows & cross grooved cup, 45 mm, PU, G3/8 male, Eff valve, Disc filter
Rubber Part
VBX45-PU	Double-bellows universal suction cup, 45 mm, Polyurethane
Disc Filter
VTFE-BX45	Disc filter, Polyethylene
Fitting
350-000-4311	Fitting, Mesh filter, G1/8 female
350-000-4304	Fitting, Mesh filter, G1/8 male
350-000-3804	Fitting, Mesh filter, G1/4 male
350-000-3905	Fitting, Mesh filter, G3/8 male
350-000-3311	Fitting, G1/8 female
350-000-2304	Fitting, G1/8 male
350-000-3404	Fitting, G1/4 male
350-000-3505	Fitting, G3/8 male
350-010-3311	Efficiency valve fitting, G1/8 female
350-010-2304	Efficiency valve fitting, G1/8 male
350-010-3404	Efficiency valve fitting, G1/4 male
350-010-3505	Efficiency valve fitting, G3/8 male
