L5 series
Description

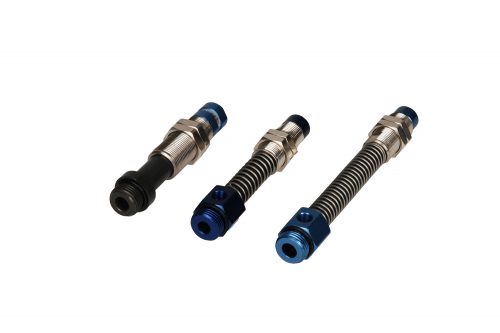

The VMECA level compensator is used to compensate for differences in height on the surface of the material that is to be lifted. The advantages being a more reliable and less precise pickup position when handling a product that may be less consistent with it shape, size, and position. The level compensator also provides a degree of shock absorption should this be required. The level compensator comes in configurations with varying sizes of spring and stroke.
Specifications
General Specifications
| Part Number | Stroke | Weight | Material | Available VMECA Cups |
| L505TU | 5mm | 13.3g | AL, BS, SS | VB5,VB8,VU4,VU6,VU8 |
| L506TX | 6mm | 12g | AL, BS, SS | VB6X, VU1.5X, VU2X, VU4X |
| L506TS | 6mm | 12g | AL, BS, SS | VU15, VF15, VB10, VB12, VB15 |
| L506TU | 6mm | 11g | AL, BS, SS | VU4, VU6, VU8, VB5, VB8 |
| L506TM | 6mm | 11g | AL, BS, SS | VU2, VU3 |
| L506TX-SS | 6mm | 12.5g | Stainless Steel | VB6X, VU1.5X, VU2X, VU4X |
| L506TS-SS | 6mm | 12.5g | Stainless Steel | VU10, VU15, VF15, VB10, VB12, VB15 |
| L506TU-SS | 6mm | 11.5g | Stainless Steel | VU4, VU6, VU8, VB5, VB8 |
| L506TM-SS | 6mm | 11.5g | Stainless Steel | VU2, VU3 |
| L507T | 7mm | 17g | AL, BS, SS | M4 Female Suction Cups |
| L508W | 8mm | 5.1g | AL, BS, SS | M5 Male Suction Cups |
| L508FW | 8mm | 15.3g | AL, BS, SS | M4 Female Suction Cups |
| L510 | 10mm | 33g | AL, BS, SS | M5 Male Suction Cups |
| L510T | 10mm | 30g | AL, BS, SS | M5 Male Suction Cups |
| L510LTX | 10mm | 20g | AL, BS, SS | VB6X, VU1.5X, VU2X, VU4X |
| L510LTS | 10mm | 20g | AL, BS, SS | VU10, VU15, VF15, VB10, VB12, VB15 |
| L510LTU | 10mm | 19.2g | AL, BS, SS | VU4, VU6, VU8, VB5, VB8 |
| L510LTM | 10mm | 19g | AL, BS, SS | VU2, VU3 |
| L510C | 10mm | 37g | AL, BS, SS | M5 Female Suction Cups |
| L510TL | 10mm | 35.6g | AL, BS, SS | M5 Female Suction Cups |
| L510LTX-SS | 10mm | 20.3g | Stainless Steel | VB6X, VU1.5X, VU2X, VU4X |
| L510LTS-SS | 10mm | 17.7g | Stainless Steel | VU10, VU15, VF15, VB10, VB12, VB15 |
| L510LTU-SS | 10mm | 17g | Stainless Steel | VU4, VU6, VU8, VB5, VB8 |
| L510LTM-SS | 10mm | 19.8g | Stainless Steel | VU2, VU3 |
| L515T | 15mm | 20g | AL, BS, SS | M5 Female Suction Cups |
| L515T-M4F | 15mm | 26g | AL, BS, SS | M4 Female Suction Cups |
| L520 | 20mm | 36g | AL, BS, SS | M5 Male Suction Cups |
| L520T | 20mm | 33g | AL, BS, SS | M5 Male Suction Cups |
| L520TF | 20mm | 20g | AL, BS, SS | M5 Female Suction Cups |
Dimensions

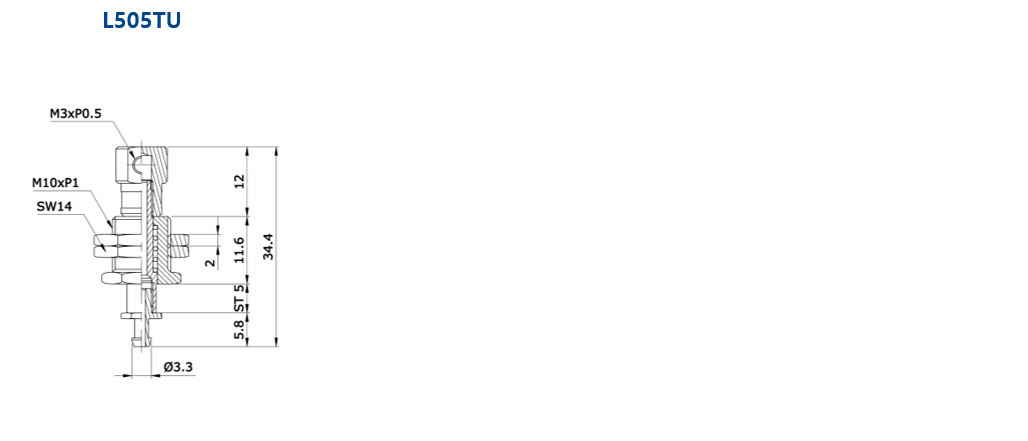

| L505TU: Stroke-5mm |
| Unit: mm |

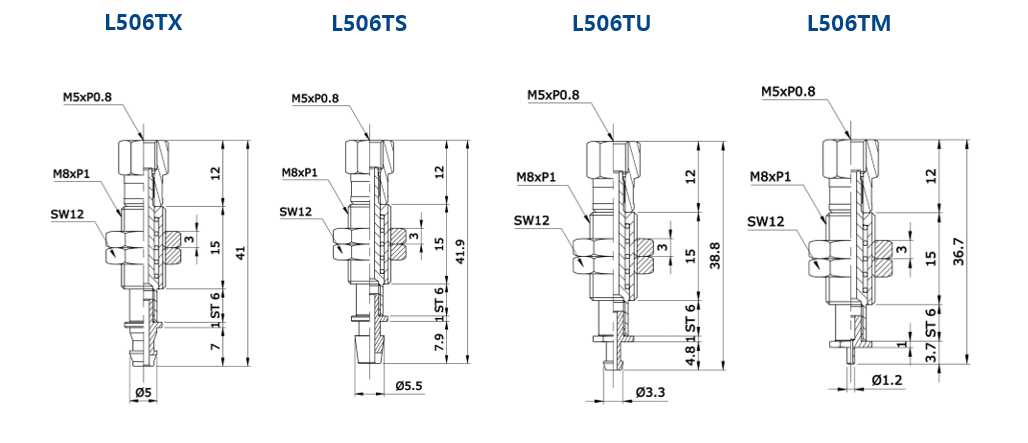

| L506 series: Stroke-6mm |
| Unit: mm |
| L507T: Stroke-7mm |
| Unit: mm |
| L508 series: Stroke-8mm |
| Unit: mm |

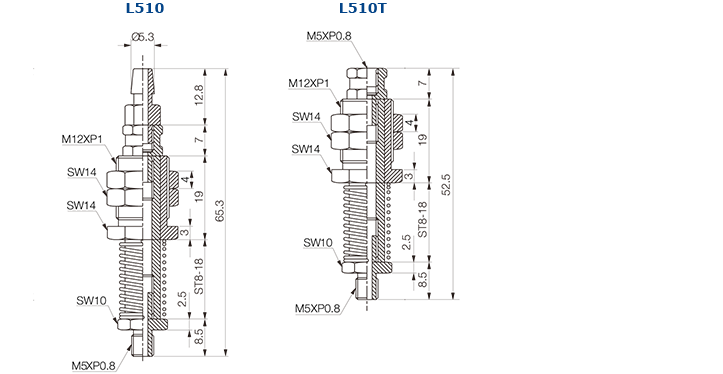

| L510 series: Stroke-10mm |
| Unit: mm |

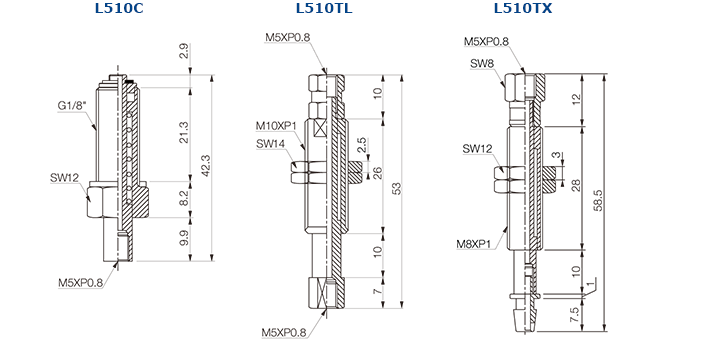

| L510 series: Stroke-10mm |
| Unit: mm |
| L510 series: Stroke-10mm |
| Unit: mm |

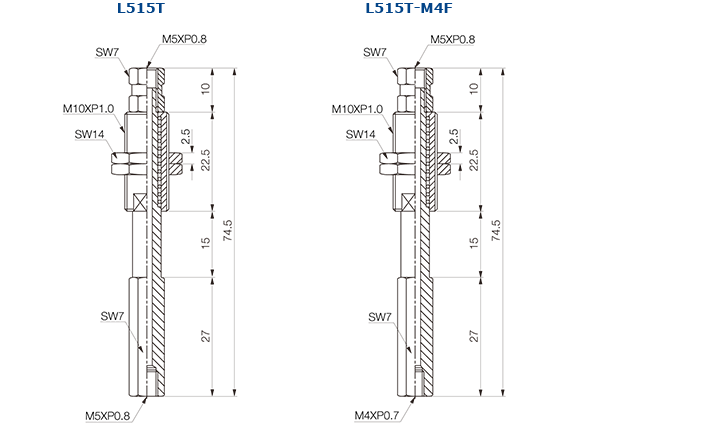

| L515 series: Stroke-15mm |
| Unit: mm |
| L520 series: Stroke-20mm |
| Unit: mm |
Order Numbers
Vacuum Cartridge
| Part Number | Description |
| L505TU | Level compen, 5mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L506TX | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L506TS | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L506TU | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L506TM | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L506TX-SS | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L506TS-SS | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L506TU-SS | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L506TM-SS | Level compen, 6mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L507T | Level compen, 7mm ST, M5 male, M5 female, Top-ported, Int. spring |
| L508W | Level compen, 8mm ST, M5 male, M5 female, Side-ported, Ext. spring |
| L508FW | Level compen, 8mm ST, M5 female, M5 female, Side-ported, Ext. spring |
| L510 | Level compen, 10mm ST, M5 male, Barb-style fitting, Top-ported, Ext. spring |
| L510T | Level compen, 10mm ST, M5 male, M5 female, Top-ported, Ext. spring |
| L510LTX | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L510LTS | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L510LTU | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L510LTM | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring |
| L510C | Level compen, 10mm ST, M5 female, Barb-style fitting, Top-ported, Ext. spring |
| L510TL | Level compen, 10mm ST, M5 female, M5 female, Top-ported, Int. spring |
| L510STX | Level compen, 10mm ST, M5 female, Barb-style fitting, Top-ported, Int. spring |
| L510LTX-SS | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L510LTS-SS | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L510LTU-SS | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L510LTM-SS | Level compen, 10mm ST, Barb-style fitting, M5 female, Top-ported, Int. spring, Stainless steel |
| L515T | Level compen, 15mm ST, M5 Femle, M5 female, Top-ported, Int. spring |
| L515T-M4F | Level compen, 15mm ST, M4 Female, M5 female, Top-ported, Int. spring |
| L520 | Level compen, 20mm ST, M5 male, Barb-style fitting, Top-ported, Ext. spring |
| L520T | Level compen, 20mm ST, M5 male, M5 female, Top-ported, Ext. spring |
| L520TF | Level compen, 20mm ST, M5 male, M5 female, Top-ported, Int. spring |
