BOT-GRIPPER (BF30X)
- Lifting Force: Max. 20 kg
- Available Lifting diameter (bottle top): Min. Ø29 ~ Max. Ø33
- Available Lifting diameter (bottle body): Min. Ø23 ~ Max. Ø34
BOT-Gripper (BF-series)
Description
Build an Order #
1. Head Size
| Symbol | Description |
| BF30X | Bot-gripper, BF30X Finger style |
| BF40 | Bot-gripper, BF40 Finger style |
2. Level Spring Option
| Symbol | Description |
| L30 | Level Spring Option, Stroke 30mm |
| L50 | Level Spring Option, Stroke 50mm |
| L70 | Level Spring Option, Stroke 70mm |
| L100 | Level Spring Option, Stroke 100mm |
Specifications
General Specifications
| Description | BF30X |
| Lifting Force | Max. 20 kg |
| Available Lifting diameter (A) | Min. Ø29 ~ Max. Ø33 |
| Available Lifting diameter (B) | Min. Ø23 ~ Max. Ø34 |
| Operating pressure | (min) 2 bar ~ (max) 4 bar |
| Operating temperature | less than + 60 ℃ |
| Description | BF40 |
| Lifting Force | Max. 20 kg |
| Available Lifting diameter (A) | Min. Ø30 ~ Max. Ø47 |
| Available Lifting diameter (B) | Min. Ø33 ~ Max. Ø46 |
| Operating pressure | (min) 2 bar ~ (max) 4 bar |
| Operating temperature | less than + 60 ℃ |
Dimensions

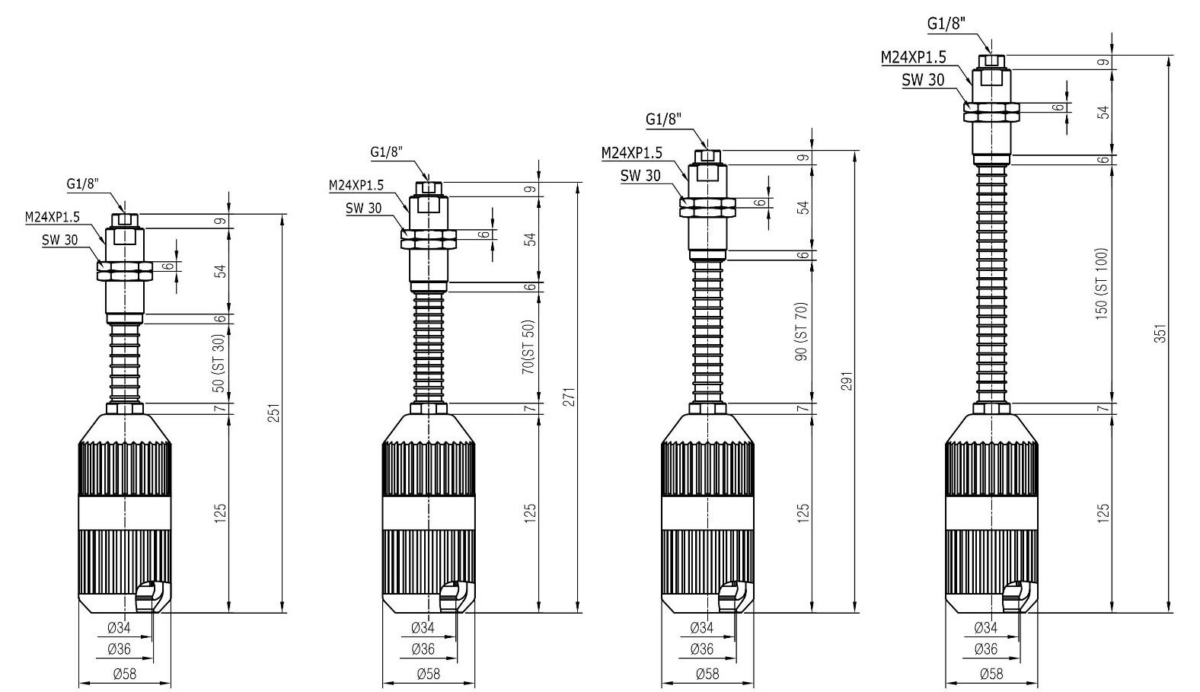

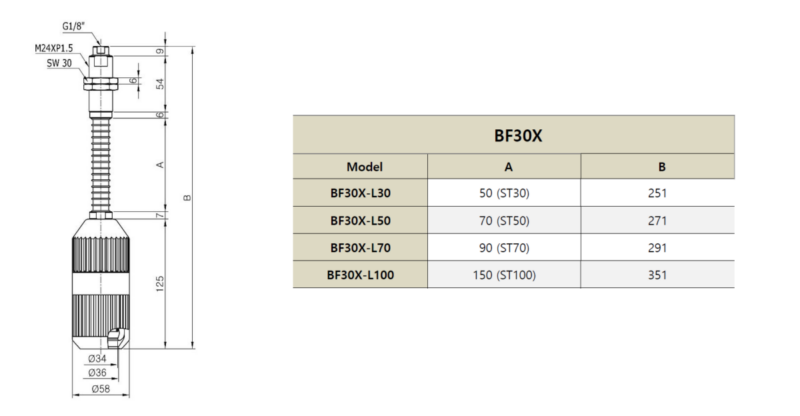

| BF30X: |
Unit: mm
|

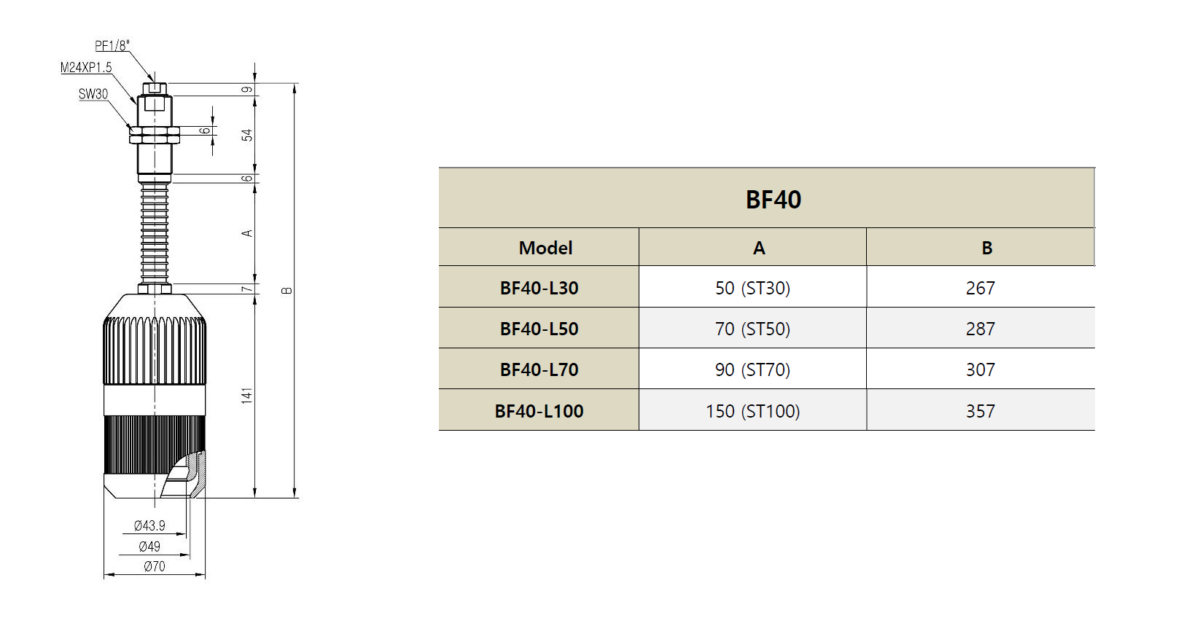

| BF40: |
Unit: mm
|
Order Numbers
BOT-Gripper (BF series)
| Part Number | Description |
| BF30X-L30 | BF-series Bot Gripper (BF30X), Level Spring Option, Stroke 30 mm |
| BF30X-L50 | BF-series Bot Gripper (BF30X), Level Spring Option, Stroke 50 mm |
| BF30X-L70 | BF-series Bot Gripper (BF30X), Level Spring Option, Stroke 70 mm |
| BF30X-L100 | BF-series Bot Gripper (BF30X), Level Spring Option, Stroke 100 mm |
| Part Number | Description |
| BF40-L30 | BF-series Bot Gripper (BF40), Level Spring Option, Stroke 30 mm |
| BF40-L50 | BF-series Bot Gripper (BF40), Level Spring Option, Stroke 50 mm |
| BF40-L70 | BF-series Bot Gripper (BF40), Level Spring Option, Stroke 70 mm |
| BF40-L100 | BF-series Bot Gripper (BF40), Level Spring Option, Stroke 100 mm |
