BOT-GRIPPER (BO40)
- Lifting Force: Max. 15 kg
- Available Lifting diameter (bottle top): Min. Ø18 ~ Max. Ø32
- Available Lifting diameter (bottle body): Min. Ø54
BOT-Gripper (BO40, BO45)
Description

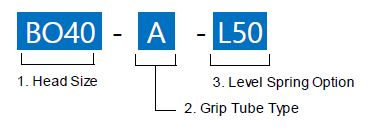

Build an Order #
1. Head Type
| Symbol | Description |
| BO40 | Head part, Pick up head, Min. Ø18 ~ Max. Ø32 |
| BO45 | Head part, Pick up head, Min. Ø32 ~ Max. Ø45 |
2. Grip Tube Type
| Symbol | Description |
| A | Standard Type |
| B | Anti slip Bump Type |
3. Level Spring Option
| Symbol | Description |
| L30 | Level Spring Option, Stroke 30mm |
| L50 | Level Spring Option, Stroke 50mm |
| L70 | Level Spring Option, Stroke 70mm |
| L100 | Level Spring Option, Stroke 100mm |
Specifications
General Specifications
| Description | BO40 |
| Lifting Force | Max. 15 kg |

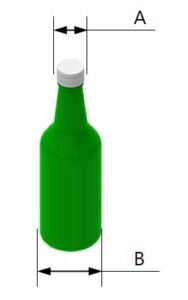

| Available Lifting diameter (A) | Min. Ø18 ~ Max. Ø32 |
| Available Lifting diameter (B) | Min. Ø54 |
| Operating pressure | (min) 1.5 bar ~ (max) 3.5 bar |
| Operating temperature | less than + 60 ℃ |
General Specifications
| Description | BO45 |
| Lifting Force | Max. 15 kg |
| Available Lifting diameter (A) | Min. Ø32 ~ Max. Ø45 |
| Available Lifting diameter (B) | Min. Ø62 |
| Operating pressure | (min) 1.5 bar ~ (max) 3.5 bar |
| Operating temperature | less than + 60 ℃ |
Dimensions

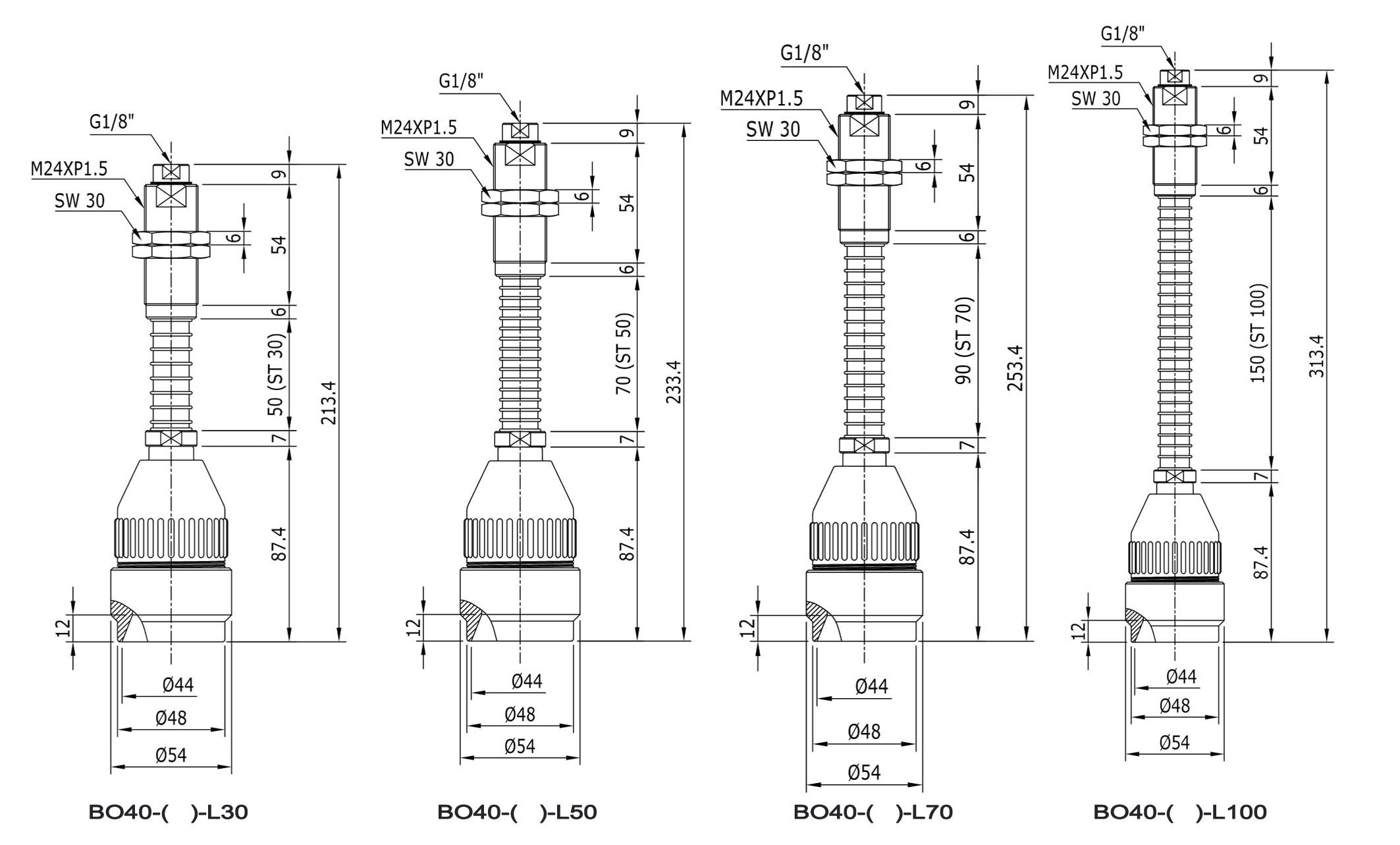

| BO40: |
 Unit: mm
|

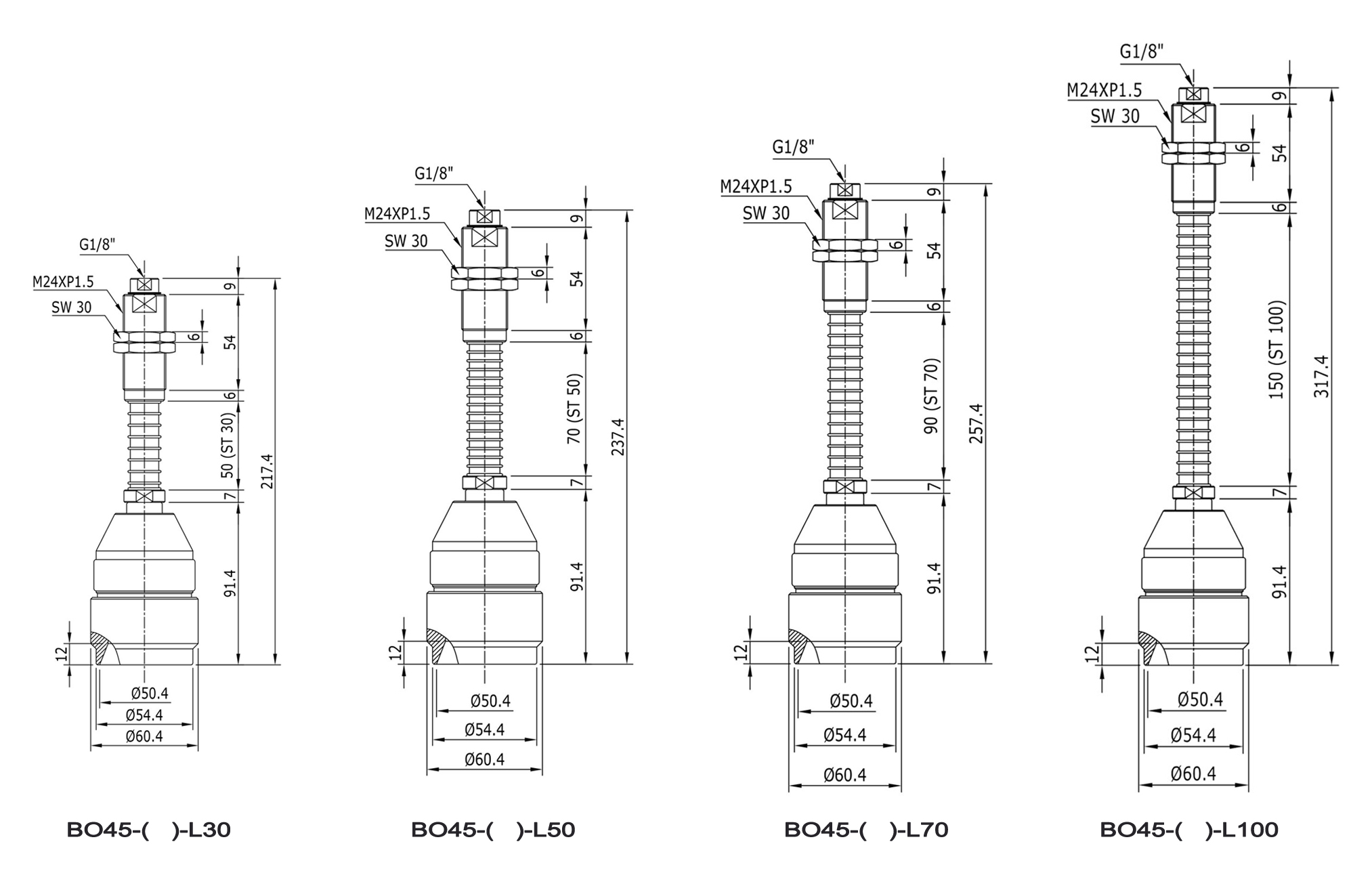

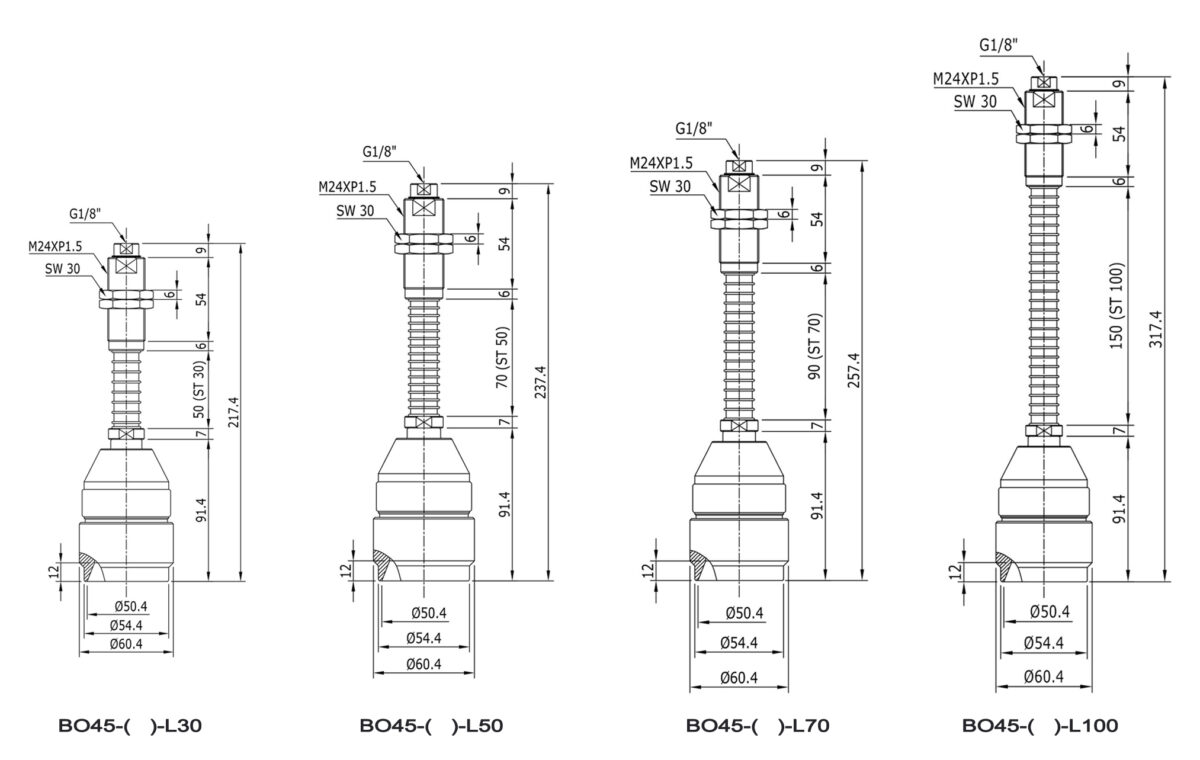

BO45:
 Unit: mm
|
Order Numbers
Bot Gripper (BO series)
| Part Number | Description |
| BO40-A-L30 | Pick-up Head (BO40), Standard Type, Level Spring Option, Stroke 30mm |
| BO40-A-L50 | Pick-up Head (BO40), Standard Type, Level Spring Option, Stroke 50mm |
| BO40-A-L70 | Pick-up Head (BO40), Standard Type, Level Spring Option, Stroke 70mm |
| BO40-A-L100 | Pick-up Head (BO40), Standard Type, Level Spring Option, Stroke 100mm |
| BO40-B-L50 | Pick-up Head (BO40), Anti slip Bump Type, Level Spring Option, Stroke 50mm |
| BO40-B-L70 | Pick-up Head (BO40), Anti slip Bump Type, Level Spring Option, Stroke 70mm |
| BO40-B-L100 | Pick-up Head (BO40), Anti slip Bump Type, Level Spring Option, Stroke 100mm |
| Part Number | Description |
| BO45-A-L30 | Pick-up Head (BO45), Standard Type, Level Spring Option, Stroke 30mm |
| BO45-A-L50 | Pick-up Head (BO45), Standard Type, Level Spring Option, Stroke 50mm |
| BO45-A-L70 | Pick-up Head (BO45), Standard Type, Level Spring Option, Stroke 70mm |
| BO45-A-L100 | Pick-up Head (BO45), Standard Type, Level Spring Option, Stroke 100mm |
| BO45-B-L50 | Pick-up Head (BO45), Anti slip Bump Type, Level Spring Option, Stroke 50mm |
| BO45-B-L70 | Pick-up Head (BO45), Anti slip Bump Type, Level Spring Option, Stroke 70mm |
| BO45-B-L100 | Pick-up Head (BO45), Anti slip Bump Type, Level Spring Option, Stroke 100mm |
Downloads
Catalog & CAD files| Catalog | |
| BOT-Gripper |
|
|---|---|
