Description

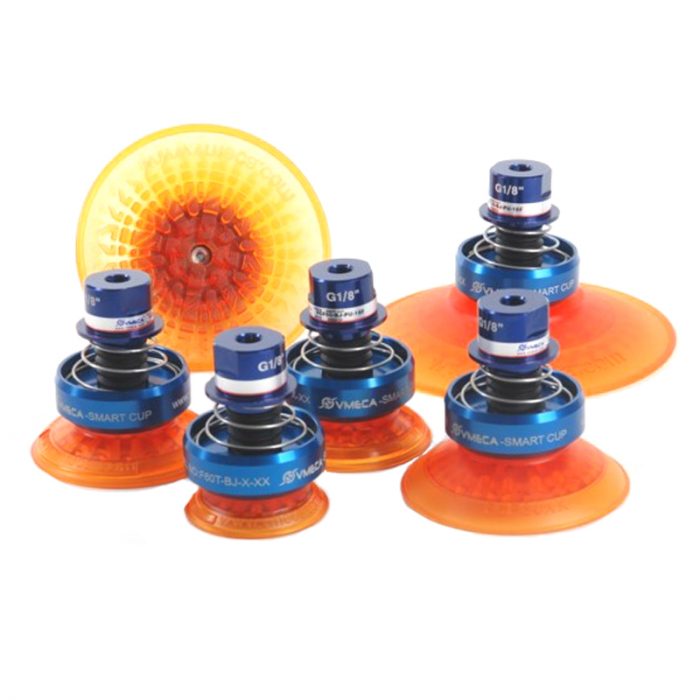

The VMECA Smart Cup is designed for vacuum applications in the automotive industry, making it very easy to transport various steel plates and also it has the option of selecting a function of a ball joint. Particularly, it is possible to replace only the rubber part, which is very economical.
Spare Part
Spare Part (rubber only) – FCF-series
Code |
Description |
FCF30-PU |
Smart Cup, Flat-curved, 30mm, Polyurethane |
FCF40-PU |
Smart Cup, Flat-curved, 40mm, Polyurethane |
FCF50-PU |
Smart Cup, Flat-curved, 50mm, Polyurethane |
FCF60-PU |
Smart Cup, Flat-curved, 60mm, Polyurethane |
FCF70-PU |
Smart Cup, Flat-curved, 70mm, Polyurethane |
FCF80-PU |
Smart Cup, Flat-curved, 80mm, Polyurethane |
FCF100-PU |
Smart Cup, Flat-curved, 100mm, Polyurethane |
FCF125-PU |
Smart Cup, Flat-curved, 125mm, Polyurethane |
FCF30-S |
Smart Cup, Flat-curved, 30mm, Silicon |
FCF40-S |
Smart Cup, Flat-curved, 40mm, Silicon |
FCF50-S |
Smart Cup, Flat-curved, 50mm, Silicon |
FCF60-S |
Smart Cup, Flat-curved, 60mm, Silicon |
FCF70-S |
Smart Cup, Flat-curved, 70mm, Silicon |
FCF80-S |
Smart Cup, Flat-curved, 80mm, Silicon |
FCF100-S |
Smart Cup, Flat-curved, 100mm, Silicon |
FCF125-S |
Smart Cup, Flat-curved, 125mm, Silicon |
FCF30-N |
Smart Cup, Flat-curved, 30mm, NBR |
FCF40-N |
Smart Cup, Flat-curved, 40mm, NBR |
FCF50-N |
Smart Cup, Flat-curved, 50mm, NBR |
FCF60-N |
Smart Cup, Flat-curved, 60mm, NBR |
FCF70-N |
Smart Cup, Flat-curved, 70mm, NBR |
FCF80-N |
Smart Cup, Flat-curved, 80mm, NBR |
FCF100-N |
Smart Cup, Flat-curved, 100mm, NBR |
FCF125-N |
Smart Cup, Flat-curved, 125mm, NBR |
