VSM203
설명
VSM 펌프는 작업 환경 속도를 높여 줍니다. 주요 장점은 효율적인 개별 진공 을 보장하고, 매우 빠른 응답을 제공하며, 여러 연결 포트를 사용할 수 있고, 낮고 불규칙한 압력 에도 꾸준한 진공을 유지한다는 점입니다.
Build an Order #
1. Basic Model
| Symbol | Description |
| VSM203 | VSM pump, 3-stage cartridge, Twofold silencer |
| VSM020 | VSM pump, Slave unit, No vacuum cartridge |
2. Mounting Option
| Symbol | Description |
| F | 4-Screw x M4 top mounting kit |
| MT8 | M8 16 mm Screw top mounting kit |
| ML8 | M8 16 mm, Left mounting kit |
| MR8 | M8 16 mm, Right mounting kit |
| PT8 | M8 27 mm, Top mounting kit |
| PL8 | M8 27 mm, Left mounting kit |
| PR8 | M8 27 mm, Right mounting kit |
| PT6 | M6 22 mm, Top mounting kit |
| PL6 | M6 22 mm, Top mounting kit |
| PR6 | M6 22 mm, Top mounting kit |
Specifications
1. General Specifications
| Max Vacuum Level | -90 kPa |
| Open Vacuum Flow | 84.5 Nl/min |
| Feed Pressure | 1.7 ~ 4 bar (Max 7 bar) |
| Air Consumption | 40 Nl/min @ 4 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight | 72 g (F-type mounting option) |
2. Vacuum Flow
| Max Vacuum | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 90 | 3.14 | 84 | 37.5 | 26 | 16 | 15.2 | 12.3 | 10 | 7.2 | 4 | – |
| 89 | 4 | 84.5 | 40 | 33.2 | 22.6 | 15.8 | 12 | 9.2 | 7.3 | 2.9 | – |
| 65 | 2.2 | 68 | 31 | 16.5 | 15.5 | 13.8 | 9 | 3.5 | – | – | – |
| 49 | 1.7 | 55 | 23.2 | 15.5 | 12.6 | 6.1 | – | – | – | – | – |
3. Evacuation Time
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 3.14 | 34 | 0.06 | 0.28 | 0.51 | 1.01 | 1.18 | 1.29 | 1.73 | 3.00 | – |
| 4 | 40 | 0.08 | 0.24 | 0.50 | 0.71 | 0.85 | 1.18 | 1.41 | 3.05 | – |
| 2.2 | 25.5 | 0.08 | 0.39 | 0.59 | 0.85 | 0.96 | 1.10 | – | – | – |
| 1.7 | 22 | 0.13 | 0.40 | 0.79 | 1.57 | – | – | – | – | – |
Dimensions

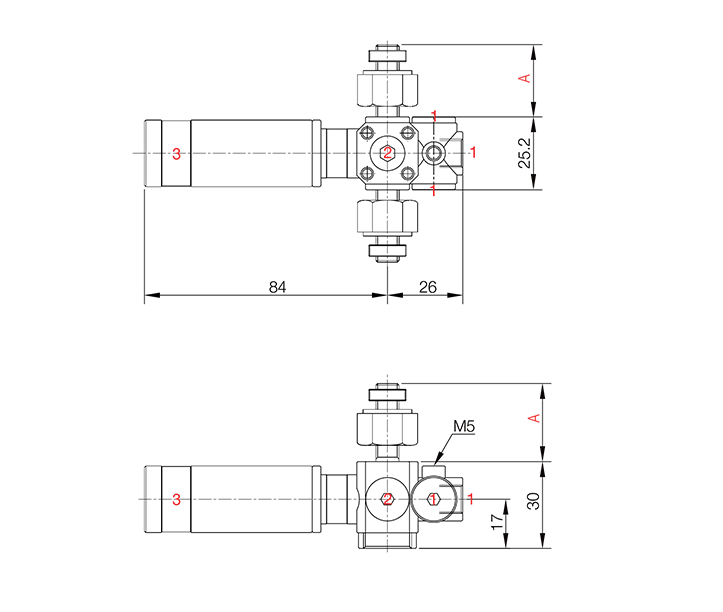

| VSM203: |
| Unit: mm |
|
|
Order Numbers
Spare Parts
| Part Number | Description |
| VC203 | Mini vacuum cartridge, 3-stage |
| VC203S | Mini vacuum cartridge, 3-stage with Twofold silencer |
| VTTS-M14 | Twofold silencer, VC203 |
다운로드
Catalog & CAD files| CAD 2D File | |
| VSM203-F |
|
|---|---|
| VSM203-M( ) |
|
| VSM203-P( ) |
|
| CAD 3D File | |
| VSM203-F |
|
| VSM203-M( ) |
|
| VSM203-P( ) |
|
| Catalog | |
| VSM203 |
|
