VSM202
설명
VSM 펌프는 작업 환경 속도를 높여 줍니다. 주요 장점은 효율적인 개별 진공 을 보장하고, 매우 빠른 응답을 제공하며, 여러 연결 포트를 사용할 수 있고, 낮고 불규칙한 압력 에도 꾸준한 진공을 유지한다는 점입니다.
Build an Order #
1. Basic Model
| Symbol | Description |
| VSM202 | VSM pump, 2-stage cartridge, Holding plug |
| VSM020 | VSM pump, Slave unit, No vacuum cartridge |
2. Mounting Option
| Symbol | Description |
| F | 4-Screw x M4 top mounting kit |
| MT8 | M8 16 mm Screw top mounting kit |
| ML8 | M8 16 mm, Left mounting kit |
| MR8 | M8 16 mm, Right mounting kit |
| PT8 | M8 27 mm, Top mounting kit |
| PL8 | M8 27 mm, Left mounting kit |
| PR8 | M8 27 mm, Right mounting kit |
| PT6 | M6 22 mm, Top mounting kit |
| PL6 | M6 22 mm, Top mounting kit |
| PR6 | M6 22 mm, Top mounting kit |
Specifications
1. General Specifications
| Max Vacuum Level | -90 kPa |
| Open Vacuum Flow | 44 Nl/min |
| Feed Pressure | 1.7 ~ 4 bar (Max 7 bar) |
| Air Consumption | 40 Nl/min @ 4 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight | 48.5 g (F-type mounting option) |
2. Vacuum Flow
| Max Vacuum | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 90 | 3.14 | 44 | 36 | 24.5 | 16.5 | 16 | 13.8 | 10 | 7 | 3.5 | – |
| 89 | 4 | 42 | 38.8 | 28.5 | 21.2 | 15.8 | 12.2 | 9.5 | 7 | 2.4 | – |
| 65 | 2.2 | 39 | 26.5 | 17.3 | 15.6 | 13.5 | 8.4 | 2.6 | – | – | – |
| 49 | 1.7 | 38.5 | 20 | 16 | 12 | 5.3 | – | – | – | – | – |
3. Evacuation Time
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 3.14 | 34 | 0.15 | 0.39 | 0.95 | 1.03 | 1.28 | 1.32 | 2.12 | 3.54 | – |
| 4 | 40 | 0.15 | 0.42 | 0.56 | 0.80 | 0.99 | 1.21 | 1.46 | 3.74 | – |
| 2.2 | 25.5 | 0.20 | 0.47 | 0.70 | 0.92 | 1.24 | 1.35 | – | – | – |
| 1.7 | 22 | 0.33 | 0.47 | 0.89 | 1.93 | – | – | – | – | – |
Dimensions

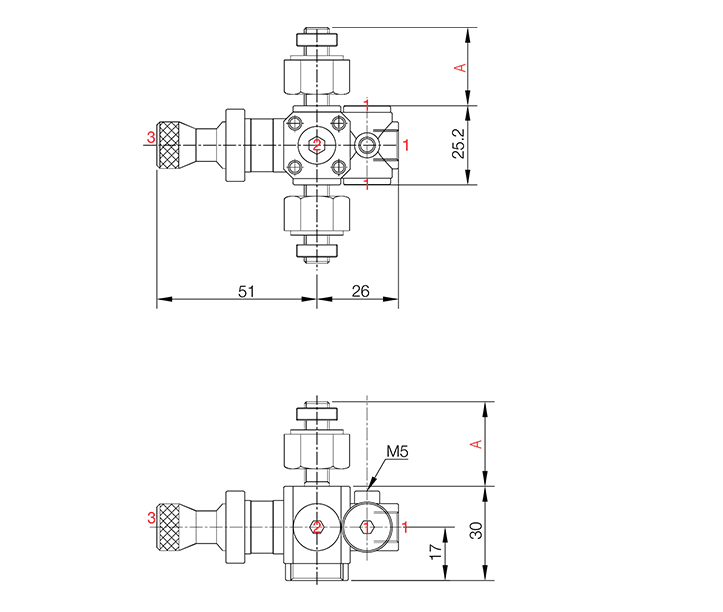

| VSM202: |
| Unit: mm |
|
|
Order Numbers
Spare Parts
| Part Number | Description |
| VC202 | Mini vacuum cartridge, 2-stage |
| VC202P | Mini vacuum cartridge, 2-stage with holding plug |
| VCP-M14 | Holding plug, VC202 |
