Midi Turtle Vacuum Pump

SKU: VTCL3022-2 카테고리 :

설명

VMECA 터틀 펌프 는 Vacuum 필터가 내장되어 있고 진공 시스템에 필요한 모든 구성 요소를 부착하도록 설계되었습니다. 특히, 내장된 VMECA카트리지는 기존의 진공 펌프보다 더 안정적인 진공을 제공하는, 효율적인 진공 시스템을 제공 합니다.

형식표시방법

1. 기본모델

제품코드 설명
VTCL3022-2 Turtle vacuum pump, “L” type 2-Stage, 2-cartridge, Polyester filter, G3/4″ vac ports

2. 에어 절감 장치

제품코드 설명
Blank No air saving kit
ASV Air saving kit integrated with air control valve
AS Air saving kit without air control valve

3. 에어공급밸브

제품코드 설명
Blank No air control valve
A1 Air control valve, AC 110V
A2 Air control valve, AC 220V
A3 Air control valve, DC 24V
D1 Double solenoid, Air control valve, AC 110V
D2 Double solenoid, Air control valve, AC 220V
D3 Double solenoid, Air control valve, DC 24V
  ☛ Double solenoid valve is available only with DN or DL valve terminal option.

4. 진공파기밸브

제품코드 설명
Blank No vacuum release control valve
R1 Vacuum release control valve, AC 110V
R2 Vacuum release control valve, AC 220V
R3 Vacuum release control valve, DC 24V

5. 리드선 취출 방법

제품코드 설명
Blank No air & vacuum release control valves
DN Solenoid terminal, DIN type, No lead wire
DL Solenoid terminal, DIN type, No lead wire, Lamp
CL Solenoid terminal, Connector type, 30 cm lead wire
  ☛ Option “CL” is available only with DC 24V.
2B Solenoid terminal, DIN, 2-in-1 BUS cable
3B Solenoid terminal, DIN, 2-in-1 BUS cable
4B Solenoid terminal, DIN, 2-in-1 BUS cable
  ☛ Option “2B” and “3B” are not available with Double solenoid valve.
  ☛ Option “3B” and “4B” are available only with DC 24V and S2 or S2P vacuum switch.

6. 진공 스위치

제품코드 설명
Blank No vacuum switch
S2 Digital switch, No analog supply, M8-4-pin, NPN
S2P Digital switch, No analog supply, M8-4-pin, PNP
SG2 Digital switch, No analog supply, 2 m lead wire, NPN
SG2P Digital switch, No analog supply, 2 m lead wire, PNP
SG3 Digital switch, Analog supply, 2 m lead wire, NPN
SG3P Digital switch, Analog supply, 2 m lead wire, PNP

7. 체크 밸브 밸브

제품코드 설명
Blank No non-return valve
N Non-return valve
  ☛ The pump with air saving kit option do not require a non-return valve option.

8. 실링재질

제품코드 설명
Blank NBR sealing material
V Viton sealing material
E EPDM sealing material

기술정보

1. 일반기술정보

촤대 진공도 -75 kPa
최대 흡입유량 400 Nl/min
공급압력 4 ~ 6 bar (Max 7 bar)
사용 온도 -20 ~ 80 ℃
소음도 50 ~ 60 dB
중량 – 기본 펌프 555 g

2. 진공흡입유량

최대 진공도 공급압력 진공도별(-kPa) 흡입유량(Nl/m)
-kPa bar 0 10 20 30 40 50 60 70 80 90
75 6 400 366 308 200 104 76 64 44 – –
70 5 390 352 260 164 100 75 46 23.8 – –
60 4 376 316 220 140 92 56 13.6 – – –

3. 진공도달시간

공급압력 에어소모량 Evacuation time in seconds per liter to reach different vacuum level (-kPa) / 진공도달 시간
bar Nl/min 10 20 30 40 50 60 70 80 90
6 208 0.006 0.030 0.047 0.098 0.15 0.20 0.32 – –
5 170 0.009 0.032 0.060 0.128 0.16 0.25 0.43 – –
4 140 0.013 0.037 0.073 0.140 0.19 0.45 – – –

치수정보

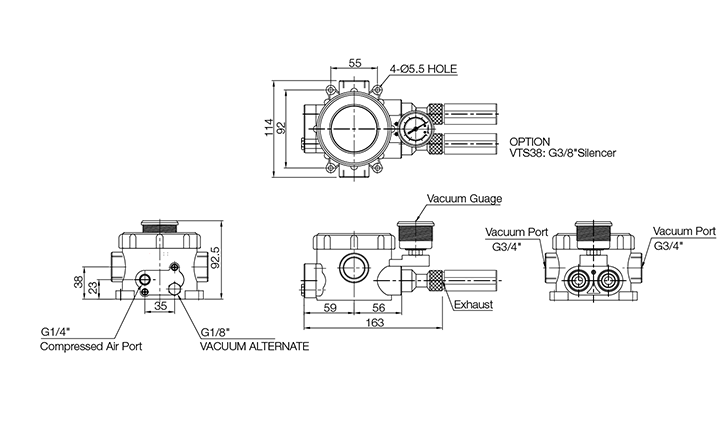

VTCL3022-2: 기본 펌프

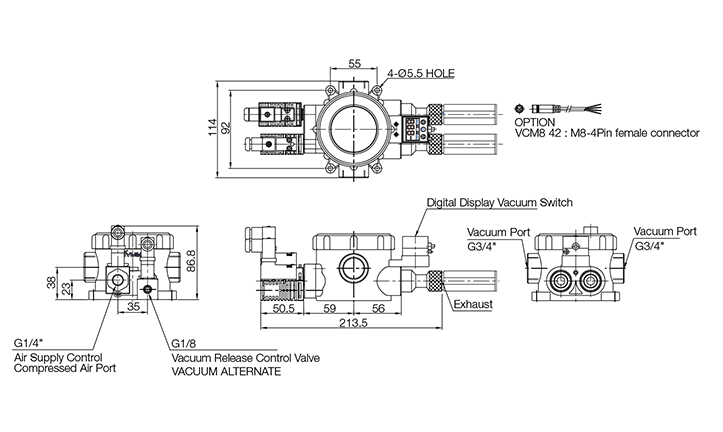

VTCL3022-2 with optional parts: 에어공급밸브, 진공파기밸브, 디지털 진공 스위치 부착형

주문번호

1. 기본 진공 펌프

모델 번호 설명
VTCL3022-2 Turtle midi vacuum pump, “L” type 2-stage 2-cartridge, Vacuum filter

2. 에어공급밸브

모델 번호 설명
VMS14-3-1 2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type
VMS14-3-2 2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type, Lamp
VMS14-3-3 2/2-way sol valve, G1/4″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp
VMS14-2-1 2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type
VMS14-2-2 2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type, Lamp
VMS14-1-1 2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type
VMS14-1-2 2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type, Lamp
MS18-3-1 2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type
MS18-3-2 2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type, Lamp
MS18-3-3 2/2-way sol valve, G1/8″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp
MS18-2-1 2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type
MS18-2-2 2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type, Lamp
MS18-1-1 2/2-way sol valve, G1/8″ Inlet, AC 110V, DIN type
VMS14D-3-1 2/2-way double sol valve, G3/8 In, G1/4 Out, DC 24V, DIN type
VMS14D-3-2 2/2-way double sol valve, G3/8 In, G1/4 Out, DC 24V, DIN type, Lamp
VMS14D-2-1 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 220V, DIN type
VMS14D-2-2 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 220V, DIN type, Lamp
VMS14D-1-1 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 110V, DIN type
VMS14D-1-2 2/2-way double sol valve, G3/8 In, G1/4 Out, AC 110V, DIN type, Lamp

3. 진공 스위치

모델 번호 설명
VP20V-01-F1-C Digital switch, No analog supply, M8-4-pin connector, NPN (S2)
VP20V-03-F1-C Digital switch, No analog supply, M8-4-pin connector, PNP (S2P)
VP20V-01-F1 Digital switch, No analog supply, 2 m lead wire, NPN (SG2)
VP20V-03-F1 Digital switch, No analog supply, 2 m lead wire, PNP (SG2P)
VP20V-01-F1-A Digital switch, Analog supply, 2 m lead wire, NPN (SG3)
VP20V-03-F1-A Digital switch, Analog supply, 2 m lead wire, PNP (SG3P)

4. 진공 카트리지

모델 번호 설명
VCL302 Midi vacuum cartridge, “L” type 2-stage
VCL302P Midi vacuum cartridge, “L” type 2-stage, Holding plug
VCL302-N Midi vacuum cartridge, “L” type 2-stage, Non-return valve ☛ Pump with air saving kit
VCL302P-N Midi vacuum cartridge, “L” type 2-stage, Holding plug, Non-return valve ☛ Pump w/Air saving kit

5. 기타 부품

모델 번호 설명
VTFE502 Filter element, Polyester filter, 5-micron
VTTS-M25 Twofold silencer for VC303 & VCL303
VTG-18 Vacuum gauge, Dial type, No mounting nut
VTF3412-C Top Filter Cover w/Gasket
VTF3412-H Filter Element Retainer
