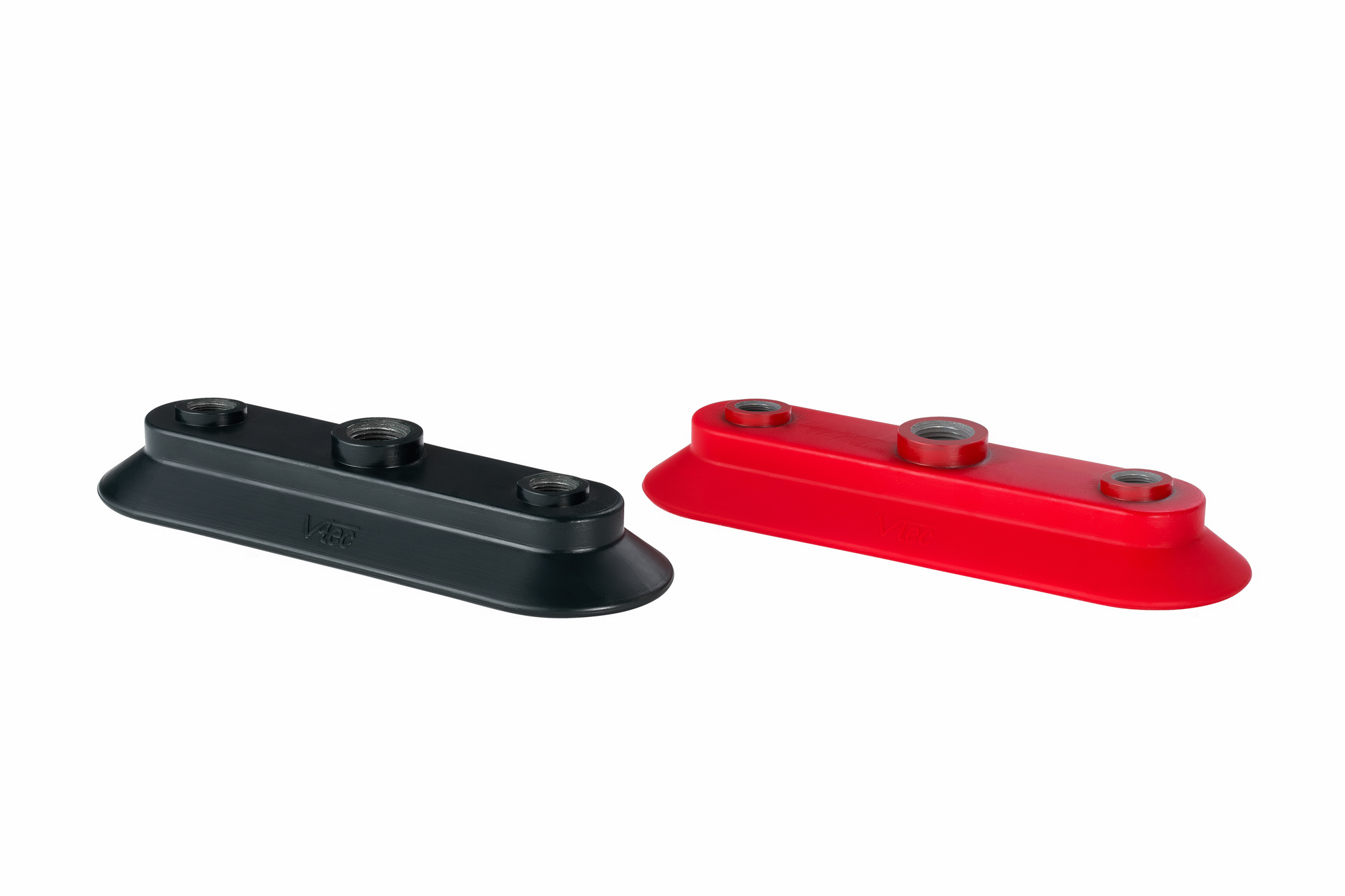

VOC60X180 series
Description
Features and Strengths:
Examples of use:
Build an Order #
1. Suction Cup
| Part Number | Description |
| VOC60X180-N-38F | Oval-curved suction cup, 60×180 mm, Nitrile (NBR), G3/8 female |
| VOC60X180-S-38F | Oval-curved suction cup, 60×180 mm, Silicone, G3/8 female |
| VOC60X180-WS-38F | Oval-curved suction cup, 60×180 mm, White silicone, G3/8 female |
| VOC60X180-WS(FDA)-38F | Oval-curved suction cup, 60×180 mm, White silicone (FDA), G3/8 female |
| VOC60X180-HS-38F | Oval-curved suction cup, 60×180 mm, High-temp silicone, G3/8 female |
| VOC60X180-CS-38F | Oval-curved suction cup, 60×180 mm, Conductive silicone, G3/8 female |
| VOC60X180-U-38F | Oval-curved suction cup, 60×180 mm, Urethane, G3/8 female |
| VOC60X180-A-38F | Oval-curved suction cup, 60×180 mm, Mark free, G3/8 female |
Specifications
1. Recommended Lifting Maximum Force
| Size | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 61 x 180 | 67.0 | 19.1 | 54.2 | 75.7 | 15.28 | 43.36 | 60.56 |
2. Weight
| Part Number | Description | Weight (g) |
| VOC60X180-N-38F | Oval-curved cup, 60×180 mm, Nitrile (NBR), G3/8 female | 213.4 |
| VOC60X180-S-38F | Oval-curved cup, 60×180 mm, Silicone, G3/8 female | 204.0 |
| VOC60X180-WS-38F | Oval-curved cup, 60×180 mm, White silicone, G3/8 female | 204.6 |
| VOC60X180-WS(FDA)-38F | Oval-curved cup, 60×180 mm, White silicone (FDA), G3/8 female | 204.6 |
| VOC60X180-HS-38F | Oval-curved cup, 60×180 mm, High-temp silicone, G3/8 female | 205.0 |
| VOC60X180-CS-38F | Oval-curved cup, 60×180 mm, Conductive silicone, G3/8 female | 204.9 |
| VOC60X180-U-38F | Oval-curved cup, 60×180 mm, Urethane, G3/8 female | 215.8 |
| VOC60X180-A-38F | Oval-curved cup, 60×180 mm, Mark free, G3/8 female | 143.1 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

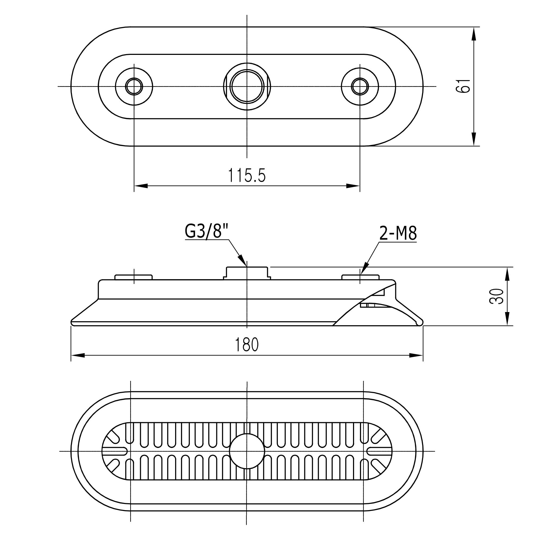

Dimensions
VOC60X180
|
|
  |
| Unit: mm |
| Legend | A | B | C | D |
| Dimension | 180 | 30 | 115.5 | 61 |
Order Numbers
Order Numbers
| Part Number | Description |
| VOC60X180-N-38F | Oval-curved suction cup, 60×180 mm, Nitrile (NBR), G3/8 female |
| VOC60X180-S-38F | Oval-curved suction cup, 60×180 mm, Silicone, G3/8 female |
| VOC60X180-WS-38F | Oval-curved suction cup, 60×180 mm, White silicone, G3/8 female |
| VOC60X180-WS(FDA)-38F | Oval-curved suction cup, 60×180 mm, White silicone (FDA), G3/8 female |
| VOC60X180-HS-38F | Oval-curved suction cup, 60×180 mm, High-temp silicone, G3/8 female |
| VOC60X180-CS-38F | Oval-curved suction cup, 60×180 mm, Conductive silicone, G3/8 female |
| VOC60X180-U-38F | Oval-curved suction cup, 60×180 mm, Urethane, G3/8 female |
| VOC60X180-A-38F | Oval-curved suction cup, 60×180 mm, Mark free, G3/8 female |
Downloads
Catalog & CAD files| CAD 2D File | |
| VOC60X180 Suction Cups |
|
|---|---|
| CAD 3D File | |
| VOC60X180 Suction Cups |
|
| Catalog | |
| VOC60X180 Suction Cups |
|
