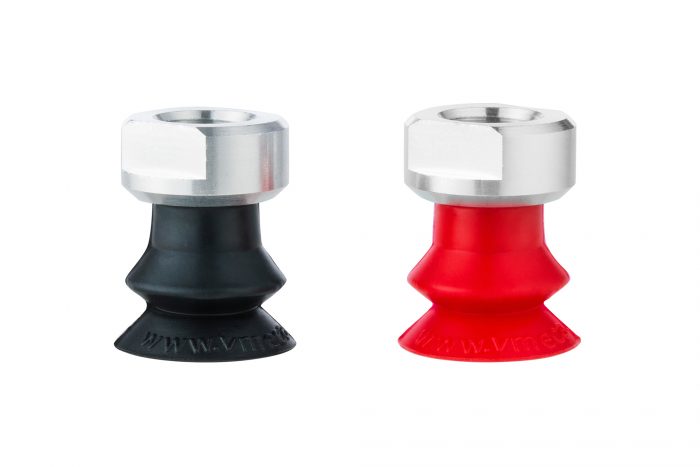

VB17 series

VB17 series

Single Bellows Suction Cups

SKU: VB17 Category:

Description

Features and Strengths:

Examples of use:

Build an Order #

1. Suction Cup

Symbol Description
VB17-N Single-bellows suction cup, 17 mm, Nitrile
VB17-S Single-bellows suction cup, 17 mm, Silicone
VB17-WS Single-bellows suction cup, 17 mm, White silicone
VB17-WS(FDA) Single-bellows suction cup, 17 mm, White silicone (FDA)
VB17-HS Single-bellows suction cup, 17 mm, High-temp silicone
VB17-CS Single-bellows suction cup, 17 mm, Conductive
VB17-U Single-bellows suction cup, 17 mm, Urethane
VB17-A Single-bellows suction cup, 17 mm, Mark free
VB17-PU Single-bellows suction cup, 17 mm, Polyurethane

2. Fitting

Symbol Description
Blank No fitting
M-18F Fitting, Mesh filter, G1/8 female
M-M518MF Fitting, Mesh filter, G1/8 male – M5 female
18F Fitting, G1/8 female
M518MF Fitting, G1/8 male – M5 female
18F-EV Efficiency valve fitting, G1/8 female
M518MF-EV Efficiency valve fitting, G1/8 male – M5 female

Specifications

1. Recommended Lifting Maximum Force

Diameter Volume Lifting Force (↑), Kg
(mm) (cm³) -20 kPa -60 kPa -90 kPa
18.5 1.50 0.40 0.80 1.00

2. Weight

Part Number Description Weight (g)
VB17-N Single-bellows suction cup, 17 mm, Nitrile 1.01
VB17-S Single-bellows suction cup, 17 mm, Silicone 0.91
VB17-WS Single-bellows suction cup, 17 mm, White silicone 0.94
VB17-WS(FDA) Single-bellows suction cup, 17 mm, White silicone (FDA) 0.94
VB17-HS Single-bellows suction cup, 17 mm, High-temp silicone 0.97
VB17-CS Single-bellows suction cup, 17 mm, Conductive 0.99
VB17-U Single-bellows suction cup, 17 mm, Urethane 0.96
VB17-A Single-bellows suction cup, 17 mm, Mark free 1.31
350-000-4310 Fitting, Mesh filter, G1/8 female 3.26
350-000-5209 Fitting, Mesh filter, G1/8 male – M5 female 1.92
350-000-3310 Fitting, G1/8 female 3.20
350-000-3209 Fitting, G1/8 male – M5 female 1.82
350-010-3310 Efficiency valve fitting, G1/8 female 3.31
350-010-4209 Efficiency valve fitting, G1/8 male – M5 female 1.94

3. Material Specifications

Material Hardness Shore (°) Color Temperature (℃)
NBR 60 Black -20 ~ 110
Silicone 55 Red -70 ~ 200
White Silicone 55 Translucent White -70 ~ 200
White Silicone (FDA) 55 Translucent White -70 ~ 200
High Temp. Silicone 50 Blue -70 ~ 280
Conductive Material 70 Smoky Black -45 ~ 90
Urethane 60 Dark Green 0 ~ 100
Mark Free 75 Smoky Black -10 ~ 100

4. Material Resistance

Description Wear Resistance Oil Weather/Ozone Alcohol Acid
NBR Excellent Excellent Fair Good Fair
Silicone Good Poor Excellent Good Poor
White Silicone Good Poor Excellent Good Poor
High Temp. Silicone Good Poor Excellent Good Poor
Conductive Silicone Good Poor Excellent Good Poor
Urethane Excellent Excellent Excellent Fair Poor
Mark Free Good Excellent Excellent Good Excellent

Dimensions

VB17

Rubber Part, M518MF and 18F

Unit: mm
Legend A B C D E F
Dimension 18.5 16.6 10 16 7.5 8

Order Numbers

Part Numbers

Part Number Description
G1/8″ Female, Mesh Filter
VB17-NM-18F Single-bellows cup, 17 mm, Nitrile, G1/8″ female, Mesh filter
VB17-SM-18F Single-bellows cup, 17 mm, Silicone, G1/8″ female, Mesh filter
VB17-WSM-18F Single-bellows cup, 17 mm, White silicone, G1/8″ female, Mesh filter
VB17-WS(FDA)M-18F Single-bellows cup, 17 mm, White silicone (FDA), G1/8″ female, Mesh filter
VB17-HSM-18F Single-bellows cup, 17 mm, High-temp silicone, G1/8″ female, Mesh filter
VB17-CSM-18F Single-bellows cup, 17 mm, Conductive, G1/8″ female, Mesh filter
VB17-UM-18F Single-bellows cup, 17 mm, Urethane, G1/8″ female, Mesh filter
VB17-AM-18F Single-bellows cup, 17 mm, Mark free, G1/8″ female, Mesh filter
G1/8″ Male-M5 Female, Mesh Filter
VB17-NM-M518MF Single-bellows cup, 17 mm, Nitrile, G1/8″ male-M5 female, Mesh filter
VB17-SM-M518MF Single-bellows cup, 17 mm, Silicone, G1/8″ male-M5 female, Mesh filter
VB17-WSM-M518MF Single-bellows cup, 17 mm, White silicone, G1/8″ male-M5 female, Mesh filter
VB17-WS(FDA)M-M518MF Single-bellows cup, 17 mm, White silicone (FDA), G1/8″ male-M5 female, Mesh filter
VB17-HSM-M518MF Single-bellows cup, 17 mm, High-temp silicone, G1/8″ male-M5 female, Mesh filter
VB17-CSM-M518MF Single-bellows cup, 17 mm, Conductive, G1/8″ male-M5 female, Mesh filter
VB17-UM-M518MF Single-bellows cup, 17 mm, Urethane, G1/8″ male-M5 female, Mesh filter
VB17-AM-M518MF Single-bellows cup, 17 mm, Mark free, G1/8″ male-M5 female, Mesh filter
G1/8″ Female
VB17-N-18F Single-bellows cup, 17 mm, Nitrile, G1/8″ female
VB17-S-18F Single-bellows cup, 17 mm, Silicone, G1/8″ female
VB17-WS-18F Single-bellows cup, 17 mm, White silicone, G1/8″ female
VB17-WS(FDA)-18F Single-bellows cup, 17 mm, White silicone (FDA), G1/8″ female
VB17-HS-18F Single-bellows cup, 17 mm, High-temp silicone, G1/8″ female
VB17-CS-18F Single-bellows cup, 17 mm, Conductive, G1/8″ female
VB17-U-18F Single-bellows cup, 17 mm, Urethane, G1/8″ female
VB17-A-18F Single-bellows cup, 17 mm, Mark free, G1/8″ female
G1/8″ Male-M5 Female
VB17-N-M518MF Single-bellows cup, 17 mm, Nitrile, G1/8″ male-M5 female
VB17-S-M518MF Single-bellows cup, 17 mm, Silicone, G1/8″ male-M5 female
VB17-WS-M518MF Single-bellows cup, 17 mm, White silicone, G1/8″ male-M5 female
VB17-WS(FDA)-M518MF Single-bellows cup, 17 mm, White silicone (FDA), G1/8″ male-M5 female
VB17-HS-M518MF Single-bellows cup, 17 mm, High-temp silicone, G1/8″ male-M5 female
VB17-CS-M518MF Single-bellows cup, 17 mm, Conductive, G1/8″ male-M5 female
VB17-U-M518MF Single-bellows cup, 17 mm, Urethane, G1/8″ male-M5 female
VB17-A-M518MF Single-bellows cup, 17 mm, Mark free, G1/8″ male-M5 female
G1/8″ Female, Efficiency Valve
VB17-N-18F Single-bellows cup, 17 mm, Nitrile, G1/8″ female, Eff. valve
VB17-S-18F Single-bellows cup, 17 mm, Silicone, G1/8″ female, Eff. valve
VB17-WS-18F Single-bellows cup, 17 mm, White silicone, G1/8″ female, Eff. valve
VB17-WS(FDA)-18F Single-bellows cup, 17 mm, White silicone (FDA), G1/8″ female, Eff. valve
VB17-HS-18F Single-bellows cup, 17 mm, High-temp silicone, G1/8″ female, Eff. valve
VB17-CS-18F Single-bellows cup, 17 mm, Conductive, G1/8″ female, Eff. valve
VB17-U-18F Single-bellows cup, 17 mm, Urethane, G1/8″ female, Eff. valve
VB17-A-18F Single-bellows cup, 17 mm, Mark free, G1/8″ female, Eff. valve
G1/8″ Male-M5 Female, Efficiency Valve
VB17-N-M518MF Single-bellows cup, 17 mm, Nitrile, G1/8″ male-M5 female, Eff. valve
VB17-S-M518MF Single-bellows cup, 17 mm, Silicone, G1/8″ male-M5 female, Eff. valve
VB17-WS-M518MF Single-bellows cup, 17 mm, White silicone, G1/8″ male-M5 female, Eff. valve
VB17-WS(FDA)-M518MF Single-bellows cup, 17 mm, White silicone (FDA), G1/8″ male-M5 female, Eff. valve
VB17-HS-M518MF Single-bellows cup, 17 mm, High-temp silicone, G1/8″ male-M5 female, Eff. valve
VB17-CS-M518MF Single-bellows cup, 17 mm, Conductive, G1/8″ male-M5 female, Eff. valve
VB17-U-M518MF Single-bellows cup, 17 mm, Urethane, G1/8″ male-M5 female, Eff. valve
VB17-A-M518MF Single-bellows cup, 17 mm, Mark free, G1/8″ male-M5 female, Eff. valve
Rubber Part
VB17-N Single-bellows suction cup, 17 mm, Nitrile
VB17-S Single-bellows suction cup, 17 mm, Silicone
VB17-WS Single-bellows suction cup, 17 mm, White silicone
VB17-WS(FDA) Single-bellows suction cup, 17 mm, White silicone (FDA)
VB17-HS Single-bellows suction cup, 17 mm, High-temp silicone
VB17-CS Single-bellows suction cup, 17 mm, Conductive
VB17-U Single-bellows suction cup, 17 mm, Urethane
VB17-A Single-bellows suction cup, 17 mm, Mark free
Fitting
350-000-4310 Fitting, Mesh filter, G1/8 female
350-000-5209 Fitting, Mesh filter, G1/8 male – M5 female
350-000-3310 Fitting, G1/8 female
350-000-3209 Fitting, G1/8 male – M5 female
350-010-3310 Efficiency valve fitting, G1/8 female
350-010-4209 Efficiency valve fitting, G1/8 male – M5 female
REQUEST A QUOTE

Downloads

Catalog & CAD files
CAD 2D File
VB17 Suction Cups
CAD 3D File
VB17 Suction Cups
Catalog
VB17 Suction Cups
