ML600
Description

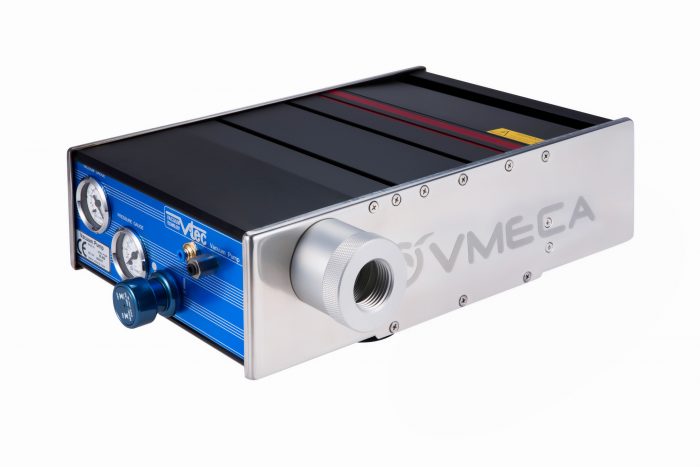

The largest compressed air-driven vacuum pump on the market place, that is comparatively compact and light weight. This pump mainly for the application wherever larger air volume to be evacuated or to compensate for the leakage flow must remarkable application for this pump will be in conveying system for granules, transferring bulk materials and gauge and mechanical on/off valve as standard. Air saving kit, solenoid valve, non-return valve, and with VITON or EPDM as seal options.
Build an Order #
1. Basic Model
| Symbol | Description |
| ML600 | ML600 mega pump |
2. Exhaust Type
| Symbol | Description |
| Blank | Free flow exhaust duct |
| CP | Central Exhaust 1-Round Pipe |
3. Air Saving Kit
| Symbol | Description |
| Blank | No air control valve |
| AS | Air saving kit with air control valve |
4. Non-Return Valve
| Symbol | Description |
| Blank | No non-return valve |
| N | Non-Return valve |
|  | ☛ The pump with air saving kit option does not require a non-return valve option. |
5. Sealing Material
| Symbol | Description |
| Blank | NBR sealing material |
| V | Viton sealing material |
| E | EPDM sealing material |
Specifications
1. General Specifications
| Max Vacuum Level | -92 kPa |
| Open Vacuum Flow | 7,230 Nl/min |
| Feed Pressure | 6 bar (Max 7 bar) |
| Air Consumption | 2,520 Nl/min |
| Temperature | -20 ~ 80 ℃ |
| Weight – Basic pump | 5,920 g |
2. Vacuum Flow
| Max Vacuum | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 92 | 6 | 7230 | 5064 | 3348 | 1740 | 870 | 648 | 432 | 240 | 120 | 19.2 |
3. Evacuation Time
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 6 | 2520 | 0.0009 | 0.0021 | 0.008 | 0.011 | 0.02 | 0.03 | 0.06 | 0.10 | 0.25 |
Dimensions
| ML600: Central Exhaust 2-Round Pipe |
| Unit: mm |
|
|
| ML600: Free Flow Exhaust Duct |
| Unit: mm |
|
|
Order Numbers
Basic Vacuum Pump
| Part Number | Description |
| ML600 | Mega pump, ML600 |
| 15A7021 | NBR sealing kit |
| 15A7022 | Viton sealing kit |
| 15A7023 | EPDM sealing kit |
Downloads
Catalog & CAD files| CAD 2D File | |
| ML600 |
|
|---|---|
| CAD 3D File | |
| ML600 |
|
| Catalog | |
| ML600 |
|
