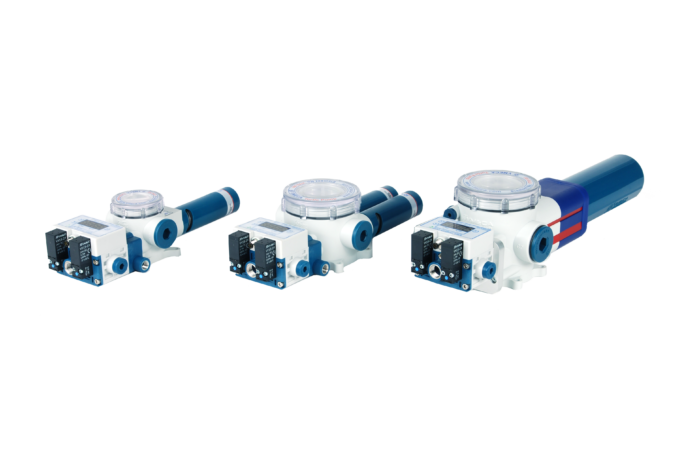

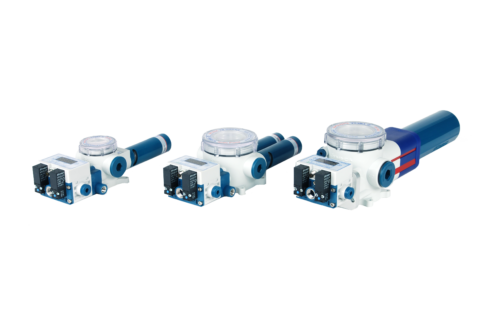

Mega Eco Turtle Pump
Description
Mega Eco Turtle Pump is multi-functioning control valve optimised for use (digital air-saving + air control + release control + digital vacuum sensing) with all advantages of Turtle pump. Vacuum Generators.
- A multi-functioning control valve optimised for use with VMECA’s turtle pump range
- Easy and convenient wiring with single M8 X 6 pin connector to control all functions
- Integrated air saving kit, digital vacuum switch, air on/off valve and blow release valve
- Built-in air saving function, blocking air consumption when vacuum is reached
- Helping to reduce air consumption by up to 90%
- Available in three different types of sealing material: NBR, Viton and EPDM

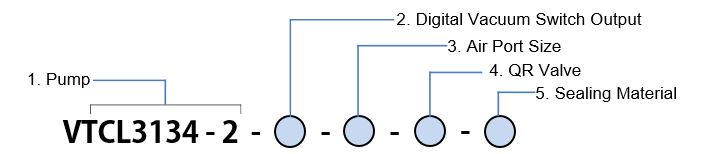

Build a Model #
1. Basic Model
| Symbol | Description |
| VTC3134-2 | Mega Eco Turtle Pump, VC303, 4-cartridge, Vacuum filter, Silencer |
| VTC3133-2 | Mega Eco Turtle Pump, VC303, 3-cartridge, Vacuum filter, Silencer |
| VTC3132-2 | Mega Eco Turtle Pump, VC303, 2-cartridge, Vacuum filter, Silencer |
| VTC3124-2 | Mega Eco Turtle Pump, VC302, 4-cartridge, Vacuum filter, Silencer |
| VTC3123-2 | Mega Eco Turtle Pump, VC302, 3-cartridge, Vacuum filter, Silencer |
| VTC3122-2 | Mega Eco Turtle Pump, VC302, 2-cartridge, Vacuum filter, Silencer |
| VTCL3134-2 | Mega Eco Turtle Pump, VCL303, 4-cartridge, Vacuum filter, Silencer |
| VTCL3133-2 | Mega Eco Turtle Pump, VCL303, 3-cartridge, Vacuum filter, Silencer |
| VTCL3132-2 | Mega Eco Turtle Pump, VCL303, 2-cartridge, Vacuum filter, Silencer |
| VTCL3124-2 | Mega Eco Turtle Pump, VCL302, 4-cartridge, Vacuum filter, Silencer |
| VTCL3123-2 | Mega Eco Turtle Pump, VCL302, 3-cartridge, Vacuum filter, Silencer |
| VTCL3122-2 | Mega Eco Turtle Pump, VCL302, 2-cartridge, Vacuum filter, Silencer |
2. Digital Vacuum Switch Output
| Symbol | Description |
| EC | ECO-Control Pump, NPN Type |
| ECP | ECO-Control Pump, PNP Type |
3. Vacuum Port Size
| Symbol | Description |
| 14 | G1/4″ Port |
| 10 | Ø10 one-touch hose fitting type |
4. QR Valve
| Symbol | Description |
| Blank | No QR Valve |
| Q | QR Valve |
5. Sealing Material
| Symbol | Description |
| Blank | NBR seal |
| V | Viton seal |
| E | EDPM seal |
Specifications
1. General Specifications
| Max Vacuum Level | -92 kPa |
| Open Vacuum Flow | 1,364 Nl/min |
| Feed Pressure | 2.2 ~ 4 bar (Max 7 bar) |
| Temperature | -20 ~ 80 ℃ |
| Noise Level | 50 ~ 60 dB |
| Weight – Basic Pump | ____ g |
2. Vacuum Flow
| Max Vacuum Level | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 92 | 4 | 1364 | 616 | 510 | 376 | 276 | 172 | 93 | 69 | 28 | 8.4 |
| 92 | 3 | 1352 | 608 | 424 | 256 | 132 | 128 | 88 | 66 | 26 | 7.6 |
| 75 | 2.2 | 1208 | 490 | 352 | 212 | 126 | 114 | 66 | 18 | – | – |
3. Evacuate Time
| Feed Pressure | Air Consumption | Evacuation time in seconds per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 4 | 608 | 0.003 | 0.010 | 0.01 | 0.02 | 0.05 | 0.10 | 0.15 | 0.25 | 0.85 |
| 3 | 472 | 0.004 | 0.018 | 0.02 | 0.07 | 0.09 | 0.16 | 0.20 | 0.30 | 0.95 |
| 2.2 | 388 | 0.005 | 0.020 | 0.03 | 0.08 | 0.10 | 0.18 | 0.40 | – | – |
Dimensions
| VTC313( )-2-EC(P): Mega Eco Turtle Pump (without QR) |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2-1 | Vacuum Port, G1″ |
| 2-2 | Vacuum Port, G3/4 |
| 3 | Exhaust Port |
| 4 | Vacuum Release Port, G1/4″ |
| VTC313( )-EC(P)-Q: Mega Eco Turtle Pump with QR Valve |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2-1 | Vacuum Port, G1″ |
| 2-2 | Vacuum Port, G3/4 |
| 3 | Exhaust Port |
| 4 | Vacuum Release Port, G1/4″ |
Eco-Control Unit
> Eco-Control Unit (Eco Turtle Pump)
- A multi-functioning control valve optimised for use with VMECA’s turtle pump range
- Easy and convenient wiring with single M8 X 6 pin connector to control all functions
- Integrated air saving kit, digital vacuum switch, air on/off valve and blow release valve
- Built-in air saving function, blocking air consumption when vacuum is reached
- Helping to reduce air consumption by up to 90%
- Available in three different types of sealing material: NBR, Viton and EPDM
> Air Saving System
