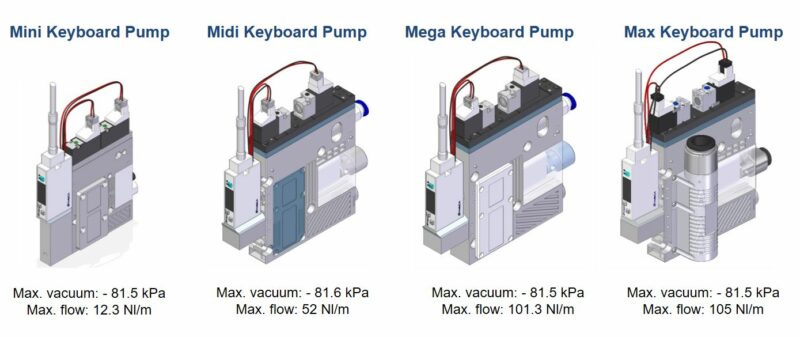

Eco Keyboard Pump (Midi, Mega)
Description

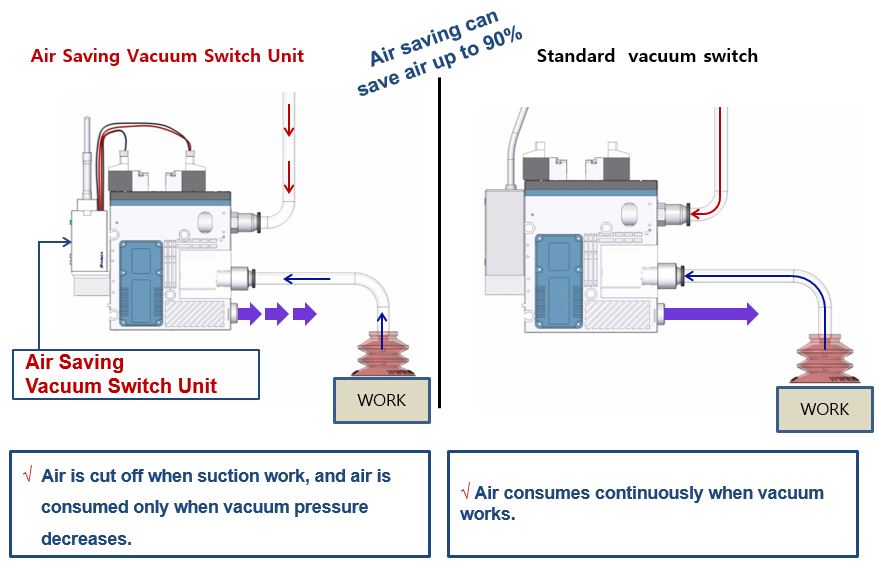

Vacuum Generators. Eco Keyboard Pump is stack-able vacuum generator. Especially Eco Keyboard pump has digitized built-in Air-Saving (AS) function integrated digital vacuum switch Each pump creates vacuum as an individual pump. The advantages of this unit is that it can be operated using just two control valve while retaining individual vacuum lines separate to one another, therefore if any leakage or surface deformation occurs and one pad loses it vacuum, it does not effect the vacuum level in the other pads.
Air Saving Vacuum Switch Unit
Build a Model #

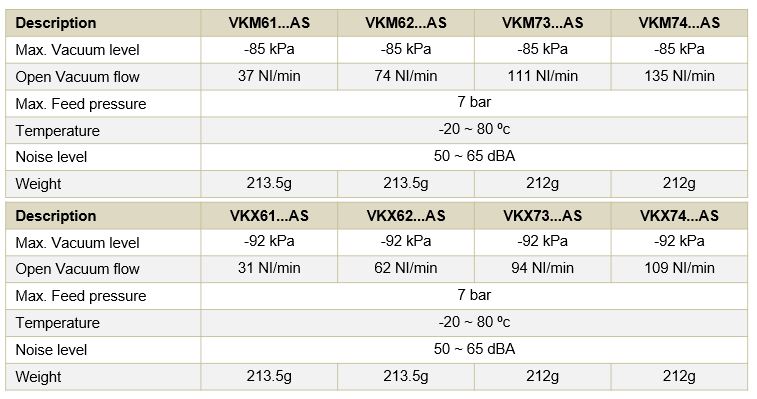

Specifications
1. General Specifications

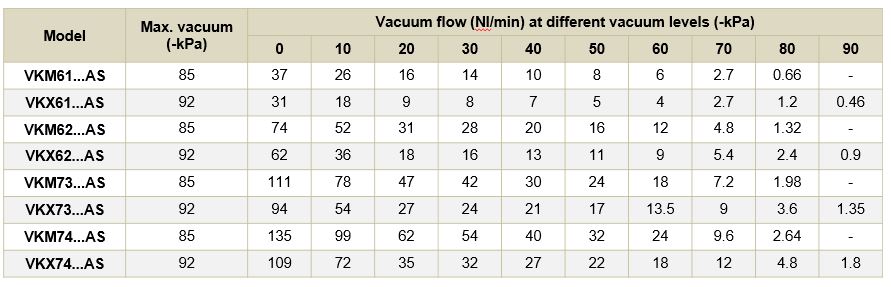

2. Vacuum Flow
Dimensions
| VKM62XS1: Single Unit, Connector type Valve, Digital Vacuum Switch |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, G1/8″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XS1: Single Unit, DIN type Valve, Digital Vacuum Switch |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, G1/8″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XS1: Single Unit, Connector type Double Sol Valve, Digital Vacuum Switch |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, G1/8″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XM(2~8): Manifold Unit, Connector type Valve, Digital Vacuum Switch |
| Unit: mm |
| Stack | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| A | 52.8 | 69.8 | 86.8 | 103.8 | 120.8 | 137.8 | 154.8 |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XM(2~8): Manifold Unit, DIN type Valve, Digital Vacuum Switch |
| Unit: mm |
| Stack | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| A | 52.8 | 69.8 | 86.8 | 103.8 | 120.8 | 137.8 | 154.8 |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XM(2~8): Manifold Unit, Connector type Double Sol Valve, Digital Vacuum Switch |
| Unit: mm |
| Stack | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| A | 52.8 | 69.8 | 86.8 | 103.8 | 120.8 | 137.8 | 154.8 |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XE(2~8): Manifold Unit with Central Exhaust Unit, Connector type Valve, Digital Vacuum Switch |
| Unit: mm |
| Stack | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| A | 52.8 | 69.8 | 86.8 | 103.8 | 120.8 | 137.8 | 154.8 |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port, G3/8″ |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XE(2~8): Manifold Unit with Central Exhaust Unit, DIN type Valve, Digital Vacuum Switch |
| Unit: mm |
| Stack | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| A | 52.8 | 69.8 | 86.8 | 103.8 | 120.8 | 137.8 | 154.8 |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port, G3/8″ |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |
| VKM62XE(2~8): Manifold Unit with Central Exhaust Unit, Connector type Double Sol Valve, Digital Vacuum Switch |
| Unit: mm |
| Stack | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| A | 52.8 | 69.8 | 86.8 | 103.8 | 120.8 | 137.8 | 154.8 |
| No | Description |
| 1 | Compressed-Air Port, G1/4″ |
| 2 | Vacuum Port, ∅6 or ∅8 |
| 3 | Exhaust Port, G3/8″ |
| 4 | Air Control Valve |
| 5 | Vacuum Release Control Valve |
| 6 | Vacuum Switch |

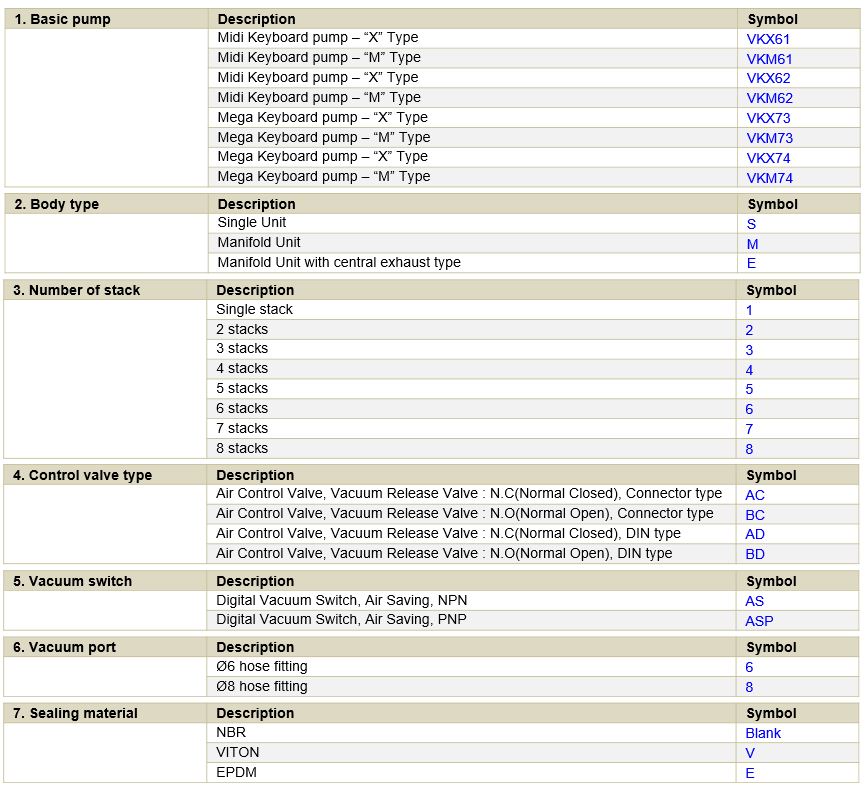

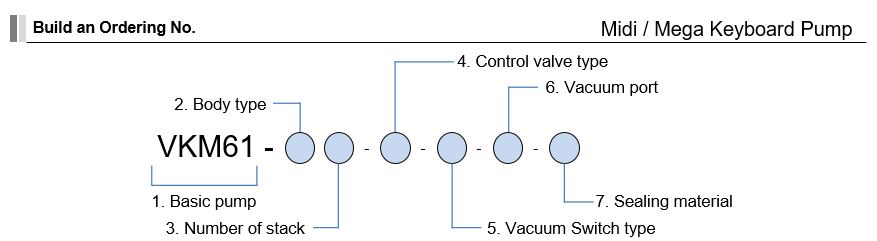

Order Numbers
Vacuum Pumps & Spare Parts
| Part Number | Description |
| FCK62-A3-6 | Filter Cover Case, 6 mm Push-In Fitting |
| FCK62-A3-6-N | Filter Cover Case, 6 mm Push-In Fitting, Gasket |
| FCK62-F3-6 | Filter Cover Case, 6 mm Push-In Fitting, Filter element |
| FCK62-F3-6-N | Filter Cover Case, 6 mm Push-In Fitting, Gasket, Filter element |
| FCK62-A3-8 | Filter Cover Case, 8 mm Push-In Fitting |
| FCK62-A3-8-N | Filter Cover Case, 8 mm Push-In Fitting, Gasket |
| FCK62-F3-8 | Filter Cover Case, 8 mm Push-In Fitting, Filter element |
| FCK62-F3-8-N | Filter Cover Case, 8 mm Push-In Fitting, Gasket, Filter element |
| VTFE-K62 | Filter element |
Downloads
Catalog & CAD files| Catalog | |
| Eco-Keyboard Pump |
|
|---|---|
