Description

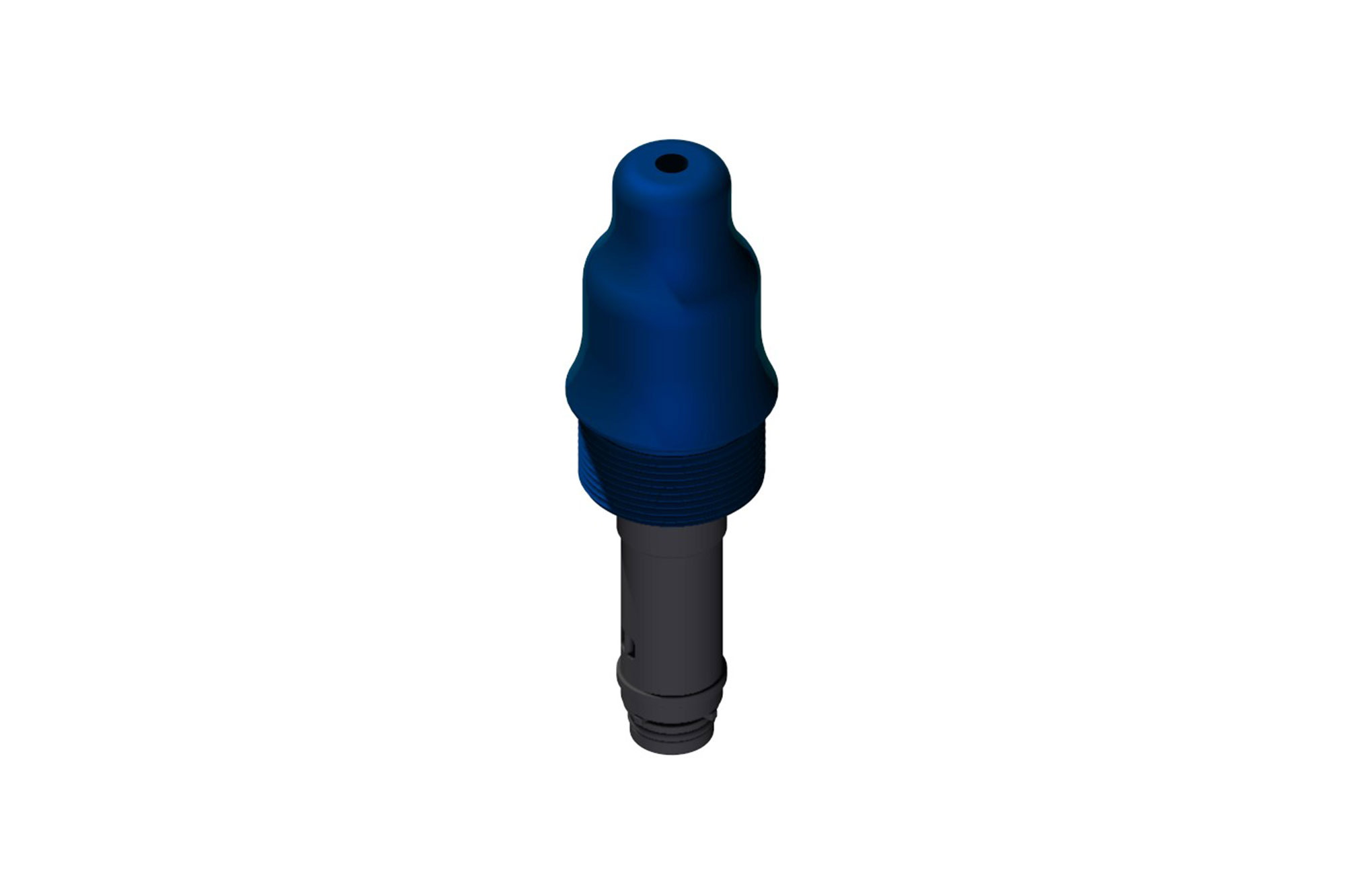

VMECA Mini Premium Vacuum Cartridges are very suitable for handling small products such as semiconductor chips and other electronic components. You can design a very compact vacuum system with the mini cartridge.
Specifications
1. General Specifications
| Max Vacuum Level |
-94 kPa |
| Open Vacuum Flow |
113 Nl/min |
| Feed Pressure |
5 ~ 6 bar (Max 7 bar) |
| Air Consumption |
83.5 Nl/min @ 6 bar |
| Temperature |
-20 ~ 80 ℃ |
| Weight |
15.28 g |
2. Vacuum Flow
| Max Vacuum |
Feed Pressure |
Vacuum Flow (Nl/min) at different vacuum level (-kPa) |
| -kPa |
bar |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
| 94 |
5.5 |
113 |
91 |
69 |
48 |
30 |
26 |
22 |
17 |
11 |
2.8 |
| 93.5 |
6 |
111 |
97 |
76.5 |
54 |
34 |
25 |
21 |
16 |
9.5 |
2.3 |
| 90 |
5 |
112 |
85 |
63 |
43 |
37 |
27 |
22 |
17 |
11 |
3.1 |
3. Evacuation Time
| Feed Pressure |
Air Consumption |
Evacuation time in sec per liter to reach different vacuum level (-kPa) |
| bar |
Nl/min |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
| 5.5 |
77 |
0.037 |
0.13 |
0.26 |
0.41 |
0.54 |
0.86 |
1.2 |
1.6 |
5.0 |
| 6 |
83.5 |
0.035 |
0.078 |
0.12 |
0.13 |
0.33 |
0.83 |
1.15 |
1.76 |
5.8 |
| 5 |
70.5 |
0.039 |
0.15 |
0.27 |
0.49 |
0.60 |
0.94 |
2.09 |
2.82 |
4.83 |
