VTF-06-IN
Build an Order #
Basic Model
| Symbol | Description |

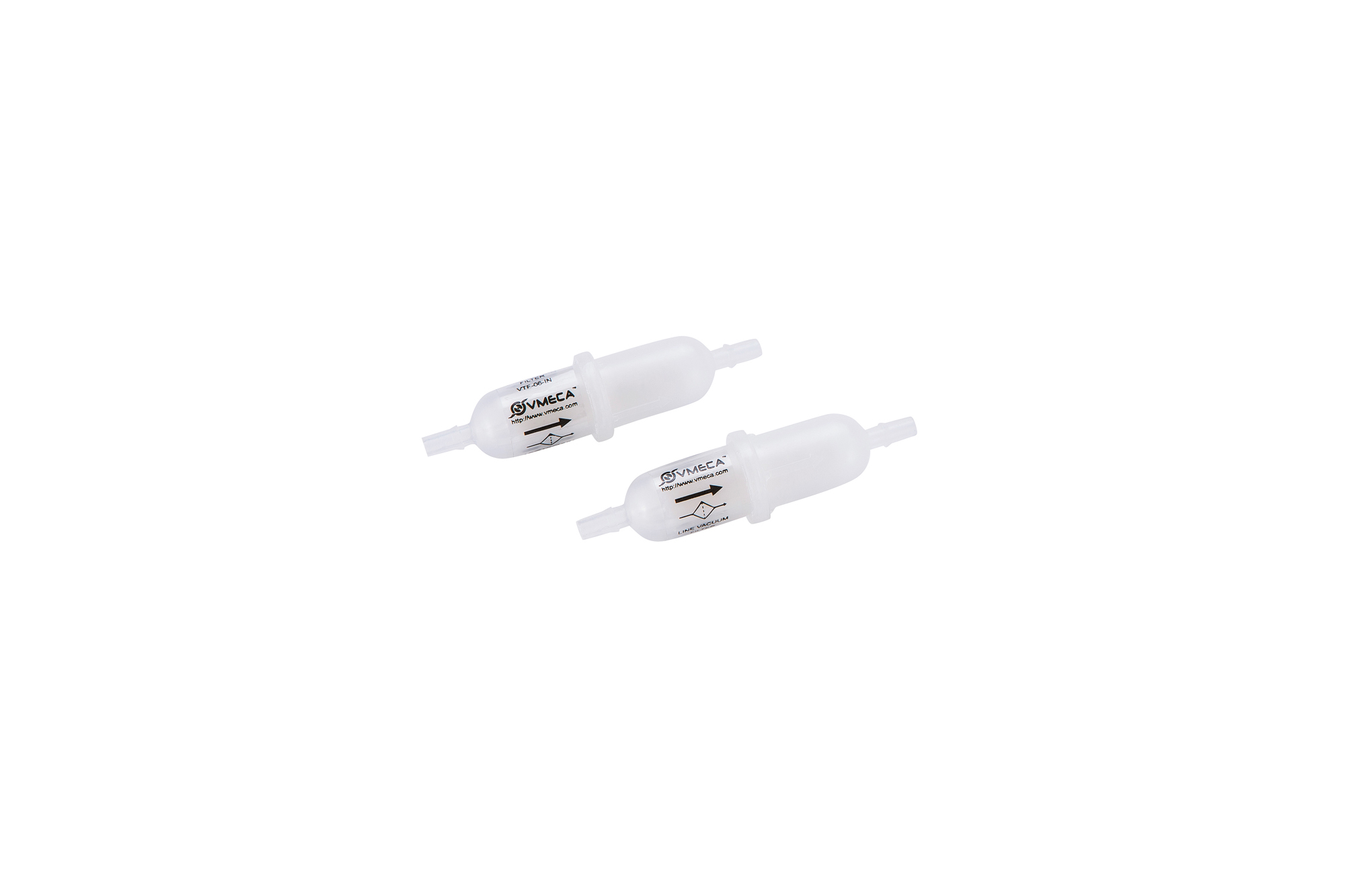

| VTF-06-IN | Line vacuum filter, 20-micron, 4 mm tube inner-dia |
Specifications
General Specifications
| Filtering Rate | 20 μm |
| Internal Volume | 4 cm² |
| Connection Size (ID) | 4 mm |
| Temperature | 0 ~ 60 ℃ |
| Weight | 4 g |
Dimensions
| VTF-06-IN: |
Order Numbers
Basic Model & Spare Part
| Part Number | Description |
| VTF-06-IN | Line vacuum filter, 20-micron, 4 mm tube inner-dia |
Downloads
Catalog & CAD files| CAD 2D File | |
| VTF-06-IN |
|
|---|---|
| CAD 3D File | |
| VTF-06-IN |
|
| Catalog | |
| VTF-06-IN |
|
