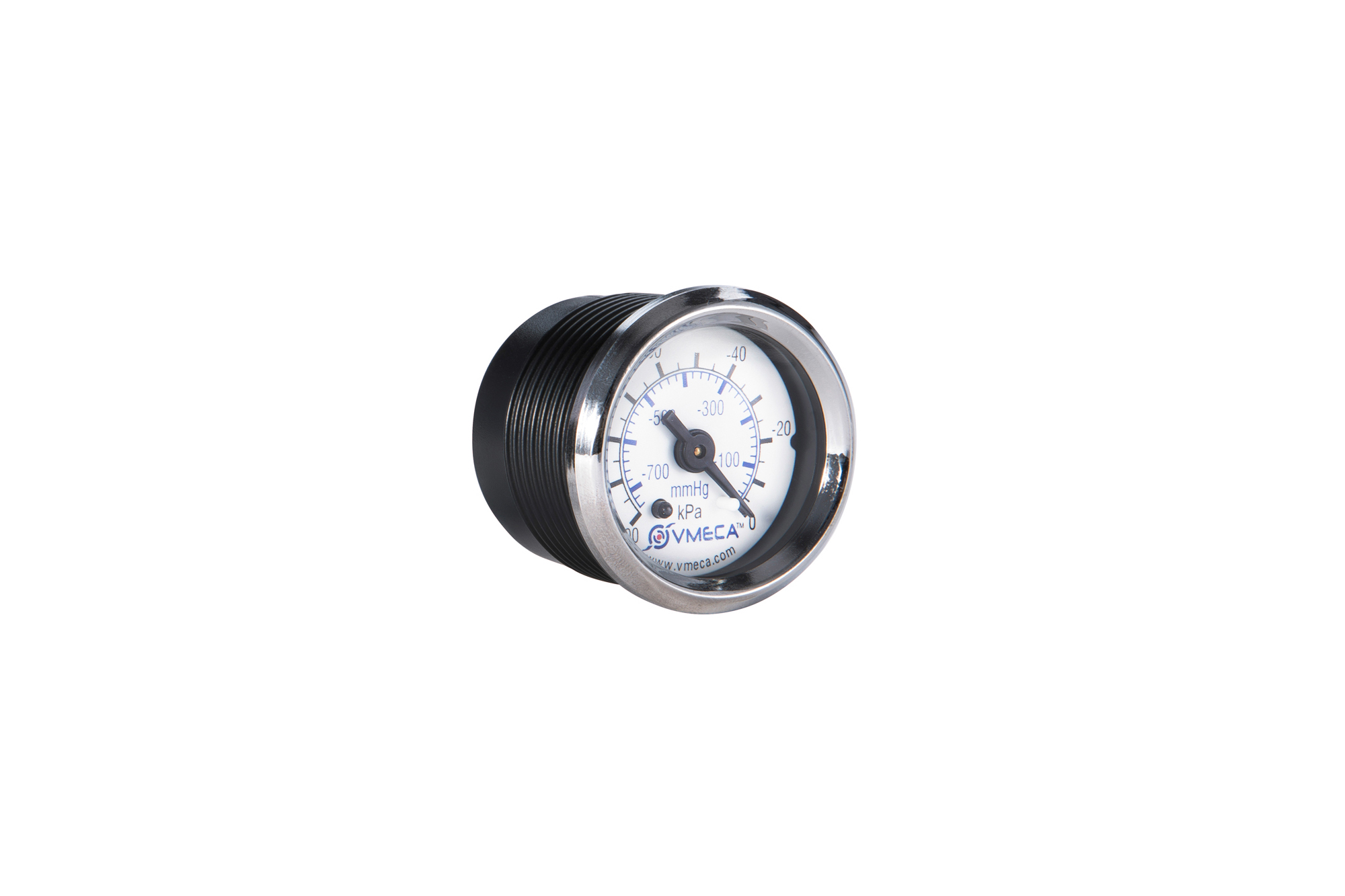

Vacuum Gauge
- Accuracy: ±1.6% Full Scale
- Material: Brass, ABS, PMMA
- No Mounting Nut
- Weight: 52 g
VTG-18
Description
The VMECA vacuum gauge is high quality and long life product. No fixing nut.
- Accuracy: ±1.6% Full Scale
- Material: Brass, ABS, PMMA
- No Mounting Nut
- Weight: 52 g
Build a Model #
Basic Model
| Part Number | Description |
| VTG-18 | Vacuum gauge, Dial type, No mounting nut |
Specifications
General Specifications
| Part Number | VTG-18 |
| Connection | G1/8″ male & M5 female |
| Accuracy | ±1.6% Full Scale |
| Pressure Range | -100 ~ 0 kPa |
| Temperature Range | -40 ~ 60℃ |
| Material | Brass, ABS, PMMA |
| Weight | 52 g |
Dimensions
| VTG-18: |
| Unit: mm |
Order Numbers
VTG-18 Vacuum Gauge
| Part Number | Description |
| VTG-18 | Vacuum gauge, Dial type, No mounting nut |
Downloads
Catalog & CAD files| CAD 2D File | |
| VTG-18 |
|
|---|---|
| CAD 3D File | |
| VTG-18 |
|
| Catalog | |
| VTG-18 |
|
