Smart Sensor Unit (SSU)
- control up to 8 Magic Grippers with a single sensor unit
- 4 different signal function mode
- 1 cable – Input/ output connector: M8 X 6 pin
Smart Sensor Unit (SSU)
Description
Smart Sensor Unit (SSU) is specially designed for Magic Grippers. Smart Sensor Unit can control up to eight (8) Magic Grippers (vacuum connections) with a single sensor unit.
With 4 different signal function mode on Smart Sensor Unit, can select the optimized switch mode according to the application.
- Can control up to eight (8) Magic Grippers with a single sensor unit
- Four (4) different signal function mode (: Mode1, 2, 3 & 4)
- Easily recognizes an error or damage of Magic Grippers & suction cups
- Two (2) output signal (Output 1 & output 2)
- Set pressure range: 0 ~ -100 kPa
- NPN or PNP type available
- One (1) cable – Input/ output connector: M8 X 6 pin
- Group (A), Group (B) settings allow for group or simultaneous control
Build an Order #
1. Smart Sensor Unit (Switch port & mode type)
| Symbol | Description |
| SSU041 | Smart Sensor Unit (SSU), 4EA switch sensor ports, Normal model |
| SSU061 | Smart Sensor Unit (SSU), 6EA switch sensor ports, Normal model |
| SSU081 | Smart Sensor Unit (SSU), 8EA switch sensor ports, Normal model |
| SSU042 | Smart Sensor Unit (SSU), 4EA switch sensor ports, Group mode |
| SSU062 | Smart Sensor Unit (SSU), 6EA switch sensor ports, Group mode |
| SSU082 | Smart Sensor Unit (SSU), 8EA switch sensor ports, Group mode |
2. Output Type
| Symbol | Description |
| N | NPN type – signal out |
| P | PNP type – signal out |
3. Mount Bracket
| Symbol | Description |
| (no mark) | without mount bracket |
| 1 | with mount bracket (2x M6/ M8 Bolt Set Incl.) |
Dimensions

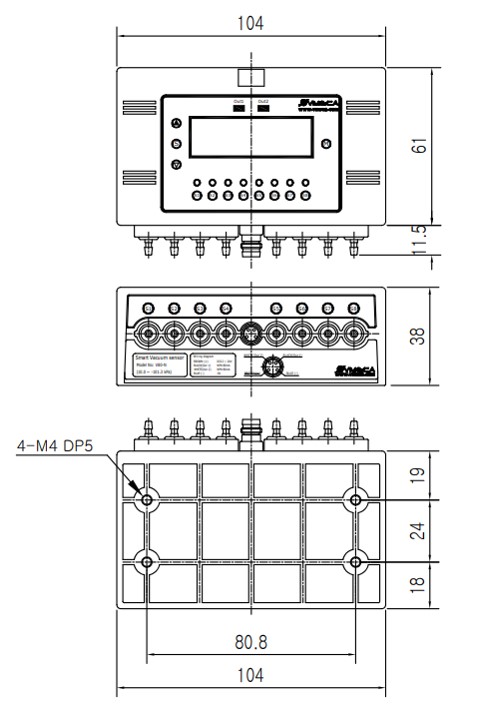

> SSU – without Mount Bracket

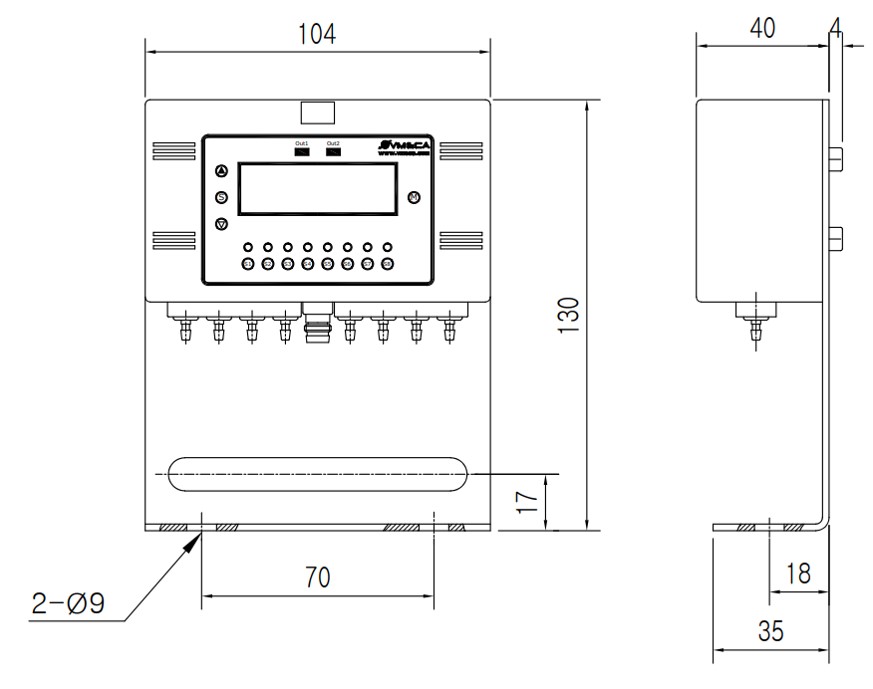

> SSU – with Mount Bracket
> Wire Connections

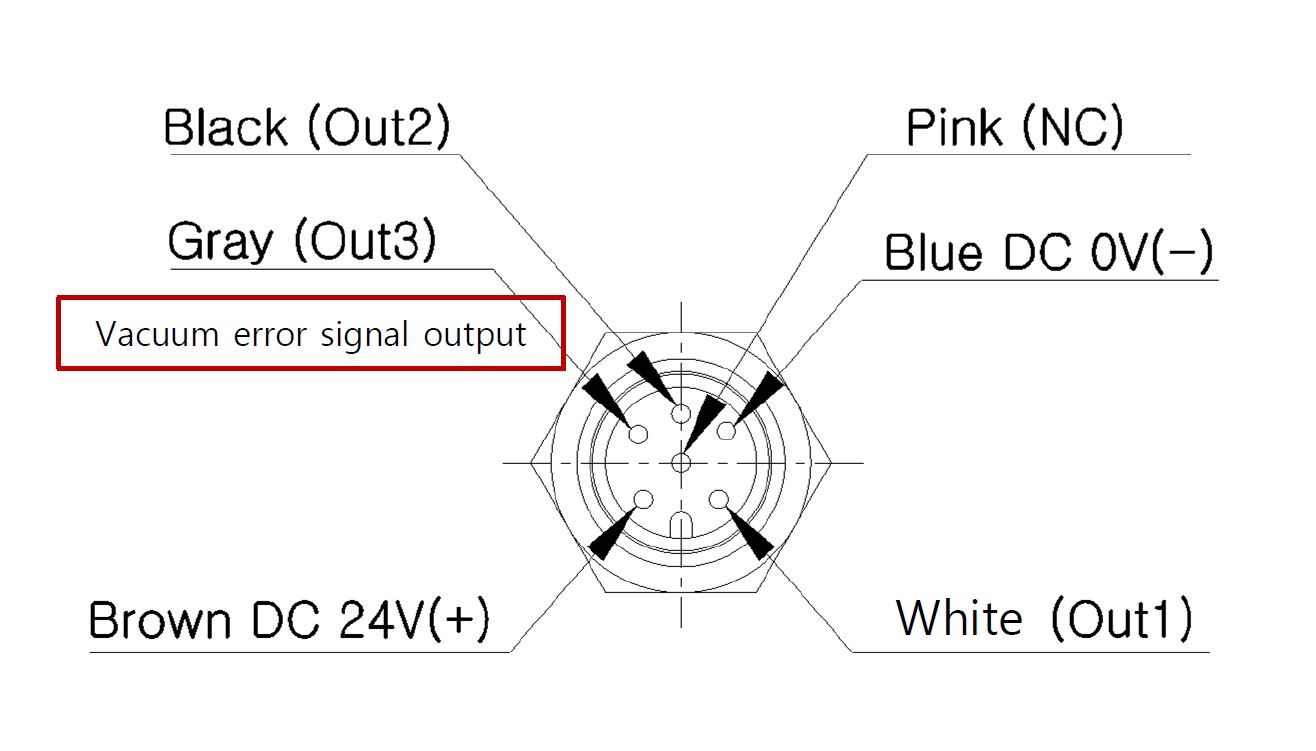

[Normal Mode]

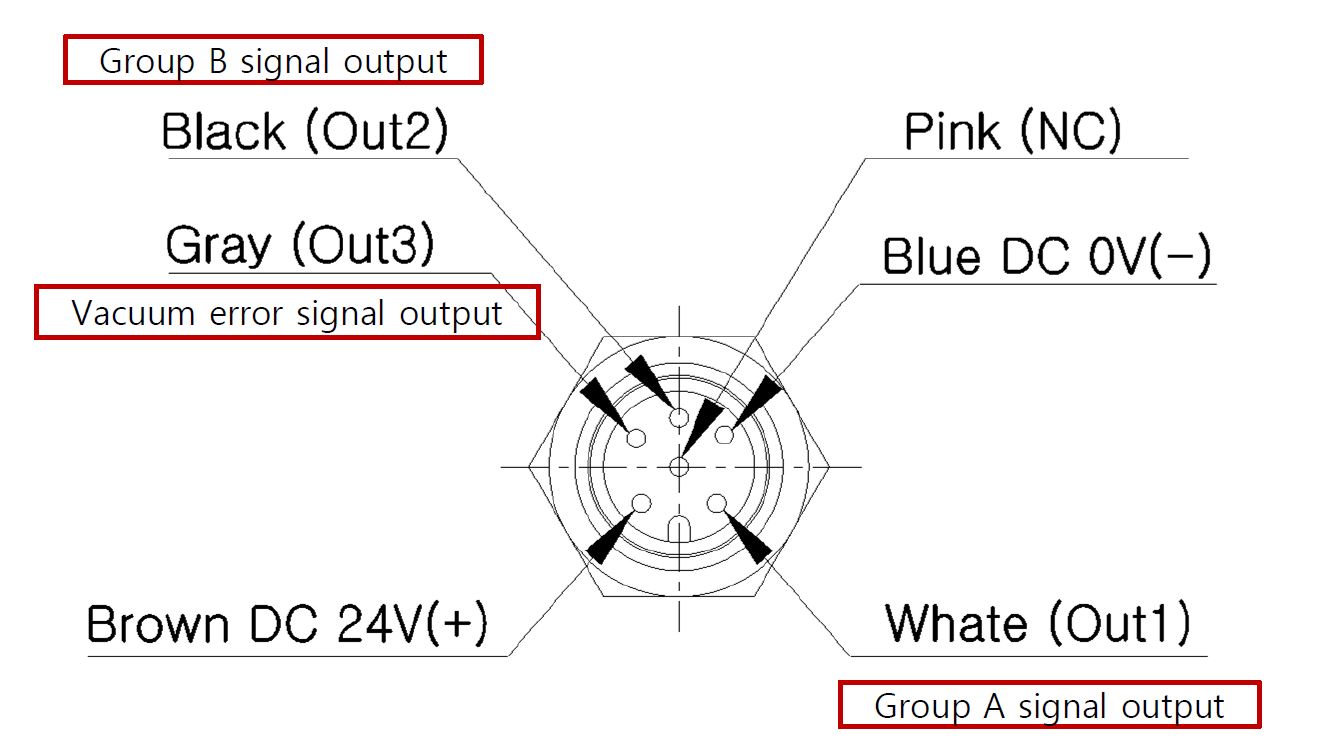

[Group Mode]
Downloads
Catalog & CAD files| CAD 2D File | |
| SSU04 |
|
|---|---|
| SSU06 |
|
| SSU08 |
|
| CAD 3D File | |
| SSU04 |
|
| SSU06 |
|
| SSU08 |
|
