MC10D

MC10D

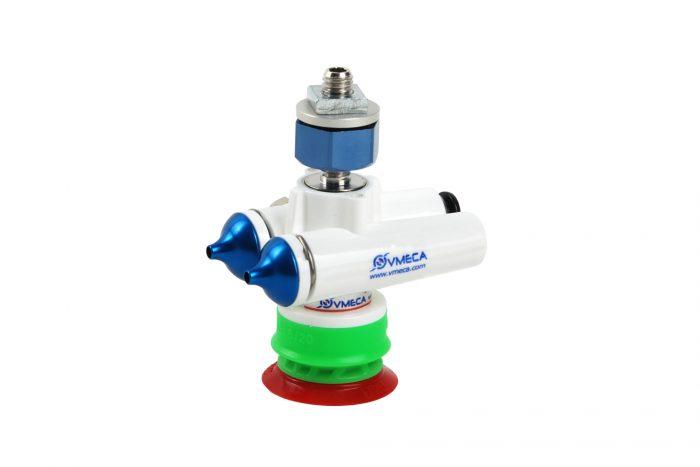

Magic Gripper

SKU: MC10D Category:

Description

The Magic Grippers are a general purpose, all-in-one vacuum system that covers most applications. The Magic Gripper has eliminated the need to purchase separate fittings, connection hoses, filters, and suction cups as they come as a one-piece standard. The ultra-lightweight and compact design allows for easy mounting options. Easy to use, and no tools required when replacing spare parts. A variety of sealing lip options allow for the Magic Gripper to grasp all different kinds of objects.

Build an Order #


1. Basic Model

Symbol Description
MC10 Magic gripper, MC10 series, Micro 2-stage cartridge

2. Body Type

Symbol Description
D Dual vacuum cartridges



3. Mounting Type

Symbol Description
X No mounting bracket
M Direct mount
P Aluminum profile mount



4. Sealing Material

Symbol Description
N NBR
E EPDM
V Viton

5. Top Bellows

Symbol Description
1B20 20 mm, 1-fold top bellows ☛ Only with MC10
1B40 40 mm, 1-fold top bellows ☛ Only with MC10, MC20, MC25
2B20 20 mm, 2-fold top bellows ☛ Only with MC10
2B40 40 mm, 2-fold top bellows ☛ Only with MC10, MC20, MC25



6. Vacuum Filter

Symbol Description
X No vacuum filter
F Vacuum filter, 200-mesh



7. Suction Lip

1) X-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
X25 X-type Lip, 25 mm O
X30 X-type Lip, 30 mm O
X45 X-type Lip, 45 mm   O
X55 X-type Lip, 55 mm   O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
PU Polyurethane, 60° Hardness Translucent Orange
3) Stopper
Symbol Description
A A-type
B B-type
C C-type
D D-type



2) U-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
U25 U-type Lip, 25 mm O
U30 U-type Lip, 30 mm O
U45 U-type Lip, 45 mm   O
U55 U-type Lip, 55 mm   O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
PU Polyurethane, 60° Hardness Translucent Orange
3) Stopper
Symbol Description
B B-type
C C-type
D D-type



3) P-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
P15 P-type Lip, 15 mm O
P17 P-type Lip, 17 mm O
P20 P-type Lip, 20 mm O
P27 P-type Lip, 27mm O
P32 P-type Lip, 32 mm O
P48 P-type Lip, 48 mm   O
P60 P-type Lip, 60 mm   O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type



4) F-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
F25 F-type Lip, 25 mm O
F30 F-type Lip, 30 mm O
F45 F-type Lip, 45 mm   O
F55 F-type Lip, 55 mm   O
2) Lip Material
Symbol Description Color
PU Polyurethane, 60° Hardness Translucent Orange
3) Stopper
Symbol Description
B B-type
C C-type
D D-type



5) DD-type Suction Lip (Double Lips)

1) Lip Size Bellows Size
Symbol Description Ø40
DD4030 DD-type Lip, Double lip, 30 mm & 41 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type

6) MBU-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20
MBU17 MBU-type Lip, 17 mm O
MBU23 MBU-type Lip, 23 mm O
MBU27 MBU-type Lip, 27 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type



7) MD-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20
MD22 MD-type Lip, 22 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type



8) S-type Suction Lip (Sponge Foam)

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
S30 S-type Lip, 30 mm O
S50 S-type Lip, 50 mm   O
2) Lip Material
Symbol Description Color
E EPDM, 15° Hardness Black
3) Stopper
Symbol Description
F F-type



9) MU-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø40
MU45 MU-type Lip, 45 mm O
MU55 MU-type Lip, 55 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
G G-type



10) MF-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø40
MF45 MF-type Lip, 45 mm O
MF55 MF-type Lip, 55 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
G G-type

Specifications

1. General Specifications

Max Vacuum Level -83 kPa
Open Vacuum Flow 23 Nl/min
Feed Pressure 1.1 ~ 2.2 bar (Max 4 bar)
Air Consumption 20.3 Nl/min @ 2.2 bar
Temperature -20 ~ 80 ℃
Weight 24.6 g

2. Vacuum  Flow

☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.

Max Vacuum Feed Pressure Vacuum Flow (Nl/min) at different vacuum level (-kPa)
-kPa bar 0 10 20 30 40 50 60 70 80 90
83 1.8 20.2 12.6 5.2 4.7 3.9 2.9 1.6 0.5 – –
81 2.2 23 16.6 6.87 5.1 4.3 3.2 1.8 0.8 – –
48 1.1 16.4 8.3 3.8 2.2 1.0 – – – – –

3. Evacuation Time
1) MC10D series with N1B20X

☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.

Feed Pressure Air Consumption Evacuation time in sec per liter to reach different vacuum level (-kPa)
bar Nl/min 10 20 30 40 50 60 70 80 90
1.8 16.4 0.07 0.09 0.10 0.12 0.15 0.19 0.29 0.40 –
2.2 20.3 0.07 0.08 0.10 0.12 0.14 0.18 0.30 0.56 –
1.1 11.3 0.09 0.11 0.13 0.18 0.27 – – – –

2) MC10D series with N2B20X

☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.

Feed Pressure Air Consumption Evacuation time in sec per liter to reach different vacuum level (-kPa)
bar Nl/min 10 20 30 40 50 60 70 80 90
1.8 16.4 0.07 0.09 0.11 0.13 0.16 0.20 0.30 0.44 –
2.2 20.3 0.07 0.09 0.11 0.13 0.15 0.20 0.31 0.57 –
1.1 11.3 0.09 0.12 0.14 0.21 0.30 – – – –

3) MC10D series with N1B40X

☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.

Feed Pressure Air Consumption Evacuation time in sec per liter to reach different vacuum level (-kPa)
bar Nl/min 10 20 30 40 50 60 70 80 90
1.8 16.4 0.10 0.14 0.18 0.23 0.26 0.31 0.40 0.66 –
2.2 20.3 0.09 0.13 0.17 0.22 0.25 0.30 0.41 0.72 –
1.1 11.3 0.12 0.17 0.23 0.30 0.41 – – – –

4) MC10D series with N2B40X

☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.

Feed Pressure Air Consumption Evacuation time in sec per liter to reach different vacuum level (-kPa)
bar Nl/min 10 20 30 40 50 60 70 80 90
1.8 16.4 0.11 0.16 0.21 0.26 0.31 0.37 0.50 0.80 –
2.2 20.3 0.10 0.15 0.20 0.24 0.28 0.35 0.52 0.86 –
1.1 11.3 0.14 0.20 0.28 0.36 0.48 – – – –

Dimensions

Dimensions

MC10D: Without mounting option

Model ØA B C ØD E F G
MC10DX-N1B20F 23 11.5 25.7 4 35.2 53.3 M10xP1.0 / DP 8
MC10DX-N1B40F 41 21.4 25.7 4 35.2 53.3 M10xP1.0 / DP 8
MC10DX-N2B20F 23 19.5 25.7 4 35.2 53.3 M10xP1.0 / DP 8
MC10DX-N2B40F 41 31.4 25.7 4 35.2 53.3 M10xP1.0 / DP 8



MC10D: Direct mounting option

Model ØA B C ØD E F G H
MC10DM-N1B20F 23 11.5 25.7 4 14 35.2 53.9 M6xP1.0
MC10DM-N1B40F 41 21.4 25.7 4 14 35.2 53.9 M6xP1.0
MC10DM-N2B20F 23 19.5 25.7 4 14 35.2 53.9 M6xP1.0
MC10DM-N2B40F 41 31.4 25.7 4 14 35.2 53.9 M6xP1.0



MC10D: Aluminum profile mounting option

Model ØA B C ØD E F G H
MC10DP-N1B20F 23 11.5 25.7 4 22 35.2 53.9 M6xP1.0
MC10DP-N1B40F 41 21.4 25.7 4 22 35.2 53.9 M6xP1.0
MC10DP-N2B20F 23 19.5 25.7 4 22 35.2 53.9 M6xP1.0
MC10DP-N2B40F 41 31.4 25.7 4 22 35.2 53.9 M6xP1.0



Order Numbers

Spare Parts

Part Number Description
Suction Lip Refer to build an order number.
MC10A pump Refer to build an order number.
REQUEST A QUOTE

Downloads

Catalog & CAD files
Catalog
Magic Gripper MC10D
