SM05
Build an Order #
1. Basic Model
| Symbol | Description |

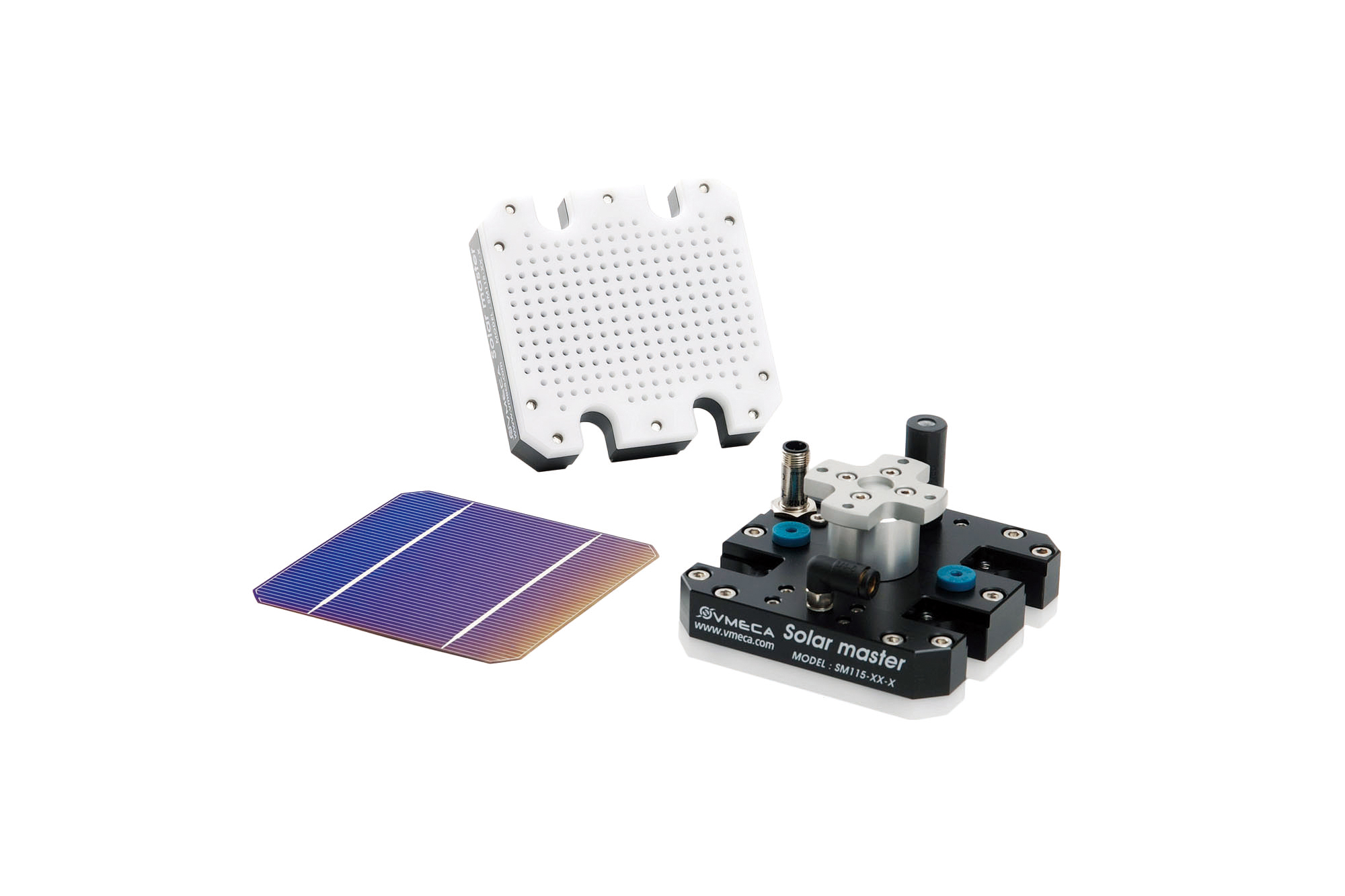

| SM05 | Solar master SM05, 125x125mm |
2. Efficiency Valve
| Symbol | Description |
| Blank | No efficiency valve |
| EV | Efficiency valve |
3. Point Support
| Symbol | Description |
| Blank | No point support |
| P | Point support |
4. Pad Material
| Symbol | Description |
| A | Aluminum |
| PK | PEEK |
| PO | POM |
Specifications
1. Fitting Force
| Model | Lifting Force (N) at different ait inlet pressure | |||
| 1.7 bar | 2.2 bar | 3.14 bar | 4 bar | |
| SM05 | 113 | 120 | 132 | 147 |
2. Air Consumption
| Model | Air Consumption (Nl/min) at different ait inlet pressure | |||
| 1.7 bar | 2.2 bar | 3.14 bar | 4 bar | |
| SM05 | 34 | 40 | 52 | 64 |
Dimensions
| SM05 series: |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Supply Port, G1/8″ |
| 2 | Vacuum Port |
| 3 | Exhaust Port |
Order Numbers
Solar Master, SM05 series
| Part Number | Description |
| SM05-EV-A | Solar Master, SM05, Efficiency Valve, Aluminum pad |
| SM05-EV-PK | Solar Master, SM05, Efficiency Valve, PEEK pad |
| SM05-EV-PO | Solar Master, SM05, Efficiency Valve, POM pad |
| SM05-EV-P-A | Solar Master, SM05, Efficiency Valve, Point support, Aluminum pad |
| SM05-EV-P-PK | Solar Master, SM05, Efficiency Valve, Point support, PEEK pad |
| SM05-EV-P-PO | Solar Master, SM05, Efficiency Valve, Point support, POM pad |
Downloads
Catalog & CAD files| CAD 2D File | |
| SM05-Solar Master |
|
|---|---|
| CAD 3D File | |
| SM05-Solar Master |
|
| Catalog | |
| SM05-Solar Master |
|
