VCS102
Beschreibung
Die VCS Pumpe ist mit der VMECA-Vakuumkartuschentechnologie ausgestattet für eine zuverlässige und stabile Leistung selbst bei niedrigem oder schwankendem Druck in der Zuluftleitung. Die VCS Pumpe ist kompakt, da sie zusätzlich zur Vakuumkartusche auch einen Federstößel besitzt, so dass ein Vakuumsystem auf sehr einfache Art und Weise aufgebaut werden kann. Außerdem kann mit dieser Pumpe ein Greifer relativ einfach aufgebaut werden.
Bestellnummer
1. Basic Model
| Symbol | Description |
| VCS102C | VCS vacuum pump, 2-stage micro cartridge, Release check valve |
| VCS102 | VCS vacuum pump, 2-stage micro cartridge, No release check valve |
2. Body Type
| Symbol | Description |
| LM5 | M5 male vacuum port |
| LM507 | M5 male vacuum port, 7 mm level compensator |
| L18F | G1/8 female vacuum port ☛ Only available with VCS102. |
Angaben
1. General Specifications
| Max Vacuum Level | -83 kPa |
| Open Vacuum Flow | 16 Nl/min |
| Feed Pressure | 1.1 ~ 2.2 bar (Max 7 bar) |
| Air Consumption | 10 Nl/min @ 2.2 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight (VCS102-LM507) | 47 g |
2. Vacuum Flow
| Max Vacuum | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 83 | 2.2 | 16 | 11.9 | 5.1 | 2.3 | 1.4 | 1.3 | 0.9 | 0.3 | 0.12 | – |
| 83 | 1.8 | 14.2 | 9.4 | 3.3 | 2.2 | 2 | 1.4 | 0.8 | 0.4 | 0.18 | – |
| 50 | 1.1 | 11.5 | 6.3 | 2.2 | 1.6 | 0.7 | – | – | – | – | – |
3. Evacuation Time
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 2.2 | 10 | 0.34 | 1.6 | 3.9 | 7 | 10.4 | 17.5 | 30.9 | 61.4 | – |
| 1.8 | 8.2 | 0.4 | 1.48 | 4.3 | 6.9 | 9.1 | 15.3 | 27.4 | 50.2 | – |
| 1.1 | 5.9 | 0.68 | 3 | 6.1 | 11.8 | 27.2 | – | – | – | – |
Maße
| VCS102 series: |
| Unit: mm |
|

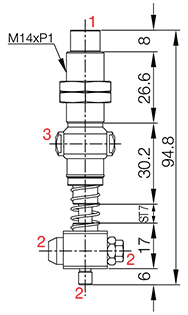

VCS102-LM5 |
VCS102-LM507 |

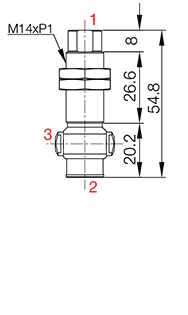

VCS102-L18F | ||
 |
 |
 |
||
| 1: M5 Female 2: M5 Male |
1: M5 Female 2: M5 Male |
1: M5 Female 2: G1/8 Female |
||
| No | Description |
| 1 | Compressed-Air Port |
| 2 | Vacuum Port |
| 3 | Exhaust Port |
Bestellnummern
Basic VCS series Pumps and Spare Parts
| Part Number | Description | Weight |
| VCS102C-LM5 | VCS pump, 2-stg micro cartridge, Rel. check valve, M5 male port | 45 g |
| VCS102-LM5 | VCS pump, 2-stg micro cartridge, M5 male port | 43 g |
| VCS102C-LM507 | VCS pump, 2-stg micro cartridge, Rel. check valve, M5 male port, 7 mm stroke | 46 g |
| VCS102-LM507 | VCS pump, 2-stg micro cartridge, M5 male port, 7 mm stroke | 47 g |
| VCS102-L18F | VCS pump, 2-stg micro cartridge, G1/8 female port | 29 g |
| VC102 | Micro vacuum cartridge, 2-stage | |
