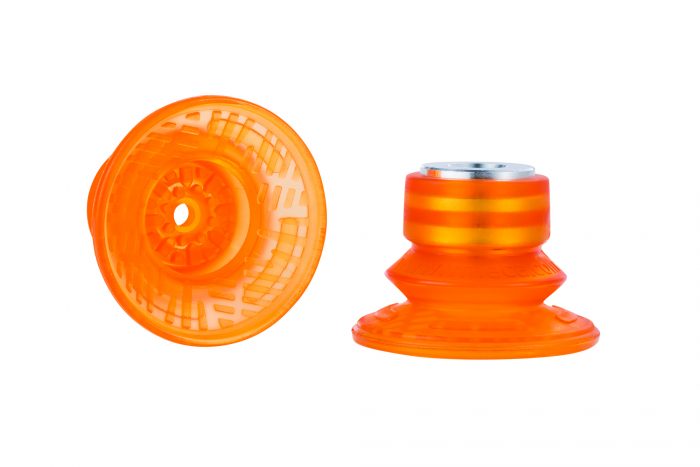

VBF40 series
Beschreibung
Eigenschaften und Stärken:
Einsatzbeispiele:
Bestellnummer
1. Sauger
| Artikelnummer | Beschreibung |
| VBF40-N-18F | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/8 Innengewinde |
| VBF40-S-18F | Large-lip bellows cup, 40 mm, Silikon, G1/8 Innengewinde |
| VBF40-PU-18F | Large-lip bellows cup, 40 mm, Polyurethan, G1/8 Innengewinde |
| VBF40-N-14F | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/4 Innengewinde |
| VBF40-S-14F | Large-lip bellows cup, 40 mm, Silikon, G1/4 Innengewinde |
| VBF40-PU-14F | Large-lip bellows cup, 40 mm, Polyurethan, G1/4 Innengewinde |
| VBF40-N-14M | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/4 Außengewinde |
| VBF40-S-14M | Large-lip bellows cup, 40 mm, Silikon, G1/4 Außengewinde |
| VBF40-PU-14M | Large-lip bellows cup, 40 mm, Polyurethan, G1/4 Außengewinde |
| VBF40-N-38F | Large-lip bellows cup, 40 mm, Nitril (NBR), G3/8 Innengewinde |
| VBF40-S-38F | Large-lip bellows cup, 40 mm, Silikon, G3/8 Innengewinde |
| VBF40-PU-38F | Large-lip bellows cup, 40 mm, Polyurethan, G3/8 Innengewinde |
| VBF40-N-38M | Large-lip bellows cup, 40 mm, Nitril (NBR), G3/8 Außengewinde |
| VBF40-S-38M | Large-lip bellows cup, 40 mm, Silikon, G3/8 Außengewinde |
| VBF40-PU-38M | Large-lip bellows cup, 40 mm, Polyurethan, G3/8 Außengewinde |
| VBF40-N-M10M | Large-lip bellows cup, 40 mm, Nitril(NBR), M10 Außengewinde |
| VBF40-S-M10M | Large-lip bellows cup, 40 mm, Silikon, M10 Außengewinde |
| VBF40-PU-M10M | Large-lip bellows cup, 40 mm, Polyurethan, M10 Außengewinde |
Angaben
1. Empfohlene max. Haltekraft
| Durchmesser | Volumen | Haltekraft (↑), Kg | Haltekraft (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 42 | 7.2 | 2.5 | 9.7 | 12.8 | 1.18 | 6.5 | 11.3 |
2. Gewicht
| Artikelnummer | Beschreibung | Gewicht (g) |
| VBF40-N-18F | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/8 Innengewinde | 17.7 |
| VBF40-S-18F | Large-lip bellows cup, 40 mm, Silikon, G1/8 Innengewinde | 16.4 |
| VBF40-PU-18F | Large-lip bellows cup, 40 mm, Polyurethan, G1/8 Innengewinde | 17.9 |
| VBF40-N-14F | Large-lip bellows cup, 40 mm, Nitrile (NBR), G1/4 Innengewinde | 15.6 |
| VBF40-S-14F | Large-lip bellows cup, 40 mm, Silikon, G1/4 Innengewinde | 13.5 |
| VBF40-PU-14F | Large-lip bellows cup, 40 mm, Polyurethan, G1/4 Innengewinde | 14.7 |
| VBF40-N-14M | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/4 Außengewinde | 21.6 |
| VBF40-S-14M | Large-lip bellows cup, 40 mm, Silikon, G1/4 Außengewinde | 20.3 |
| VBF40-PU-14M | Large-lip bellows cup, 40 mm, Polyurethan, G1/4 Außengewinde | 21.8 |
| VBF40-N-38F | Large-lip bellows cup, 40 mm, Nitril (NBR), G3/8 Innengewinde | 25.7 |
| VBF40-S-38F | Large-lip bellows cup, 40 mm, Silikon, G3/8 Innengewinde | 24.4 |
| VBF40-PU-38F | Large-lip bellows cup, 40 mm, Polyurethan, G3/8 Innengewinde | 25.9 |
| VBF40-N-38M | Large-lip bellows cup, 40 mm, Nitril (NBR), G3/8 Außengewinde | 24.1 |
| VBF40-S-38M | Large-lip bellows cup, 40 mm, Silikon, G3/8 Außengewinde | 22.8 |
| VBF40-PU-38M | Large-lip bellows cup, 40 mm, Polyurethan, G3/8 Außengewinde | 24.3 |
| VBF40-N-M10M | Large-lip bellows cup, 40 mm, Nitril(NBR), M10 Außengewinde | 19.0 |
| VBF40-S-M10M | Large-lip bellows cup, 40 mm, Silikon, M10 Außengewinde | 19.2 |
| VBF40-PU-M10M | Large-lip bellows cup, 40 mm, Polyurethan, M10 Außengewinde | 20.6 |

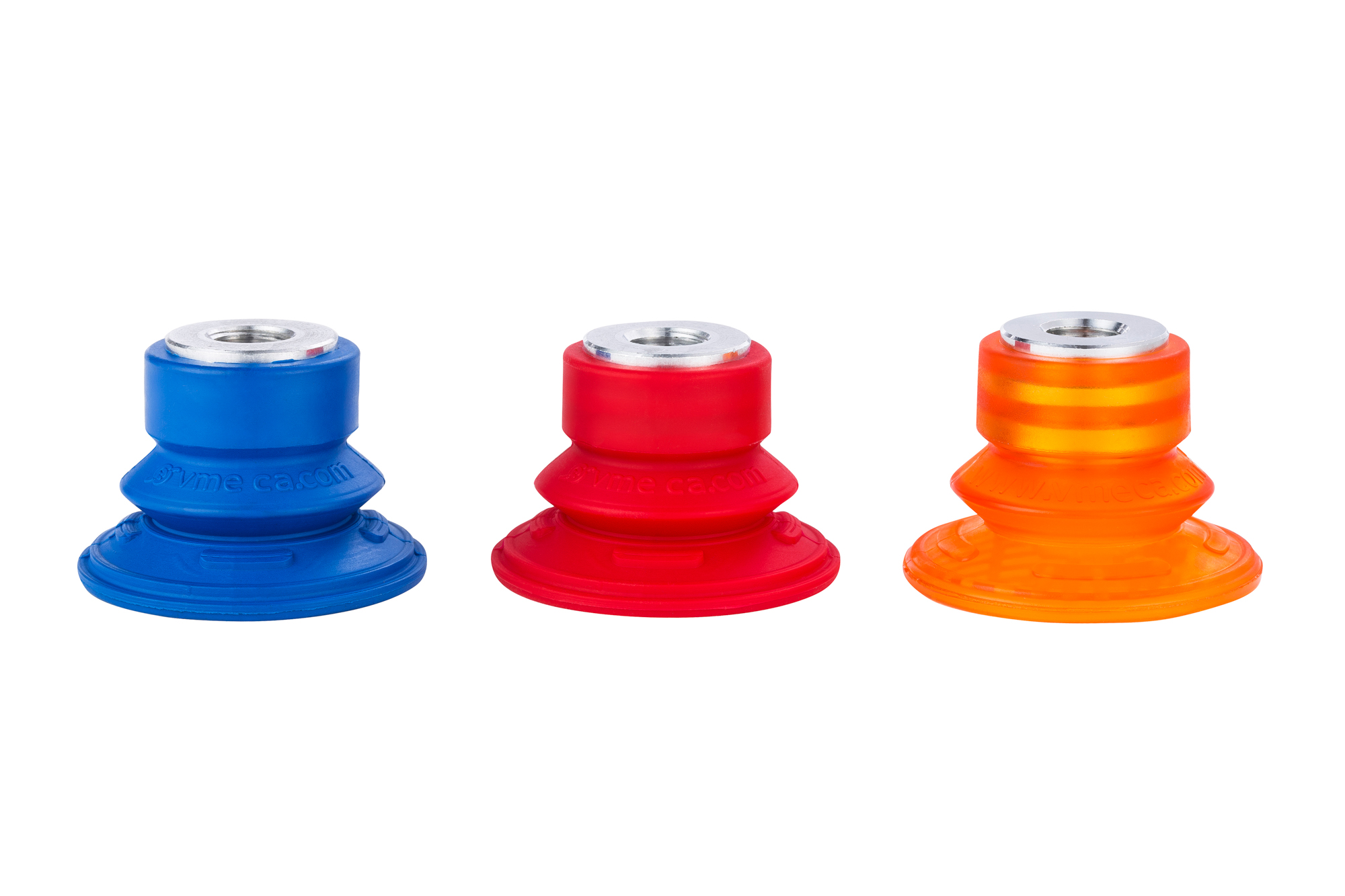

3. Materialangaben
| Material | Shore-Härte (°) | Farbe | Temperatur (℃) |
| Nitril(NBR) | 60 | Schwarz | -20 ~ 110 |
| Silikon | 55 | Rot | -70 ~ 200 |
| Polyurethan | 60 | orange, durchsichtig | 0 ~ 60 |
4. Materialbeständigkeit
| Beschreibung | Verschleißbeständigkeit | Öl | Wetter/Ozon | Alkohol | Säure |
| Nitril(NBR) | Exzellent | Exzellent | Mittelmäßig | Gut | Mittelmäßig |
| Silikon | Gut | Schlecht | Exzellent | Gut | Schlecht |
| Polyurethan | Exzellent | Exzellent | Exzellent | Mittelmäßig | Mittelmäßig |
Maße
VBF40
|
| Unit: mm |
| Legende | A | B | C | D | E | F | G | H | I | J | K |
| Maß | 42 | 29.1 | 29.1 | 31.7 | 10 | 27.6 | 18.5 | 31.6 | 9 | 29.1 | 10 |
Bestellnummern
Bestellnummern
| Artikelnummer | Beschreibung |
| VBF40-N-18F | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/8 Innengewinde |
| VBF40-S-18F | Large-lip bellows cup, 40 mm, Silikon, G1/8 Innengewinde |
| VBF40-PU-18F | Large-lip bellows cup, 40 mm, Polyurethan, G1/8 Innengewinde |
| VBF40-N-14F | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/4 Innengewinde |
| VBF40-S-14F | Large-lip bellows cup, 40 mm, Silikon, G1/4 Innengewinde |
| VBF40-PU-14F | Large-lip bellows cup, 40 mm, Polyurethan, G1/4 Innengewinde |
| VBF40-N-14M | Large-lip bellows cup, 40 mm, Nitril (NBR), G1/4 Außengewinde |
| VBF40-S-14M | Large-lip bellows cup, 40 mm, Silikon, G1/4 Außengewinde |
| VBF40-PU-14M | Large-lip bellows cup, 40 mm, Polyurethan, G1/4 Außengewinde |
| VBF40-N-38F | Large-lip bellows cup, 40 mm, Nitril (NBR), G3/8 Innengewinde |
| VBF40-S-38F | Large-lip bellows cup, 40 mm, Silikon, G3/8 Innengewinde |
| VBF40-PU-38F | Large-lip bellows cup, 40 mm, Polyurethan, G3/8 Innengewinde |
| VBF40-N-38M | Large-lip bellows cup, 40 mm, Nitril (NBR), G3/8 Außengewinde |
| VBF40-S-38M | Large-lip bellows cup, 40 mm, Silikon, G3/8 Außengewinde |
| VBF40-PU-38M | Large-lip bellows cup, 40 mm, Polyurethan, G3/8 Außengewinde |
| VBF40-N-M10M | Large-lip bellows cup, 40 mm, Nitril(NBR), M10 Außengewinde |
| VBF40-S-M10M | Large-lip bellows cup, 40 mm, Silikon, M10 Außengewinde |
| VBF40-PU-M10M | Large-lip bellows cup, 40 mm, Polyurethan, M10 Außengewinde |
