GS252-A
Description

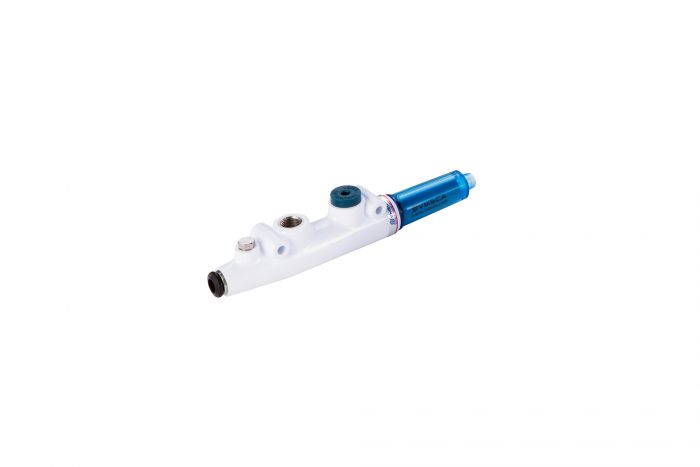

VMECA Green Pumps are excellent for products that are placed in sterile conditions. With its eco-friendly and dust filtering functions, it is perfect for the food industry and alike.
Build a Model #
1. Basic Model
| Symbol | Description |
| GS252 | Green pump, Mini premium 2-stage vacuum cartridge, No vacuum filter |
2. Body Type
| Symbol | Description |
| A | Opaque body |
3. Non-return valve
| Symbol | Description |
| Blank | No non-return valve |
| N | Non-return valve |
4. Sealing Material
| Symbol | Description |
| Blank | NBR sealing material |
| V | Viton sealing material |
| E | EPDM sealing material |
Specifications
1. General Specifications
| Max Vacuum Level | -94 kPa |
| Open Vacuum Flow | 113 Nl/min |
| Feed Pressure | 5 ~ 6 bar (Max 7 bar) |
| Air Consumption | 83.5 Nl/min @ 6 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight | 55 g |
2. Vacuum Flow
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Max Vacuum | Feed Pressure | Vacuum Flow (Nl/min) at different vacuum level (-kPa) | |||||||||
| -kPa | bar | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 94 | 5.5 | 113 | 91 | 69 | 48 | 30 | 26 | 22 | 17 | 11 | 2.8 |
| 93.5 | 6 | 111 | 97 | 76.5 | 54 | 34 | 25 | 21 | 16 | 9.5 | 2.3 |
| 90 | 5 | 112 | 85 | 63 | 43 | 37 | 27 | 22 | 17 | 11 | 3.1 |
3. Evacuation Time
☛ Click on the supply air pressure in the graph legend to show or hide the graph lines.
| Feed Pressure | Air Consumption | Evacuation time in sec per liter to reach different vacuum level (-kPa) | ||||||||
| bar | Nl/min | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| 5.5 | 77 | 0.037 | 0.13 | 0.26 | 0.41 | 0.54 | 0.86 | 1.2 | 1.6 | 5.0 |
| 6 | 83.5 | 0.035 | 0.078 | 0.12 | 0.13 | 0.33 | 0.83 | 1.15 | 1.76 | 5.8 |
| 5 | 70.5 | 0.039 | 0.15 | 0.27 | 0.49 | 0.60 | 0.94 | 2.09 | 2.82 | 4.83 |
Dimensions
| GS252: |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, ∅6mm |
| 2 | Vacuum Port, G1/8″ |
| 2-1 | Vacuum Port, M5 |
| 3 | Exhaust Port |
Order Numbers
1. Basic Vacuum Pump
| Part Number | Description |
| GS252-A | Green pump, Mini premium 2-stage vacuum cartridge, No Vacuum filter, Opaque body |
2. Vacuum Cartridge
| Part Number | Description |
| VC252-G | Mini premium 2-stage vacuum cartridge (for Green pump) |
3. Silencer
| Part Number | Description |
| VTS-M25-252 | Silencer, M25, male |
Downloads
Catalog & CAD files| CAD 2D File | |
| GS252-A |
|
|---|---|
| CAD 3D File | |
| GS252-A |
|
| Catalog | |
| GS252-A |
|
